LAN8720 ETH Board

Ethernet module, 10/100 Ethernet Transceiver LAN8720 onboard

Features

• High-Performance 10/100 Ethernet Physical Layer Transceiver (PHY)
• Supports single 3.3V supply
• Supports the reduced pin count RMII interface
• Supports HP Auto-MDIX
• Onboard chip package: 24-pin QFN (4x4 mm) Lead-Free RoHS Compliant package
• Flexible Power Management Architecture
• Integrated 1.2V regulator
• I/O voltage range: +1.6V to +3.6V

Applications

• Embedded web server

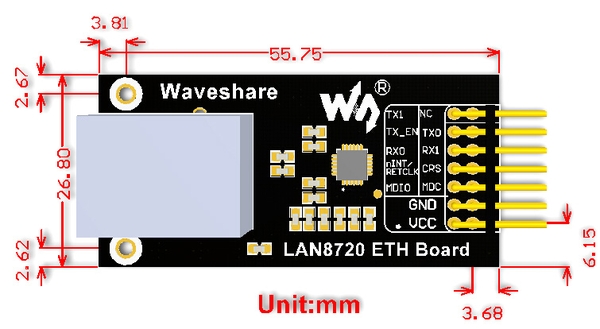

Dimension

Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/LAN8720 ETH Board
