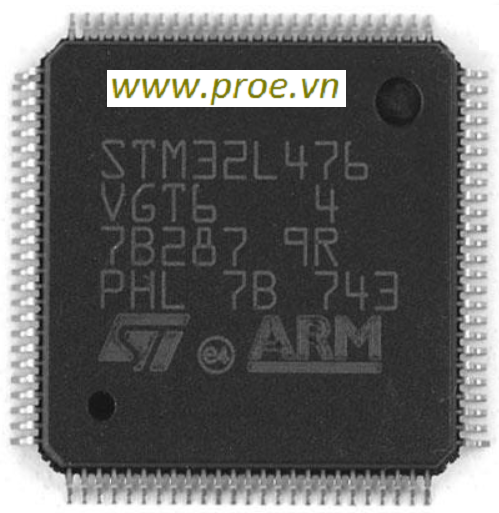

STM32L476VGT6 MCU 32-bit ARM Cortex M4 RISC 1MB Flash 1.8V/2.5V/3.3V 100-Pin LQFP Tray
- Mã sản phẩm: STM32L476VGT6
- Nhà sản xuất: STMicroelectronics
- Website hỗ trợ: https://www.proe.vn
280.000₫
Crucial to any electronic system is this STM32L476VGT6 microcontroller from STMicroelectronics, a mini computer that can be programmed to do whatever you want. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 80 MHz. This is a 32 bit processor. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.71 V, while its maximum is 3.6 V. Its ADC resolution is 12/12/12, while its DAC resolution is 12. Its flash program memory is 1024KB. This device is based on the ARM Cortex M4 core architecture.
Product Technical Specifications
| EU RoHS | Compliant |
| ECCN (US) | 3A991.a.2 |
| Part Status | Active |
| HTS | 8542.31.00.01 |
| Family Name | STM32L |
| Instruction Set Architecture | RISC |
| Device Core | ARM Cortex M4 |
| Core Architecture | ARM |
| Maximum CPU Frequency (MHz) | 80 |
| Maximum Clock Rate (MHz) | 80 |
| Data Bus Width (bit) | 32 |
| Program Memory Type | Flash |
| Program Memory Size | 1MB |
| RAM Size | 128KB |
| Programmability | Yes |
| Interface Type | CAN/I2C/SAI/SPI/UART/USART/USB |
| Number of I/Os | 82 |
| No. of Timers | 14 |
| Timers Resolution (bit) | 16/32 |
| PWM | 2 |
| Number of ADCs | Triple |
| ADC Channels | 16/16/16 |
| ADC Resolution (bit) | 12/12/12 |
| Number of DACs | Single |
| DAC Channels | 2 |
| DAC Resolution (bit) | 12 |
| LCD Segments | 176|320 |
| USART | 3 |
| UART | 2 |
| USB | 1 |
| SPI | 4 |
| I2C | 3 |
| I2S | 0 |
| CAN | 1 |
| Ethernet | 0 |
| Watchdog | 2 |
| Analog Comparators | 2 |
| Parallel Master Port | No |
| Real Time Clock | Yes |
| Special Features | CAN Controller,LCD Controller |
| Minimum Operating Supply Voltage (V) | 1.71 |
| Typical Operating Supply Voltage (V) | 3.3|2.5|1.8 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Supplier Temperature Grade | Industrial |
| Packaging | Tray |
| CECC Qualified | No |
| Pin Count | 100 |
| Supplier Package | LQFP |
| Standard Package Name | QFP |
| Mounting | Surface Mount |
| Package Height | 1.4 |
| Package Length | 14 |
| Package Width | 14 |
| PCB changed | 100 |
| Lead Shape | Gull-wing |
