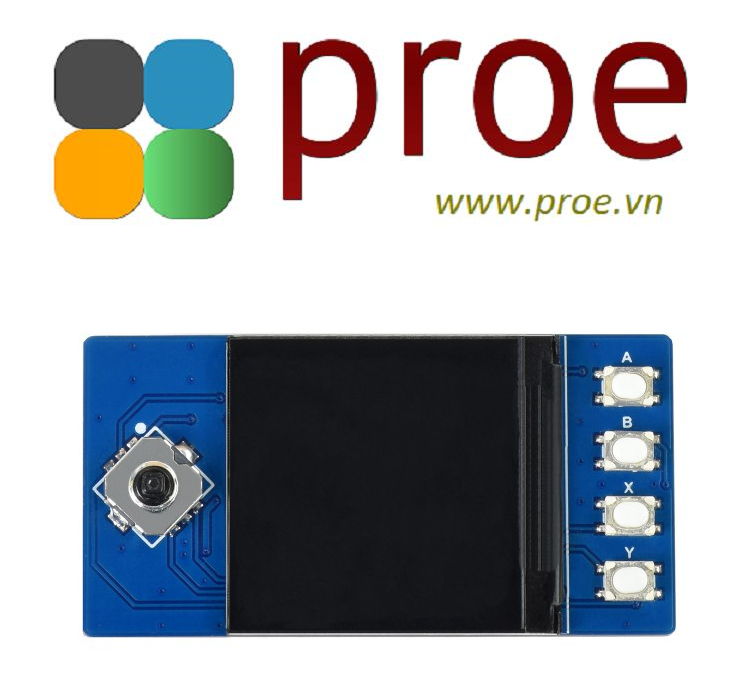

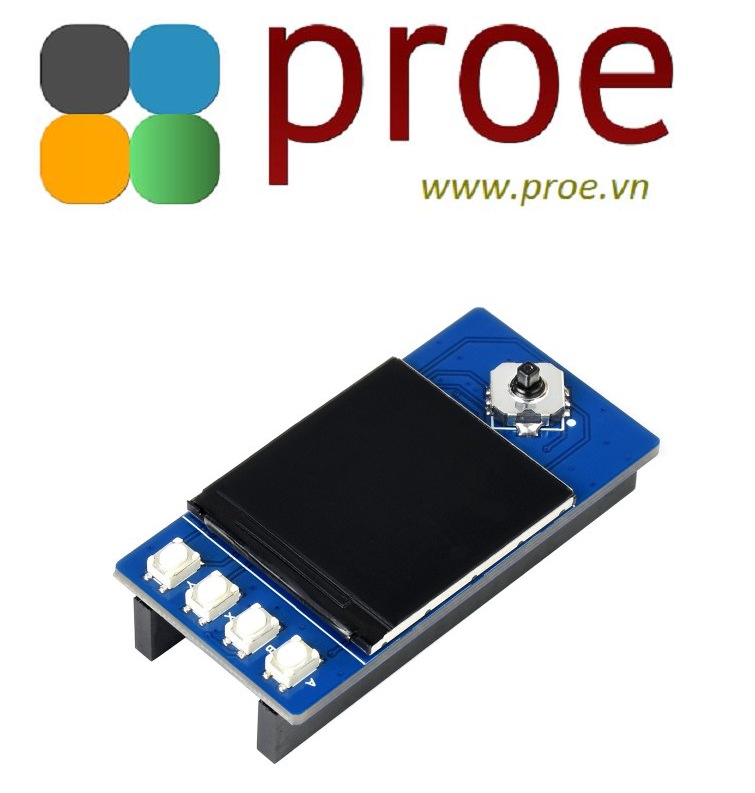

1.3inch LCD Display Module for Raspberry Pi Pico, 65K Colors, 240×240, SPI

PACKAGE CONTENT

Weight: 0.012 kg

1. Pico-LCD-1.3 x1

1

1.3inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 240×240 Pixels, SPI Interface

1.3" LCD Display Module For Pico

Embedded ST7789 Driver, Using SPI Bus

Comes with Raspberry Pi Pico C/C++ and MicroPython Demo

• Size1.3"
•
• Resolution240×240
•
• Display Color65K RGB


• InterfaceSPI
•
• Display PanelIPS
•
• DriverST7789

Features At A Glance

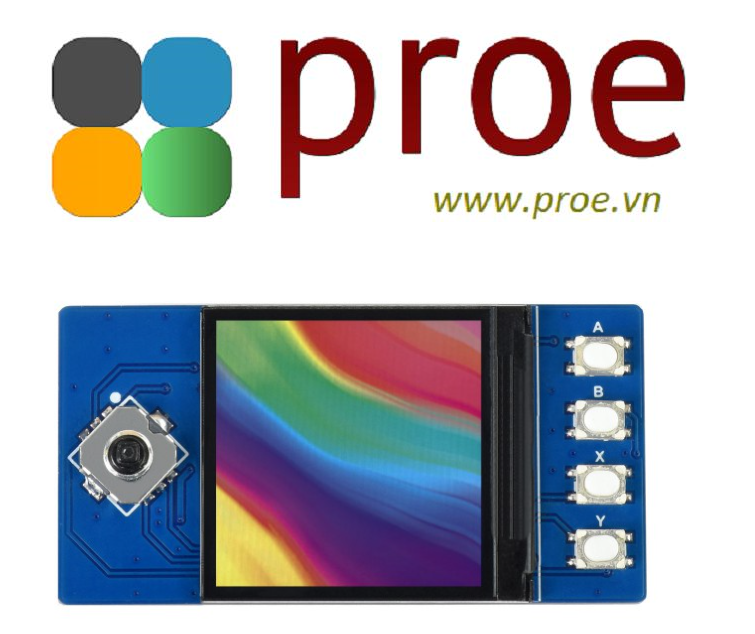

• 240×240 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
• SPI interface, requires minimal IO pins
• 1x joystick and 4x user buttons for easy interacting
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Raspberry Pi Pico Header Compatibility

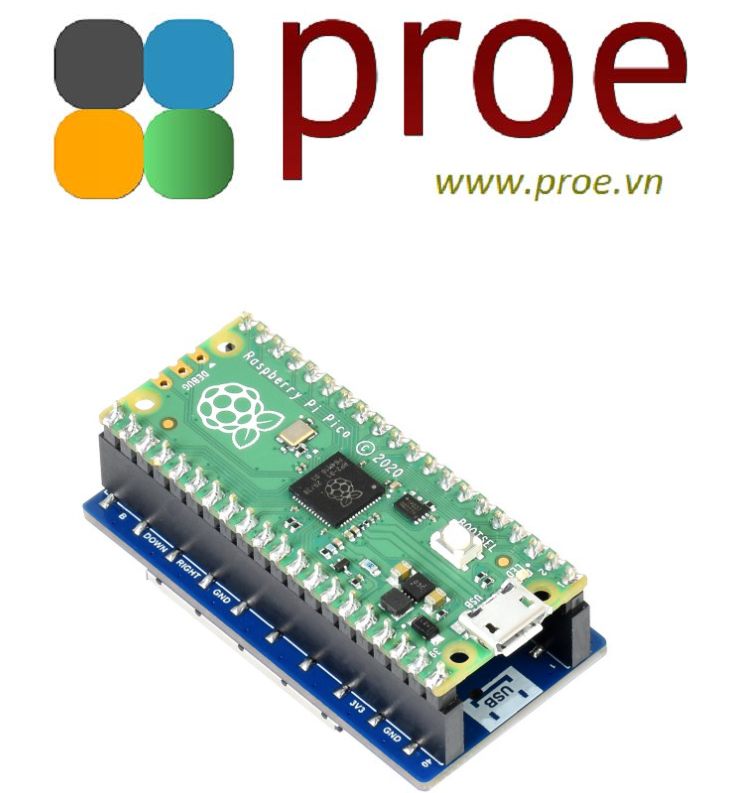

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
1x Joystick And 4x User Buttons For Easy Interacting

Raspberry Pi Pico is NOT included.

Pinout Definition

Outline Dimensions

Resources & Services

WIKI: Pico-LCD-1.3
