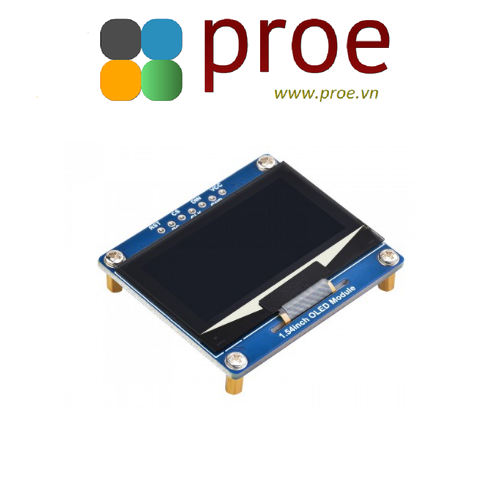

1.54inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication

PACKAGE CONTENT

1. OPTIONS 1.54inch OLED Module x1
2. GH1.25 7PIN cable x1

1

2

DESCRIPTION

1.54inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication

1.54inch OLED Display Module

Embedded SSD1309 Driver Chip, SPI / I2C Communication

Comes with examples for Raspberry Pi, Arduino, STM32, ESP32, Jetson Nano, etc.

•
• Size1.54"
• Resolution128×64
• Display Coloroptions for white/blue


•
•
• Display PanelOLED
• DriverSSD1309
• InterfaceSPI/I2C
•

Version Options

1.54inch OLED Module
white

1.54inch OLED Module (B)
blue

Features At A Glance

• Onboard voltage translator, compatible with 3.3V / 5V MCUs
• Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
• Comes with online development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/Jetson Nano)

Specifications

Control Interface

Hardware Connection

Connecting With Raspberry Pi Via SPI Interface

Connecting With Arduino Board Via SPI Interface

Usage Example

for reference only, the STM32 board is NOT included.

Product Show

Outline Dimensions

Wiki: www.waveshare.com/wiki/1.54inch_OLED_Module
