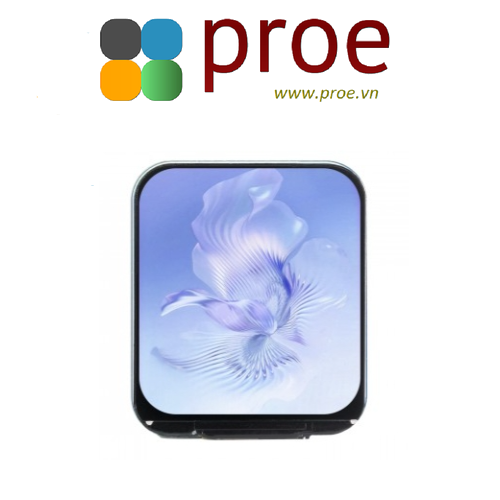

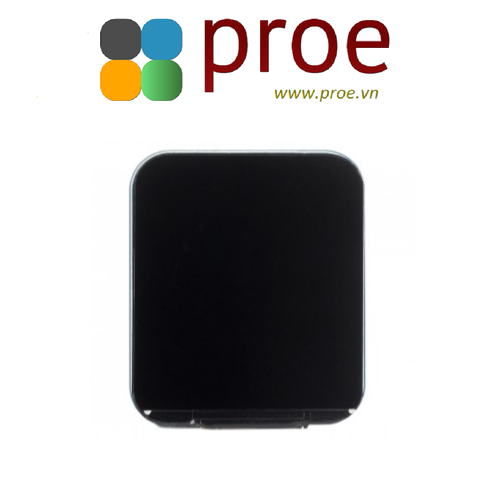

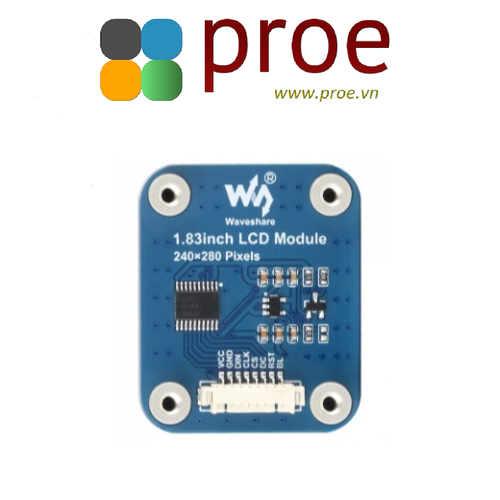

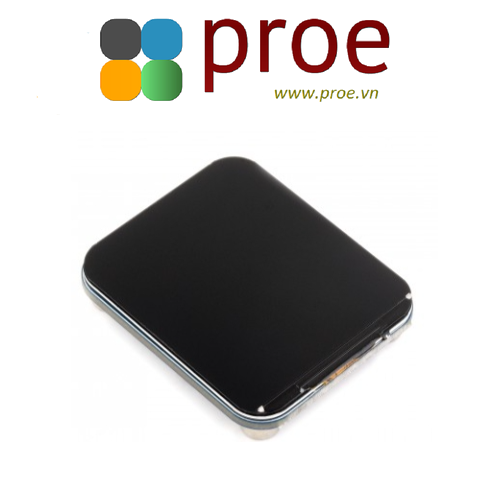

1.83inch LCD Display Module, 240×280 Resolution, SPI Interface, IPS LCD, 65K Colors, Rounded Corners, Micro LCD Display

Wiki: www.waveshare.com/wiki/1.83inch_LCD_Module

PACKAGE CONTENT

Weight: 0.016 kg

1. 1.83inch LCD Module x1

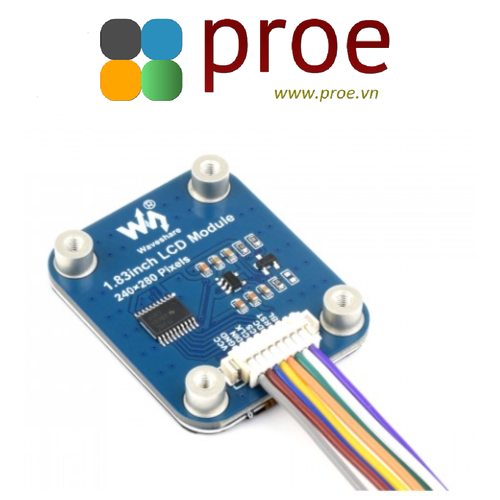

2. GH1.25 8PIN cable ~20cm x1

1

2

DESCRIPTION

1.83inch LCD Display Module, 240×280 Resolution, SPI Interface, IPS LCD, 65K Colors, Rounded Corners, Micro LCD Display

1.83inch LCD Display Module

Embedded NV3030B Driver Chip, Using SPI Interface

Comes with examples for Raspberry Pi, Arduino, STM32, etc.

• Size1.83"
•
• Resolution240×280
•
• Display Color65K


• Display PanelIPS
•
• DriverNV3030B
•
• InterfaceSPI

Features At A Glance

• 240×280 resolution, 65K colors, clear and colorful displaying effect
• SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32
• Comes with online development resources (examples for Raspberry Pi/Arduino/STM32/ESP32, etc.)

Specifications

Onboard Voltage Translator

Compatible With 3.3V / 5V Power Input

Onboard SPI Control Interface

For Use With Controller Boards Like Raspberry Pi / Arduino / STM32

Hardware Connection

Connecting with Raspberry Pi

Connecting with Arduino board

Connecting with STM32

Usage Example

Outline Dimensions

Resources & Services
