10.1-DSI-TOUCH-A

Wiki: www.waveshare.com/wiki/10.1-DSI-TOUCH-A

Weight: 0.493 kg

1. 10.1-DSI-TOUCH-A ×1
2. MIPI-DSI-Cable-12cm x1
3. MX 1.25 2PIN to 2.54 3PIN cable x1
4. FFC 22PIN cable ~200mm (opposite sides) x2

1

2

3

4

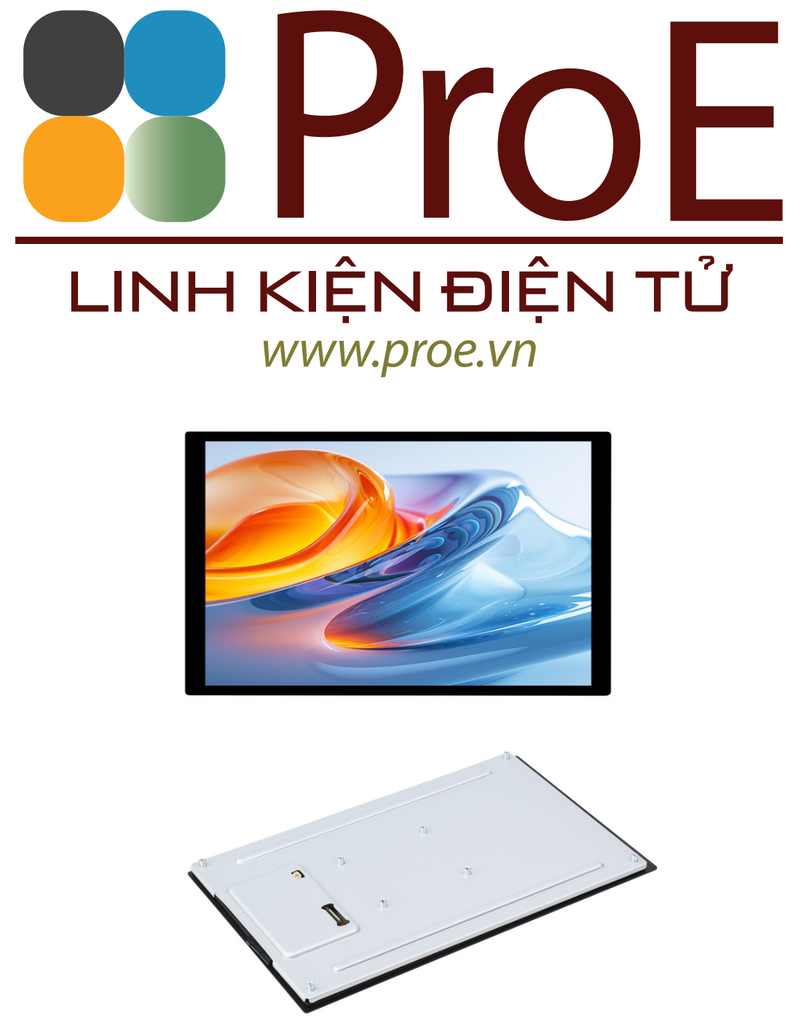

10.1inch DSI Capacitive Touch Display, 800×1280, IPS Panel, Optical Bonding Toughened Glass Panel, 10-Point Touch

10.1″ DSI Capacitive Touch Display

• Size10.1″
• Resolution800×1280
• Display InterfaceDSI
• Display PanelIPS
• Viewing Angle178°
• Touch TypeCapacitive
• Touch Points10-Point
• Touch PanelToughened Glass
• Touch Panel TechOptical Bonding
• Brightness500cd/㎡

The display orientation is portrait by default, with 800×1280 resolution (H×V). Change the software config for landscape display.

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch

RK3576

Supports Buildroot / Debian / Ubuntu / Android, etc. 10-point touch

RK3506

Supports Buildroot / Ubuntu, etc. 10-point touch

ESP32-P4

Supports LVGL GUI programs, up to 10-point touch

connection examples

Connecting to Raspberry Pi 5

Connecting to ESP32-P4-NANO

Connecting to Luckfox-Omni3576 Development Board

* for reference only, the above controller boards or hosts are NOT included

Thinner and more space-saving

Integrates the driver circuit into an FPC cable, the total thickness of the LCD is only 10.8mm

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

10-Point Capacitive Touch

Gently touch, and see what you get, enjoy multi-point UI interaction via flexible operation. Adapting touch function via I2C signal, supports 10-point touch

interface definition

Supports backlight adjustment via software

outline dimensions

Support touch screen customization
