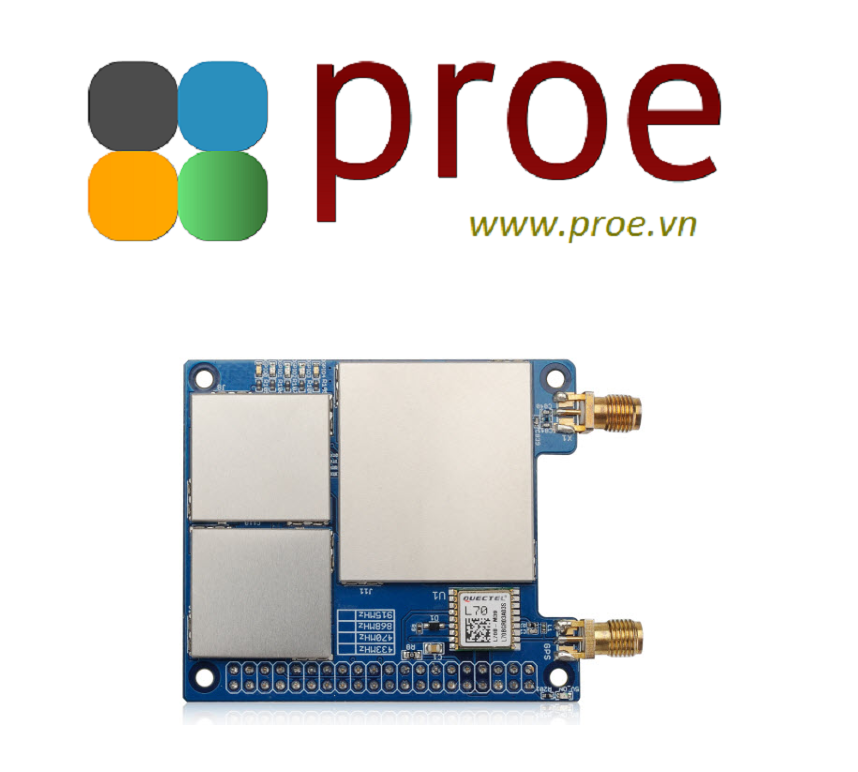

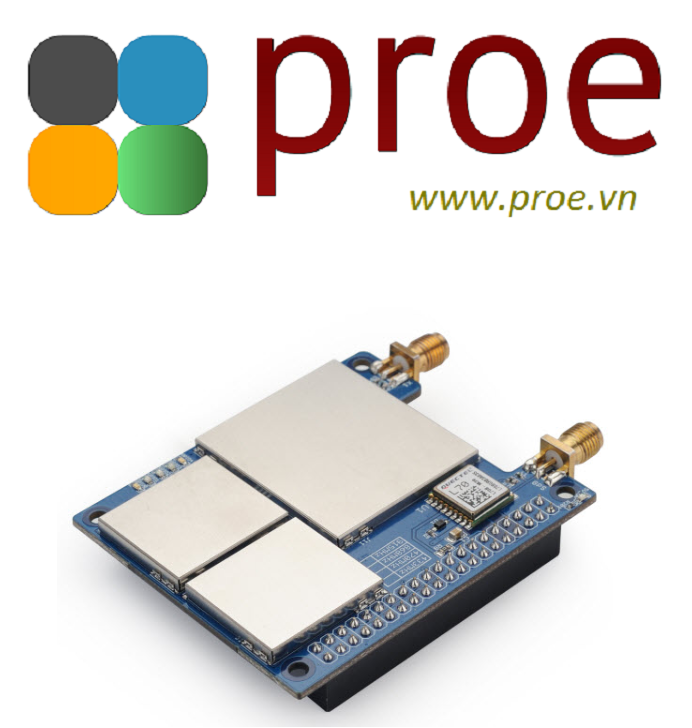

PG1301 10 channels - LoRaWAN GPS Concentrator for Raspberry Pi

The PG1301 is a multi-channel high performance transmitter/receiver designed to simultaneously receive several LoRa packets using random spreading factors on random channels. Its goal is to enable robust connection between a central wireless data concentrator and a massive amount of wireless end-points spread over a very wide range of distances.

The PG1301 is base on SX1301 + 2 x 1257 , it is designed to use with Raspberry Pi to build smart metering fixed networks and Internet of Things applications with up to 5000 nodes per km2 in moderately interfered environment.

PG1301 has built-in GPS module. The GPS module provide timing to SX1301 for accuracy timing and can provide geographical coordinates to RPi for further process.

Features:

• Support Raspberry Pi 3B/3B+/4
• Up to -142.5dBm sensitivity with SX1257 Tx/Rx front-end
• 70 dB CW interferer rejection at 1 MHz offset
• Able to operate with negative SNR, CCR up to 9dB
• Emulates 49x LoRa demodulators and 1x (G)FSK demodulator
• Dual digital TX&RX radio front-end interfaces
• 10 programmable parallel demodulation paths
• Dynamic data-rate (DDR) adaptation
• GPS Module to provide timestamp and location info

Interface:

• SPI interface for LoRa
• UART interface for GPS
• Power Input: 5v, 1A
• 1 x SMA antenna for LoRaWAN
• 1 x SMA antenna for GPS

Datasheet

Manual

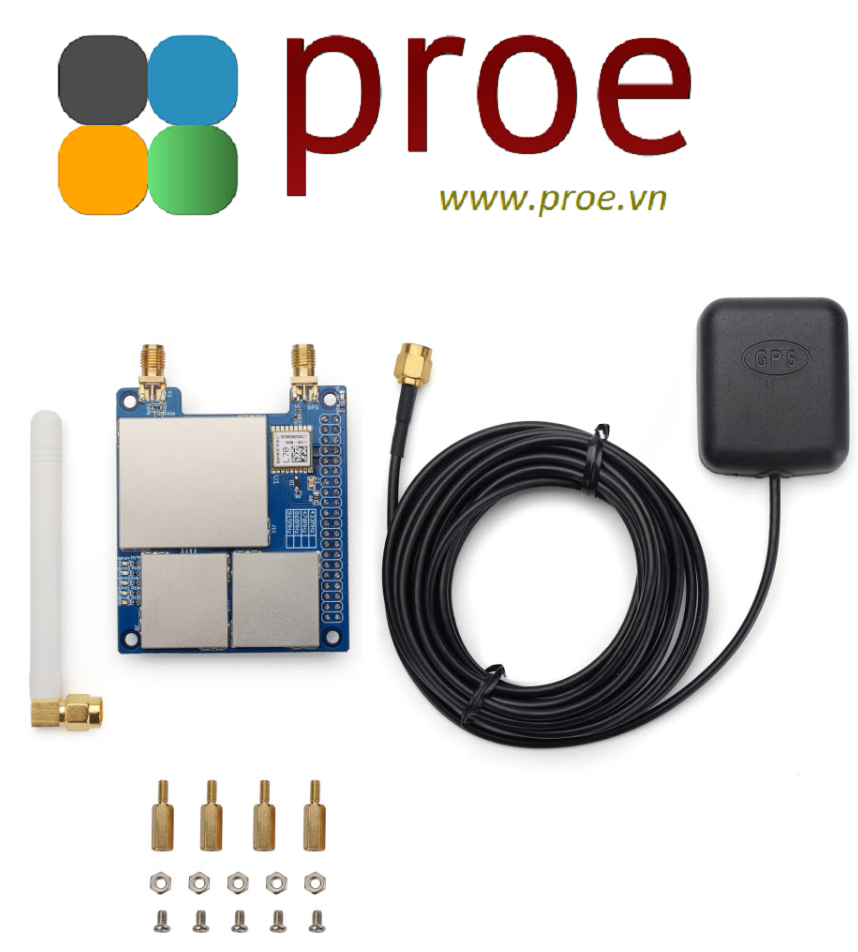

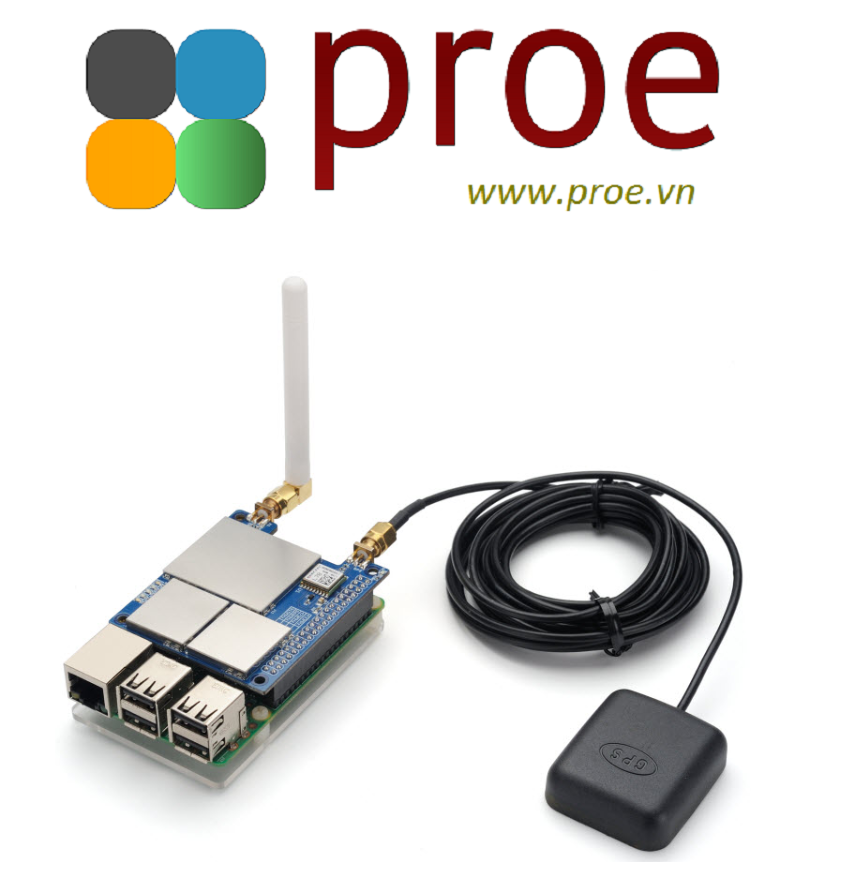

Package Includes:

• 1 x PG1301 LoRaWAN GPS HAT
• 4 x Brass cylinders
• 4 x Screws
• 4 x Nuts
• 1 x Glue Stick Antenna(868 MHZ, 470 MHZ or 915 MHZ depends on order)
• 1 x GPS active antenna

Dimensions and Weight:

Device:

• Size:80 x 60 x 20 mm/pcs
• Weight: 35g

Package:

• Size:150 x 80 x 50 mm/pcs
• Weight: 124g

PG1301-XXX

XXX: Frequency Band

• 470: For Bands: CN470
• 868: For Bands: EU868,IN865
• 915: For Bands: US915,AU915,AS923,KR920
