100X Microscope Lens for Pi
- Mã sản phẩm: 100X Microscope Lens for Pi
- Nhà sản xuất: Raspberry Pi
- Website hỗ trợ: https://www.proe.vn
580.000₫
- PACKAGE CONTENT
-
Weight: 0.202 kg
100X Microscope Lens for Pi ×1
100X Industrial Microscope Lens, C/CS-Mount, Compatible With Raspberry Pi HQ Camera
100X Microscope Lens For Pi
Industrial Microscope Lens With 100X Magnification
Specifications
| OPTICAL MAGNIFICATION | 0.12X ~ 1.8X | ZOOM RATIO | 15:01 |
|---|---|---|---|
| IMAGE FORMAT | 1/2" | MOUNT | C/CS (C-CS adapter included) |
| DISTORTION | < -0.1% | OPERATING TEMPERATURE | -20 ~ +80°C |
| OPERATING DISTANCE | 55 ~ 285mm | OBJECT DISTANCE | 2.4 ~ 36mm |
| OUTLINE DIMENSIONS | Φ39 × 112mm | LENS STRUCTURE | aluminum alloy + 4 groups 5 elements |
100X Magnification Lens
The Details And Tiny Things Are All Clear And Visible
- for reference only, due to the structural limitation of the microscope lens, additional fill light is required for illumination during use
- please refer to the package content for the detailed part list
Application Examples
Mounting To The Camera Module
Suitable For Raspberry Pi HQ Camera
Working With Raspberry Pi
- Raspberry Pi boards and Raspberry Pi HQ Camera in the photos are NOT included
- To use with Raspberry Pi Zero or Zero 2W, you need to buy an additional Raspberry Pi Zero v1.3 Camera Cable

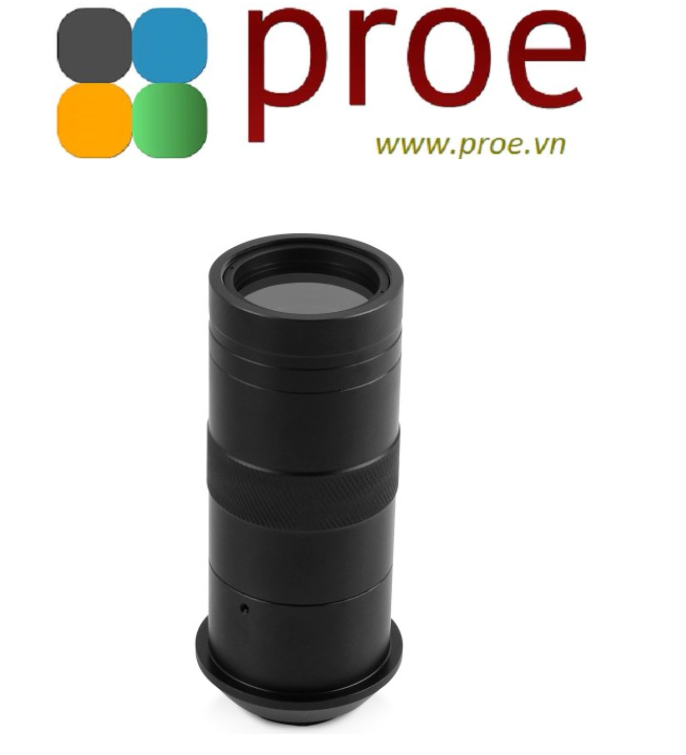

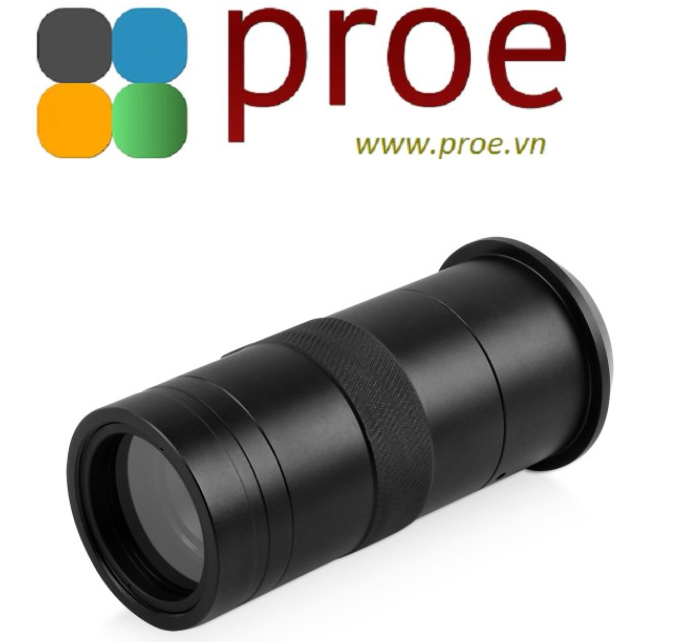

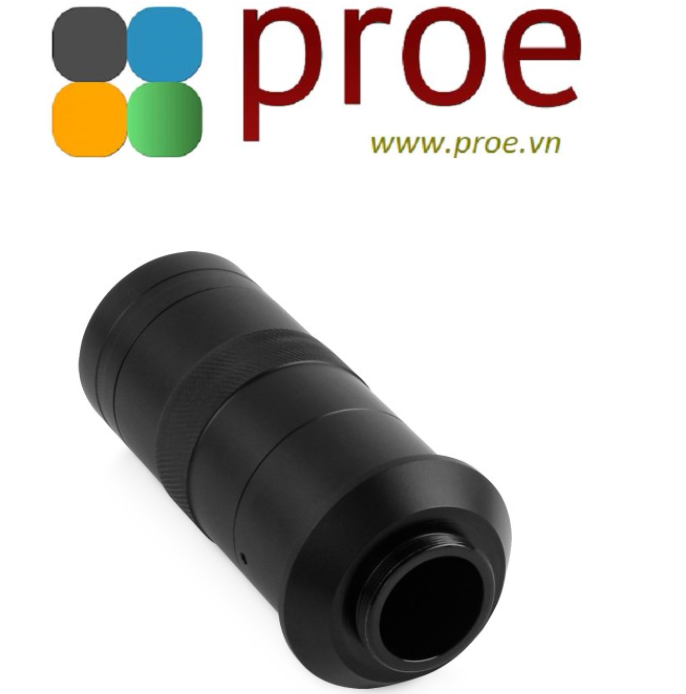

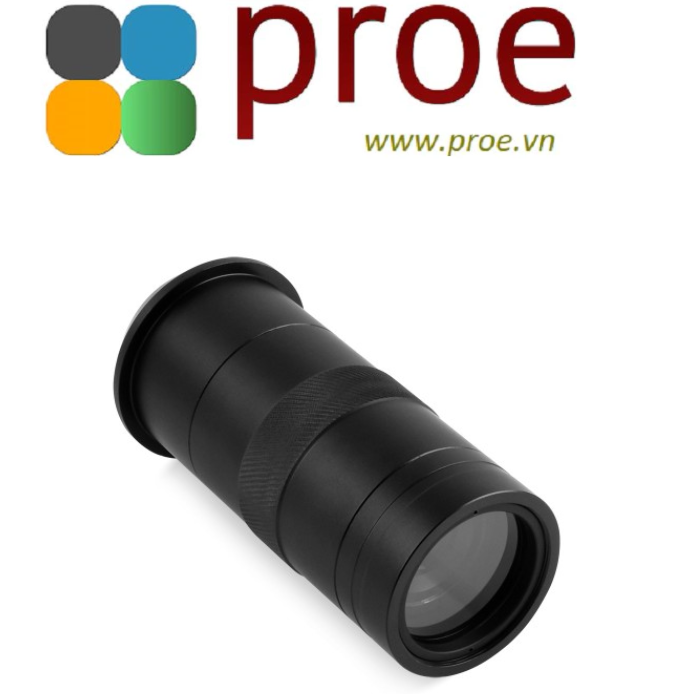

Product Show
Outline Dimensions
