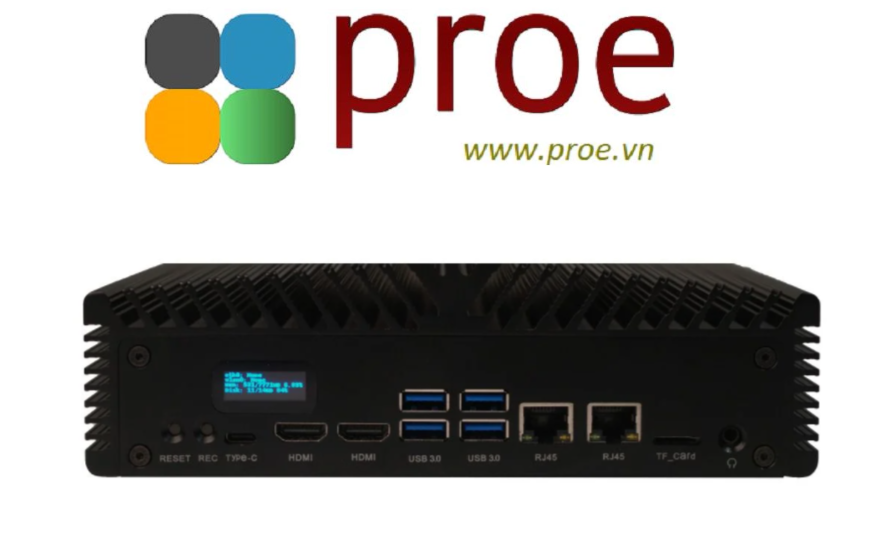

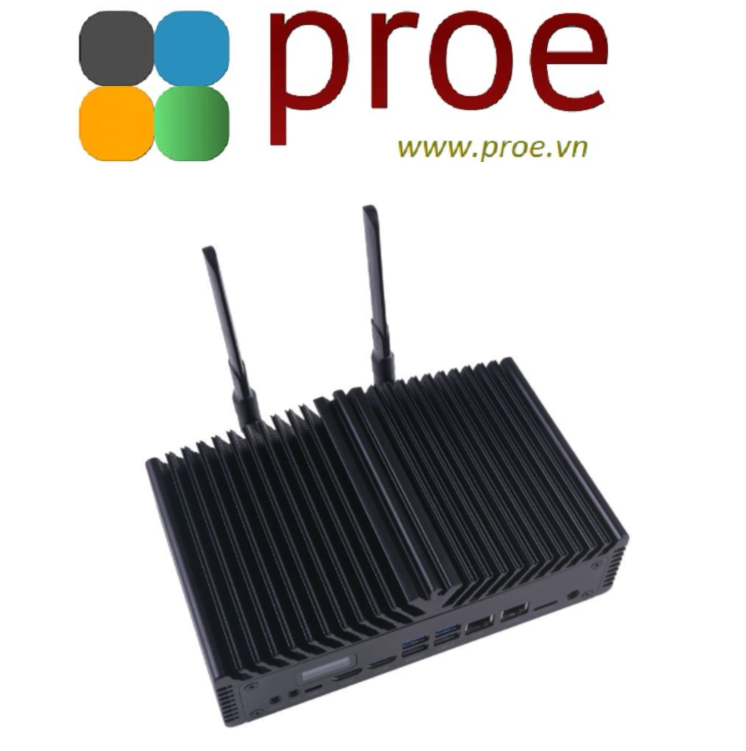

102110641 Jetson SUB Mini PC-Black with Jetson Xavier NX module, OLED screen, Aluminium case with heatsink, 256GB SATA SSD, WiFi, Antennas and pre-installed JetPack System

PRODUCT DETAILS

Note

• We will not include power cable, please choose a suitable cable form according to your country.

• We will not include RTC battery (CR1220)

• Not Fan included, we adopt a big passive heat dissipation design.

Features

• Compact design for a mini PC with an overall dimension of 205mm x 130mm x 65mm
• Powered by the6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3
• 384-core NVIDIA Volta™ GPU with 48 Tensor Cores provides 21 TOPS AI performance
• Rich peripherals including Dual gigabit ethernet ports, 4 USB 3.0 Type-A ports, and HDMI port
• Pre-installed Wifi module and antenna
• Pre-installed 256 GB (2.5 inch SATA) SSD
• Pre-installed OLED screen
• Big passive heat dissipation with fully-sealing design
• Pre-installed NVIDIA official JetPack software, ready to use！

Description

Strong module - Jetson Xavier NX

At 70 mm x 45 mm, Jetson Xavier NX packs the power of the NVIDIA Xavier SoC into a module the size of a Jetson Nano™. This compact module combines exceptional performance and power advantage with a rich set of IOs—from high-speed CSI and PCIe to low-speed I2Cs and GPIOs. Take advantage of the small form factor, sensor-rich interfaces, and big performance to bring new capability to all your embedded AI and edge systems.

• POWERFUL 21 TOPS AI PERFORMANCE

Jetson Xavier NX delivers up to 21 TOPS, making it ideal for high-performance compute and AI in embedded and edge systems. You get the performance of 384 NVIDIA CUDA® Cores, 48 Tensor Cores, 6 Carmel ARM CPUs, and two NVIDIA Deep Learning Accelerators (NVDLA) engines. Combined with over 59.7GB/s of memory bandwidth, video encoding and decoding, these features make Jetson Xavier NX the platform of choice to run multiple modern neural networks in parallel and process high-resolution data from multiple sensors simultaneously.

• INCREDIBLE POWER EFFICIENCY

Jetson Xavier NX supports multiple power modes, including low-power modes for battery-operated systems, and delivers up to 14 TOPs for AI applications in as little as 10 W. This leaves more of your power budget for sensors and peripherals, while still letting you use the entire NVIDIA software stack. You now have the performance to run all modern AI networks and frameworks with accelerated libraries for deep learning, computer vision, computer graphics, multimedia, and more.

Powerful carrier board and heatsink

The NVIDIA® Jetson Xavier NX™ module has assembled with its carrier board and they together called a ‘Kit’. It brings supercomputer performance to the edge. It includes a Jetson Xavier NX module for developing multi-modal AI applications with the NVIDIA software stack in as little as 10 W. You can also now take advantage of cloud-native support to more easily develop and deploy AI software to edge devices.

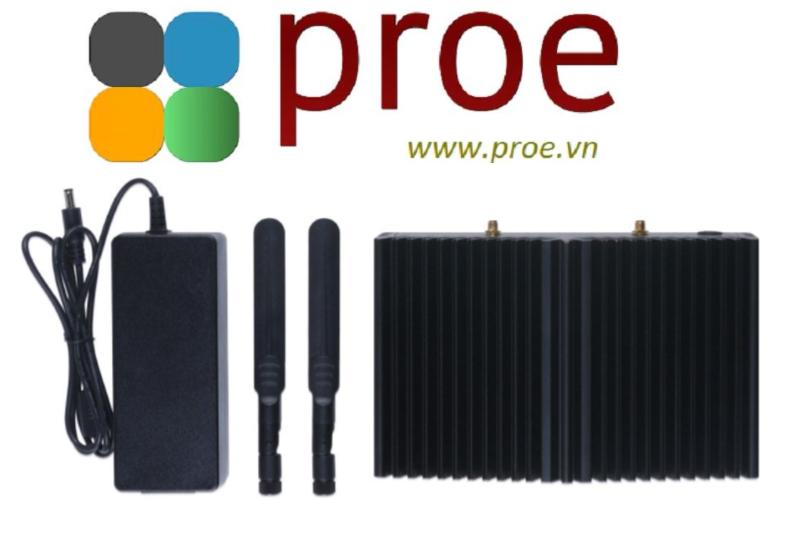

The kit is supported by the entire NVIDIA software stack, including accelerated SDKs and the latest NVIDIA tools for application development and optimization. Meanwhile, we install a Wifi module (USB 2.0), 256GB SSD (2.5 inch SATA) and two antennas. Users could just power the product, log in and use it directly.

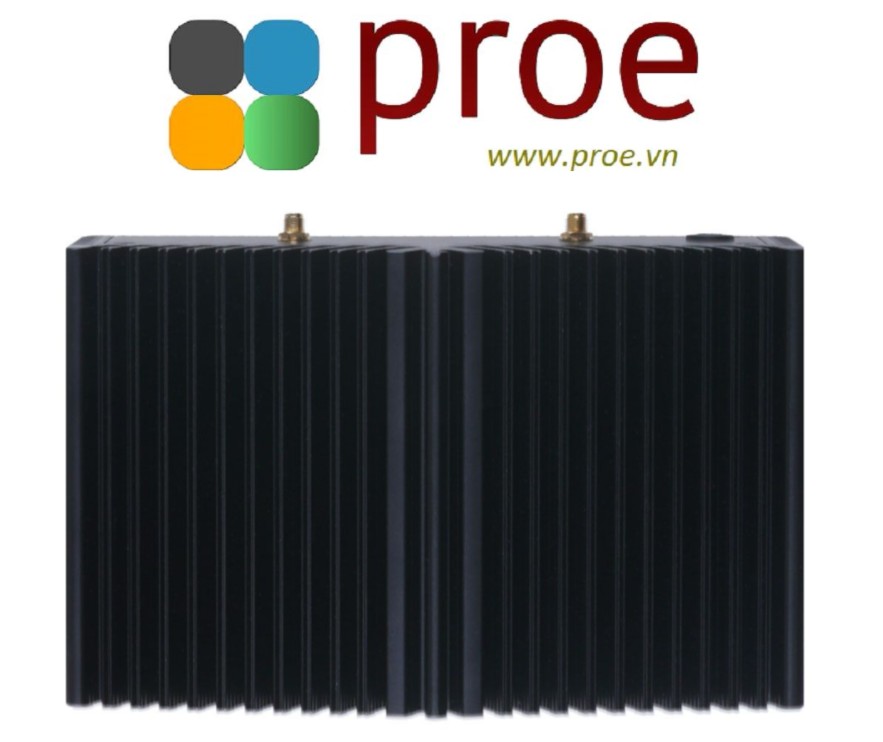

The whole Aluminium enclosure satisfied well heat dissipation passively. No-Fan design allows Jetson SUB Mini PC-Black to work quietly and will not explore dust.

Compatible enclosure

With an overall dimension of 205mm x 130mm x 65mm, it is only around 1/8 of the size of an ordinary computer case which makes it possible to be placed on a table, on a shelf, on any surface you want to be. The back screw holes allow you to hang the product on the back of your Computer Screen. The neat structure of our mini PC kit also makes it simple to access the SSD and PCIe slots which allow for easy installation, upgrade and maintenance.

Also, Fully sealing design allows it works in the kitchen, industrial controlling and other harsh environments.

Pre-installed OLED:

The OLED will automatically show the state of ethernet ports, memory and SSD.  You could customize the content on OLED as you like.

Specifications

Comparison among Jetson Mini PCs series:

Carrier Board Connector Summary:
