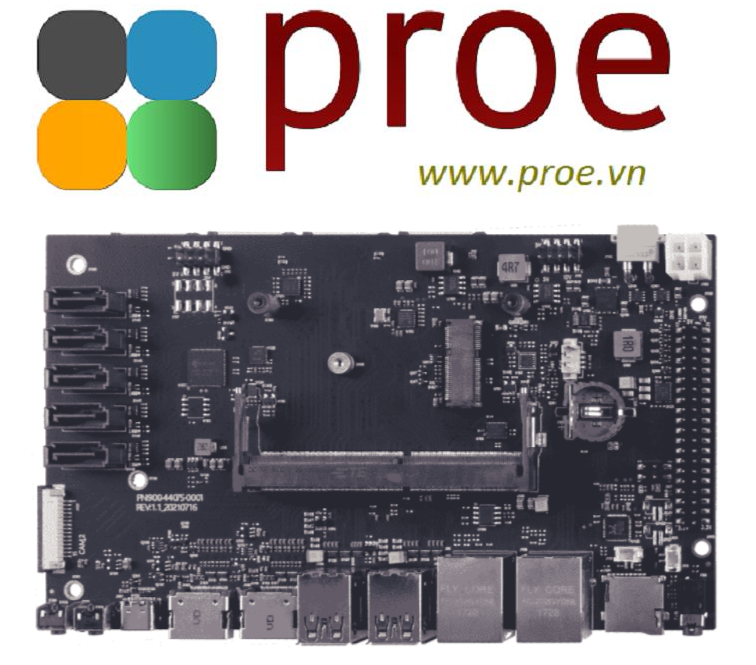

114110048 A205 Carrier Board for Jetson Nano/Xavier NX/TX2 NX with compact size and rich ports (6 CSI Camera, 2 HDMI, 5 SATA, M.2 key E supported etc.)
- Mã sản phẩm: 114110048 A205
- Nhà sản xuất: Seeed Technology Limited
- Website hỗ trợ: https://www.proe.vn
13.000.000₫
PRODUCT DETAILS
Note
-
The carrier board is specially designed for working with Jetson Nano/Xavier NX /TX2 NX module and we will not include them inside.
-
We will include AD/DC power adapter (90W MAX)
-
The 3V RTC battery will not include
Features
- Up to 6 CSI Camera connection
- Up to 5 SSD connector
- 2 HDMI
- Supporting 4G communication
- WiFi/ Bluetooth Supported
- SD Card slot
- All-in-one solution with up to 3 fans interfaces for better heat dissipation consideration
Description
A205 is a high-performance, interface rich NVIDIA Jetson Nano / Xavier NX/ TX2 NX compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB3.0, USB 2.0 (W / OTG function) M.2 key E Wifi / Bluetooth, M.2 key M, SATA, CSI camera, RS232, SD card, CAN, PIO, I2C, I2S fans and other rich peripheral interfaces are suitable for environments with strict environmental requirements, complicate real-time vision computation.
Basically, it works with an NVIDIA Jetson module mentioned above to achieve graphic AI applications. To be more specific, with the NVIDIA Jetson Nan/Xavier NX/TX2 NX module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. With its multiple camera connectors, it is suitable for complicate AI graphical application such as Automated Optical Inspection, In Video Action, Robot control, AOI, 3D modeling, Drone, parallel computing for Computer vision. Overall, it can be widely deployed in edge ares to meet the demand as smart retail or video analysis.
Application
- Industrial Automation
- Robotics
- Healthcare
- Computer Vision
- Smart City
- Smart Office
Specifications
A205 Connector Summary:
|
Feature |
A205 Carrier for NVIDIA® Jetson™ Nano/NX/TX2 NX |
|
Module Compatibility |
NVIDIA® Jetson™ Nano/NX /TX2 NX |
|
PCB Size / Overall Size |
170mm x 100mm |
|
Display |
2x HDMI |
|
Ethernet |
2x Gigabit Ethernet (10/100/1000M) |
|
USB |
4x USB 3.0 Type A (Integrated USB 2.0) |
|
1x USB 2.0 Type C(Support OTG) |
|
|
SATA |
1 x 5 SATA |
|
M.2 Key E |
1x M.2 Key E Interface |
|
CSI Camera |
6 x Camera (CSI Lane) |
|
TF_Card |
1 x TF_Card |
|
USB WIFI Mode |
Standard USB WIFI Mode(4 pin interface) |
|
Audio |
1 x Audio Jack,2 x Microphone, 2 x Speaker(1W) |
|
SPI Bus |
1 x SPI Bus(+3.3V Level) |
|
FAN |
2 x Fan(12V/5V),1 x FAN(5V PWM) |
|
CAN |
1 x CAN |
|
Misc. |
1 x System Control |
|
1 x Power Control |
|
|
2x I2C Link (+3.3V I/O) |
|
|
1 x UART(+3.3V Level) |
|
|
2 x GPIO(+3.3V Level) |
|
|
1 x SPI Bus(+3.3V Level) |
|
|
1 x LED State |
|
|
Power Requirements |
+13V to +19V DC Input @ 8A |
|
Operating Temperature |
-25° to +80° |
Comparison Chart
|
Feature |
|||
|
Module Compatibility |
NVIDIA® Jetson™ Nano/NX/TX2 NX |
NVIDIA® Jetson™ Nano/NX/TX2 NX |
NVIDIA® Jetson™ Nano/NX/TX2 NX |
|
PCB Size / Overall Size |
87mm*52mm |
170mm*100mm |
100mm*80mm |
|
Display |
1*HDMI |
2*HDMI |
2*HDMI |
|
CSI Camera |
1*CSI |
6*CSI |
2*CSI |
|
Ethernet |
1x Gigabit Ethernet (10/100/1000M) |
2x Gigabit Ethernet (10/100/1000M) |
1x Gigabit Ethernet (10/100/1000M) |
|
USB |
|
4* USB 3.0 Type A (Integrated USB 2.0); |
4* USB 3.0 Type A (Integrated USB 2.0); |
|
SATA |
\ |
5 SATA |
\ |
|
M.2 Key M |
1*M.2 Key M |
\ |
1*M.2 Key M |
|
M.2 Key E |
1*M.2 Key E |
1*M.2 Key E |
1*M.2 Key E |
|
TF_Card |
1* TF_Card |
1* TF_Card |
\ |
|
USB WIFI Mode |
\ |
1* Standard USB WIFI Mode(4 pin interface) |
\ |
|
Audio |
\ |
1* Audio Jack; |
\ |
|
SPI Bus |
1* SPI Bus(+3.3V Level) |
1* SPI Bus(+3.3V Level) |
1* SPI Bus(+3.3V Level) |
|
FAN |
1* FAN(5V PWM) |
2* Fan(12V/5V); |
1* FAN(5V PWM) |
|
CAN |
1* CAN |
1* CAN |
1* CAN |
|
Multifunctional port |
1* 40-Pin |
1* 40-Pin |
1* 40-Pin |
|
RTC |
Battery included |
Battery not included |
Battery not included |
|
Power Requirements |
DC 15V/3A |
DC 19V/4.74A (90W MAX) |
DC 15V/3A |
|
Operating Temperature |
-25° to +80° |
-25° to +80° |
-25° to +80° |
Hardware Overview
Note
-
For more detail interfaces and pins' description, please check our 'Documents' Part below.
Part List
1 x A205Carrier Board
1 x Power Adapter 19V/4.74A (90W MAX)
ECCN/HTS
| HSCODE | 8543909000 |
| UPC |
