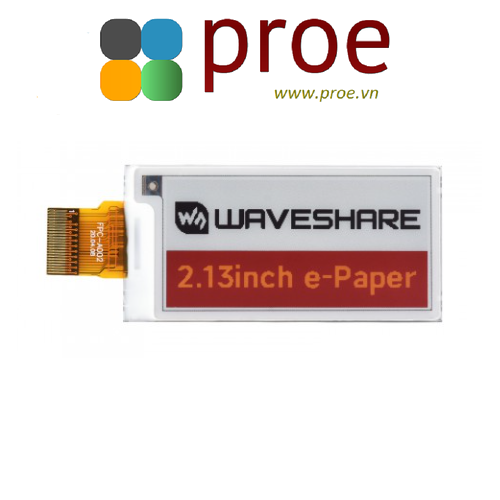

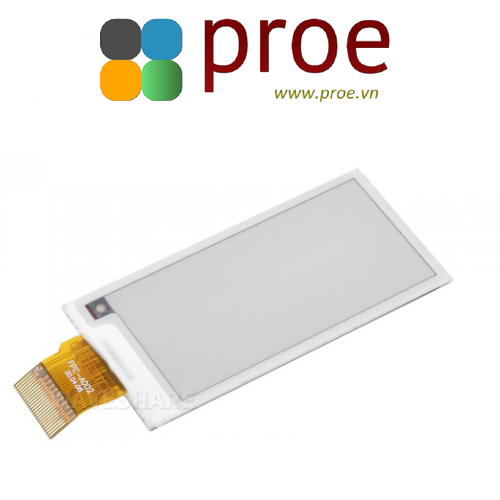

2.13inch E-Paper (G) raw display, 250x122, Red/Yellow/Black/White

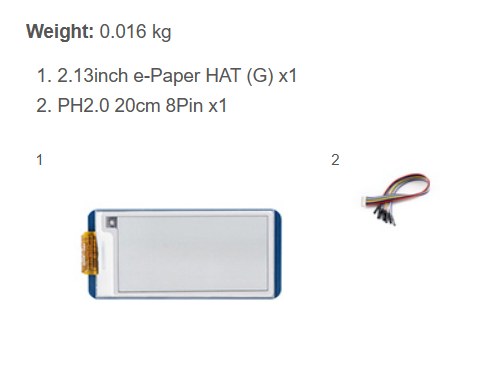

PACKAGE CONTENT

DESCRIPTION

2.13inch E-Paper HAT (G), 250x122, Red/Yellow/Black/White, SPI Interface

2.13″ E-Paper HAT (G)

Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity

Ideal for price tags, shelf labels, industrial instruments...

• Size2.13″
• Resolution250×122
• Viewing Angle>170°
• Display ColorRed/Yellow/Black/White
• Grey Scale2
• CommunicationSPI
• Display PanelE-paper
• ExperiencePaper-like
• EnvironmentAmbient Light Required
• Display TypePassively Reflective

Features At A Glance

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• SPI interface, for connecting with other controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
• Onboard voltage translator, compatible with 3.3V/5V MCUs
• Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series Boards, Jetson Nano

for reference only, the Raspberry Pi Zero is NOT included.

Onboard SPI Control Interface

For Use With Controller Boards Like Arduino/STM32

Onboard Voltage Translator

Compatible With 3.3V / 5V MCUs

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

Product Show

Outline Dimensions

WIKI: www.waveshare.com/wiki/2.13inch_e-Paper_HAT_(G)
