2-Channel RS485 Module For Raspberry Pi Pico, SP3485 Transceiver, UART To RS485

2-Channel RS485 Module For Pico

Incorporates RS485 Transceiver SP3485, Using UART Bus

Features At A Glance

• Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
• Using UART bus, easily converting UART to RS485, or vice versa
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico,
Male Pin Header For Stacking Other Modules

Raspberry Pi Pico and Pico-LCD-0.96 are NOT included.

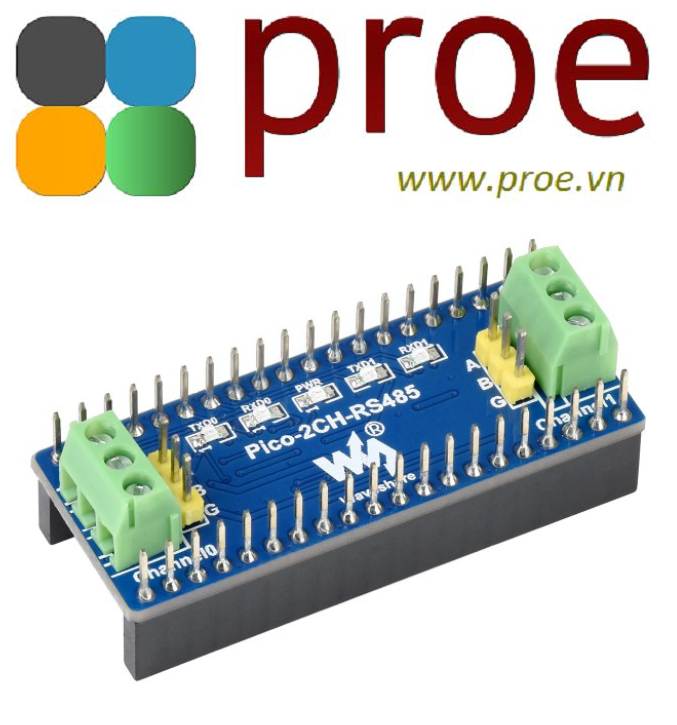

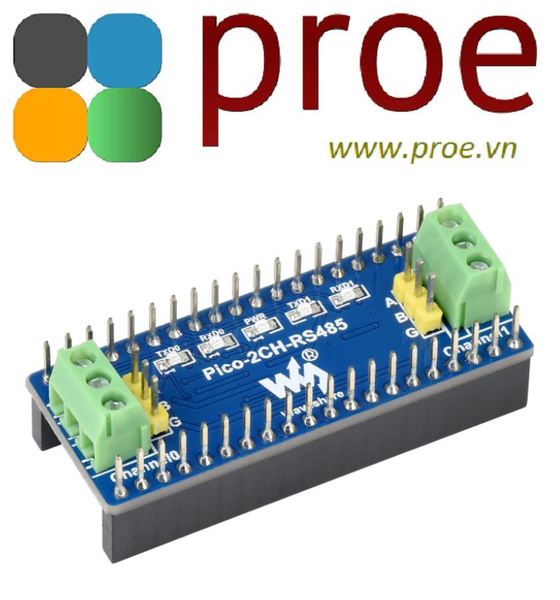

What's On Board

1. RS485 bus interface
   2-channel RS485
2. UART status indicators
   RXD0/TXD0: Channel 0 RX/TX indicators
   RXD1/TXD1: Channel 1 RX/TX indicators
3. Power indicator

4. SP3485 RS485 transceiver
5. SMAJ12CA
   transient suppress diode array
6. Raspberry Pi Pico header

Pinout Definition

Outline Dimensions

Resources & Services

WIKI: Pico-2CH-RS485
