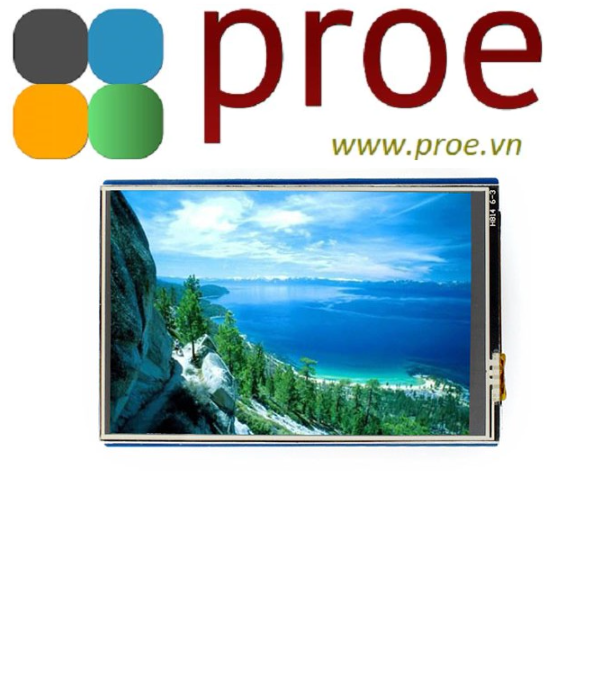

3.5inch Touch LCD Shield For Arduino
LCD TYPE | TFT |
---|---|
LCD INTERFACE | SPI |
LCD CONTROLLER | ILI9486 |
TOUCH SCREEN TYPE | Resistive |
TOUCH SCREEN CONTROLLER | XPT2046 |
COLORS | RGB, 65K colors |
RESOLUTION | 480x320 (Pixel) |
ASPECT RATIO | 8:5 |
I/O VOLTAGE | 3.3V/5V |
SYMBOL | ARDUINO / NUCLEO PIN | DESCRIPTION |
---|---|---|
5V | 5V | 5V power input |
GND | GND | Ground |
SCLK | D13 | SPI clock |
MISO | D12 | SPI data input |
MOSI | D11 | SPI data output |
LCD_CS | D10 | LCD chip select |
LCD_BL | D9 | LCD backlight |
LCD_RST | D8 | LCD reset |
LCD_DC | D7 | LCD data/command selection |
TP_BUSY | D6 | Touch panel busy |
SD_CS | D5 | Micro SD card chip select |
TP_CS | D4 | Touch panel chip select |
TP_IRQ | D3 | Touch panel interrupt |
Wiki : www.waveshare.com/wiki/3.5inch_TFT_Touch_Shield
