4.3” Nextion Intelligent Series HMI Touch Display

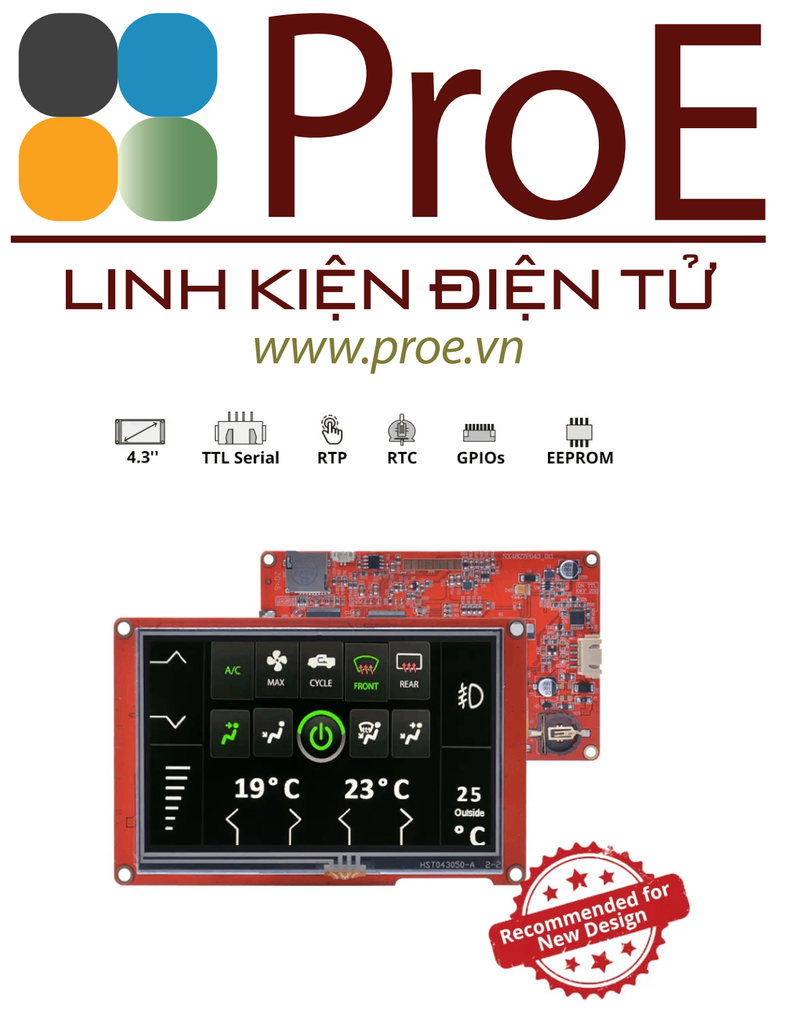

NX4827P043-011R is a Nextion Intelligent series 4.3” resistive HMI touchscreen without enclosure and SKU is 6920075771886 (IPS Display)

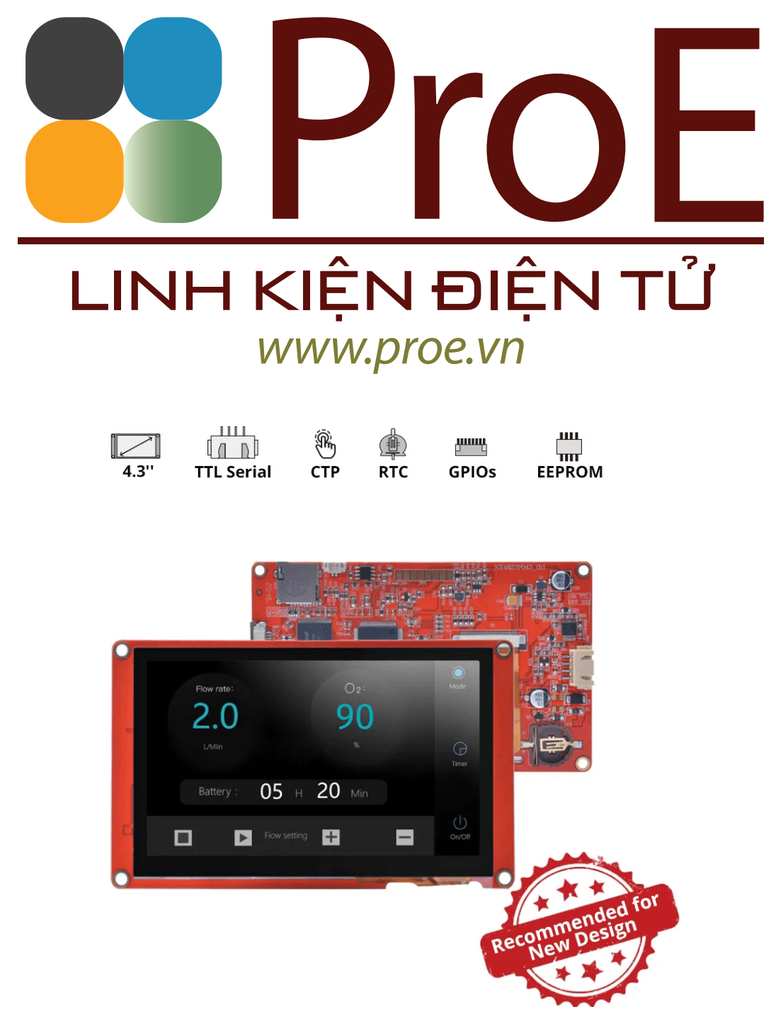

NX4827P043-011C is a Nextion Intelligent series 4.3” capacitive HMI touchscreen without enclosure and SKU is 6920075771893 (IPS Display)

Additional information

Nextion Editor Overview

Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Discovery Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCll text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.Nextion Editor Features

Versatile Character Encoding
With several character encoding, you are able to create the HMI project in your language characters and strings.

Fonts and Text Styling
The font creator allows you to generate the specific fonts applied in each component value or text attribute. e.g.Generate the font of "Arial" with Height "24" and Encoding "UTF-8"25+Amazing WYSIWYG Components
Easy-to-use components to customized GUI at screen side allow you to develop projects rapidly in a cost-effective way

Component Attribute Setting
The component attribute setting gives you the options to design all the aspects of the component that you need.

Free Simulator Debug
Debug the HMI project at any time even without the Nextion Display.The instruction input area allows you to send any Nextion commands to check the feedback and interactions.

Nextion Operational Commands
The operational commands allow users to program the HMI interactions by coding in Events windows

Text-based Instruction Set
Simple ASCll text based instructions will dramatically reduce your HMI project development workloads

Support Simple Assignment Operators
To handle the calculation and assignment for the text and Numeric data, the simple assignment operators help.

• Video





  NX4827P043-011C Certification and Documents

  • - Datasheet

  • - Dimension
  • - Instruction Set
  • - Editor Guide
  • - LTA Announcement
  • - CE Certification
  • - ROHS Certification

  NX4827P043-011R Certification and Documents

  • - Datasheet

  • - Dimension
  • - Instruction Set
  • - Editor Guide
  • - LTA Announcement
  • - CE Certification
  • - ROHS Certification

  Nextion Technical Support

  • - Nextion Community Forum
