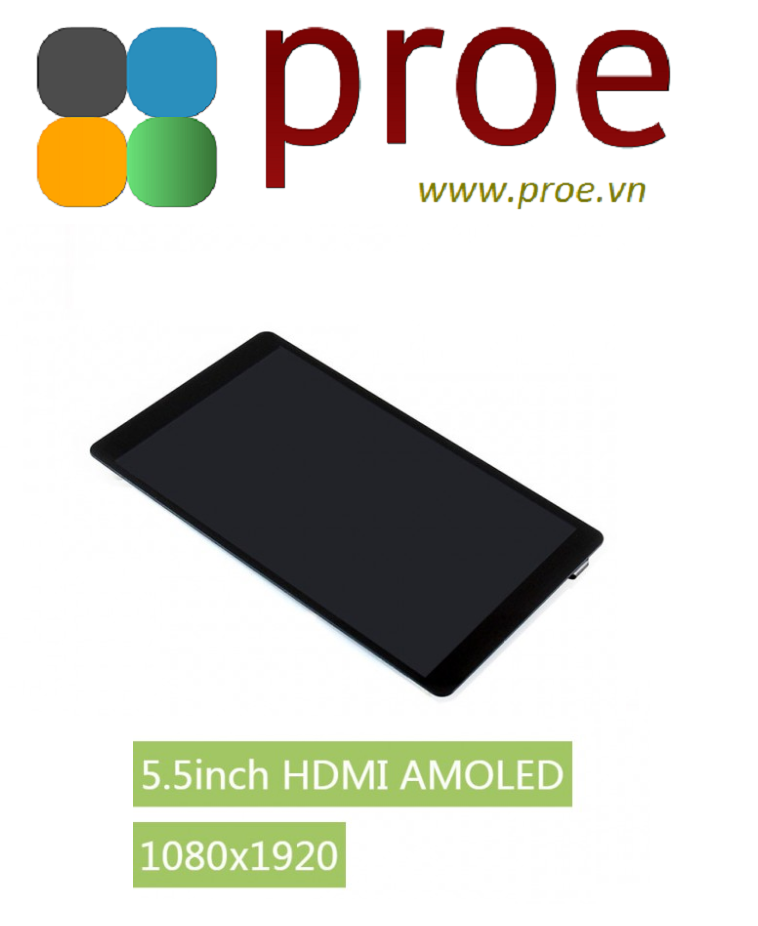

5.5inch HDMI AMOLED 5.5inch HDMI AMOLED, 1080x1920, supports various systems, capacitive touch

Weight: 0.272 kg

Note: Raspberry Pi is NOT included.

1. 5.5inch HDMI AMOLED x1
2. HDMI cable x1
3. USB type A plug to micro B plug cable x1
4. HDMI adapter (B) x1
5. USB adapter (B) x1
6. HDMI to Micro HDMI adapter (C) x1
7. USB adapter (C) x1
8. Screws pack x1

1

2

3

4

5

6

7

8

5.5inch, 1080x1920, Capacitive Touch Screen AMOLED with Toughened Glass Cover, HDMI interface, Supports Multi Systems

The display orientation is portrait by default, 1080×1920 resolution (H×V). Change the software config for landscape display.

Overview

This is a 5.5inch AMOLED display. Compared with LCD, it has advantages of high contrast, wide color gamut, and wide viewing angle, which make it able to bring vivid and delicate visual experience.

Features

• 5.5inch AMOLED, 1080x1920 resolution
• Toughened glass capacitive touch panel, 6H hardness

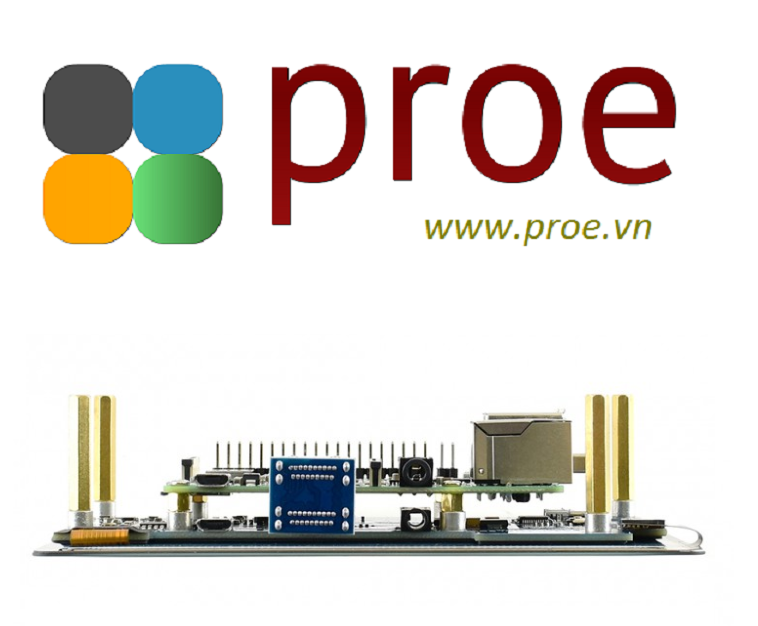

• Supports popular mini PCs such as Raspberry Pi, Jetson Nano, as well as general desktop computers

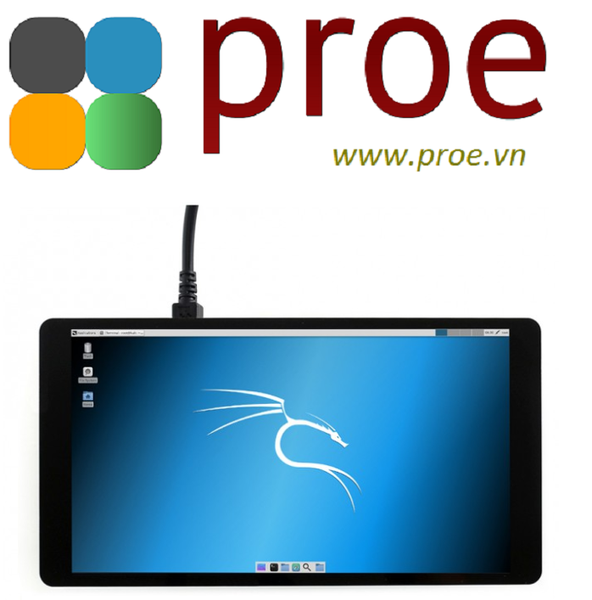

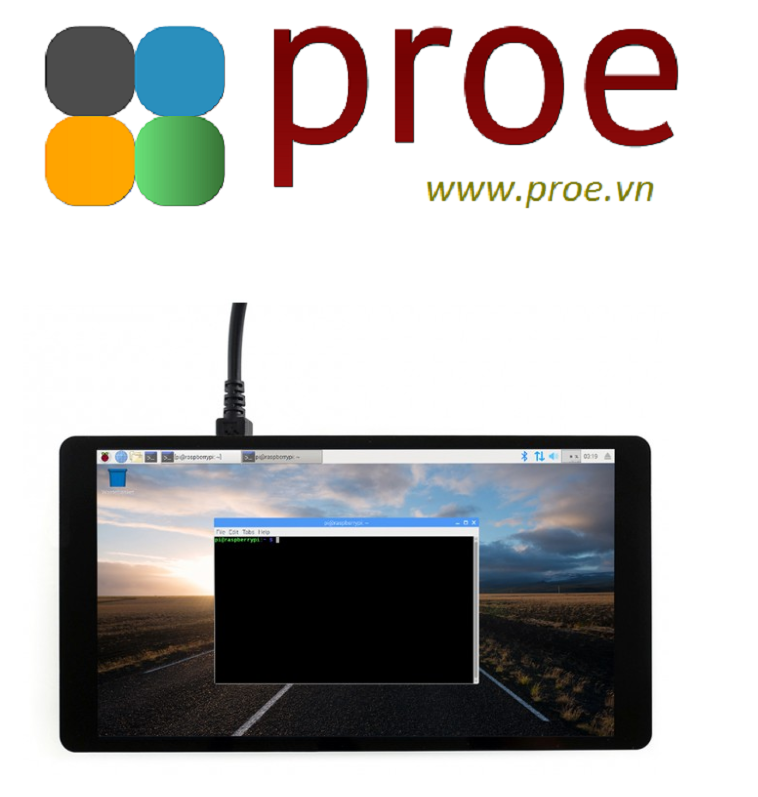

  • When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie, driver free
  • When works as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free

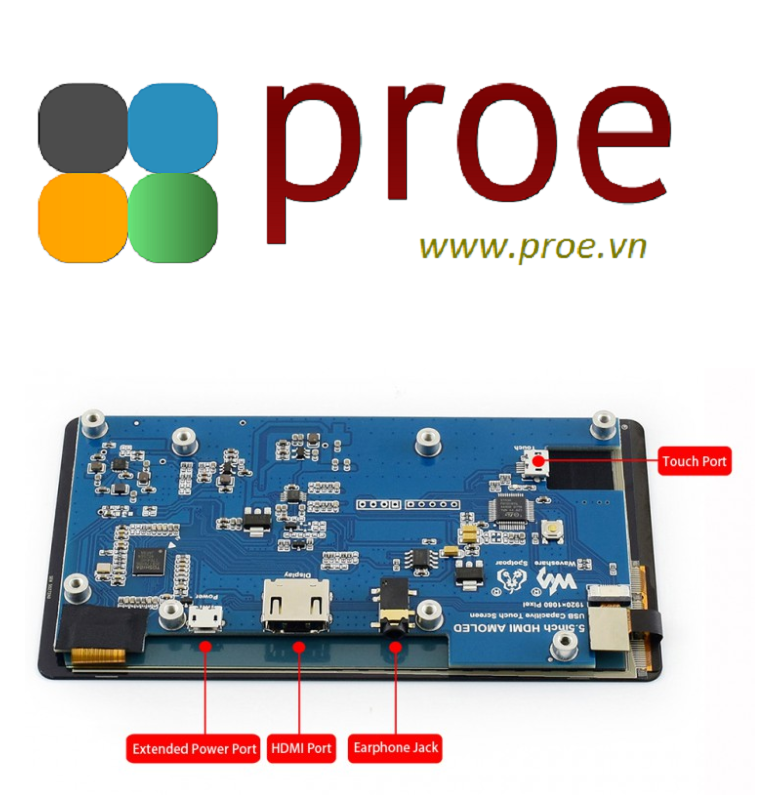

• 3.5mm audio jack, supports HDMI audio output
• M2.5 screw holes for easy mounting

External Dimension

Development Resources

Wiki : www.waveshare.com/wiki/5.5inch_HDMI_AMOLED
