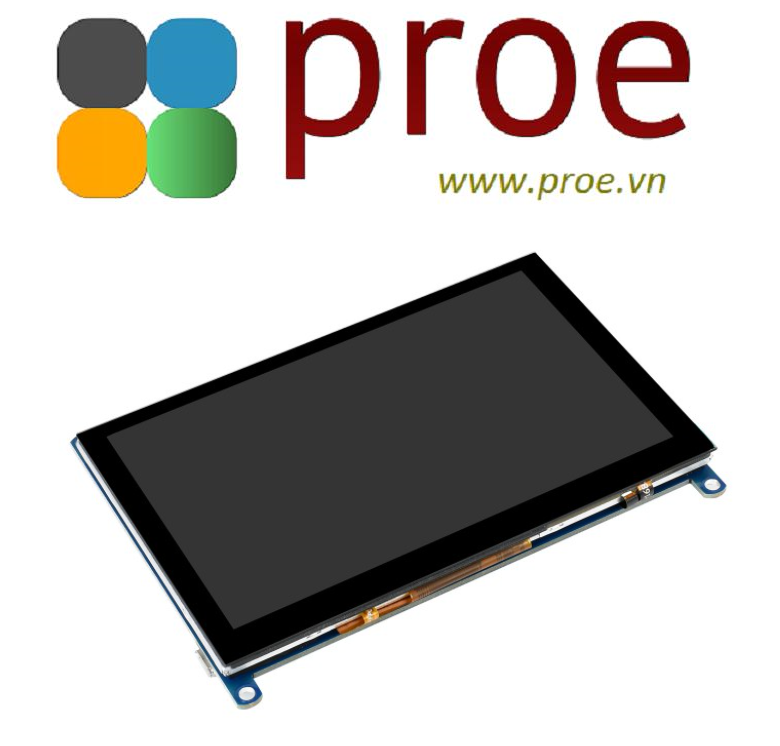

5inch Capacitive Touch Screen LCD (H) Slimmed-down Version, 800×480, HDMI, Toughened Glass Panel, Low Power

PACKAGE CONTENT

Weight: 0.271 kg

1. 5inch HDMI LCD (H) V4 x1
2. HDMI cable x1
3. HDMI to Micro HDMI Adapter x1
4. USB type A plug to micro B plug cable x1
5. RPi screws pack (4pcs) x1

1

2

3

4

5

5inch Capacitive Touch Screen LCD (H) Slimmed-Down Version, 800×480, HDMI, Toughened Glass Panel, Low Power Consumption

5" HDMI Touch Display V4

• Size5"
• Resolution800×480
• Display PortHDMI
• Touch TypeCapacitive
• Touch Points5-Points
• Touch PortUSB
• Touch PanelToughened Glass
• ConsumptionLow Power

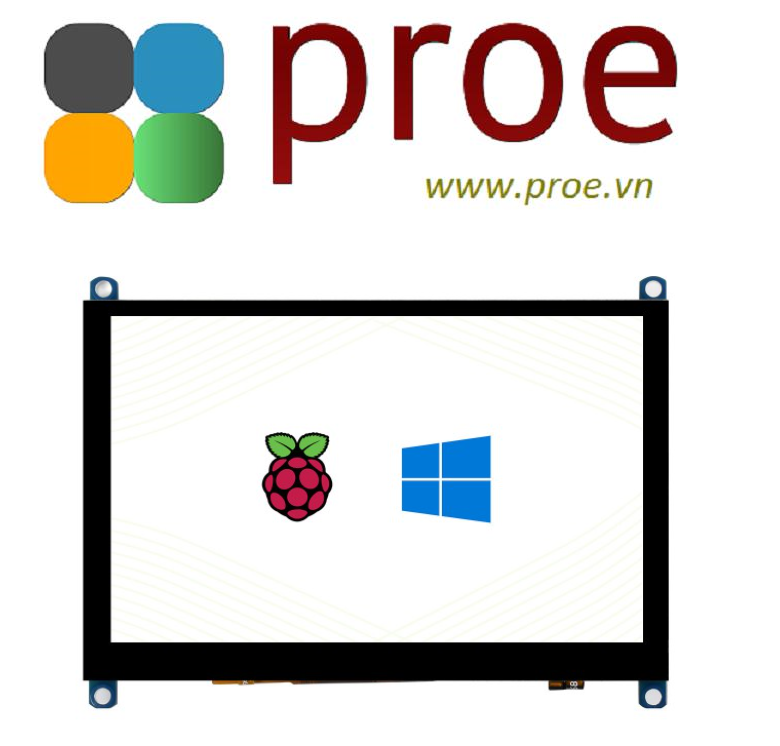

Device & System Support

Raspberry Pi

Supports Raspbian, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

PC

Supports Windows 10 / 8.1 / 8 / 7, 5-points touch, driver free

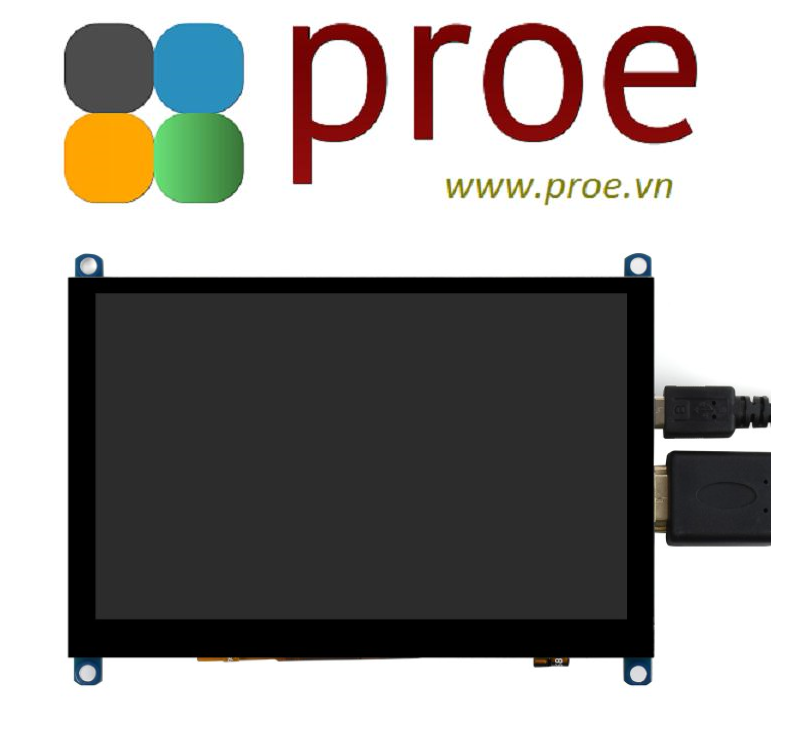

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi Zero W

Working With Mini PC

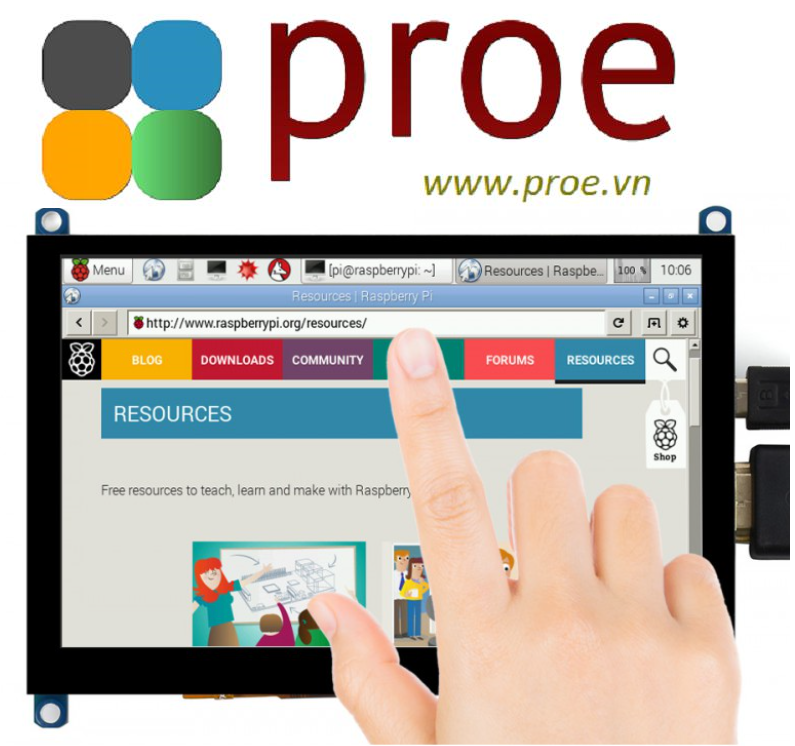

Touch Control

1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.

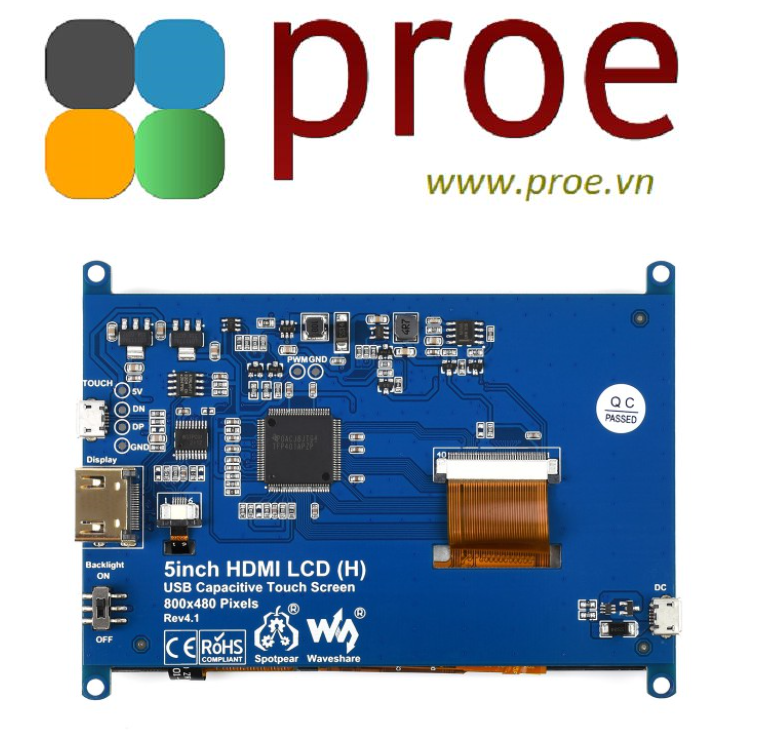

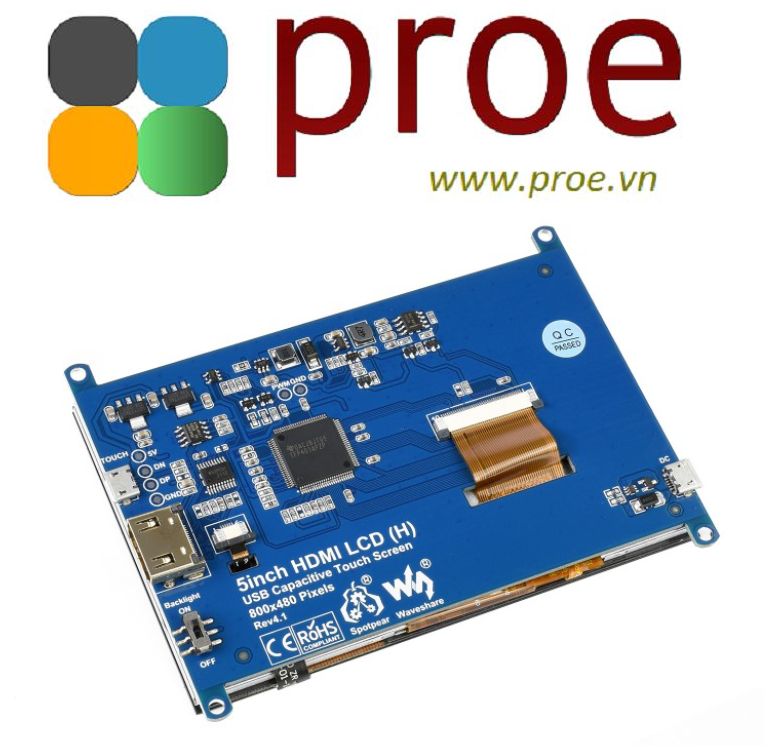

Appearance And Dimensions

Resources & Services

Wiki: 5inch_HDMI_LCD_(H)_V4
