7″ Touch Screen All-In-One Kit Designed for Raspberry Pi CM4, 5MP Camera, Aluminum Case

WIKI: CM4-DISP-BASE-7A-BOX

PACKAGE CONTENT

Weight: 0.898 kg

1. All-in-one kit x1
2. OPTIONS 12V 2A power adapter x1
3. Screwdriver x1

1

2

3

7″ Touch Screen All-In-One Kit Designed For Raspberry Pi CM4, 5MP Camera, Aluminum Case

7″ Touch Screen All-In-One Kit

Designed for Raspberry Pi Compute Module 4

* the Compute Module 4 is NOT included.

Specifications

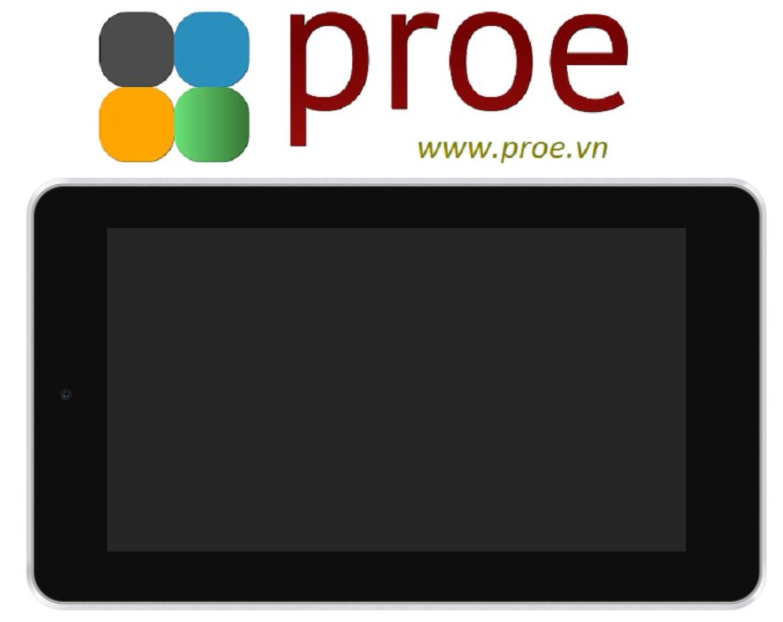

Toughened Glass Screen

7inch Capacitive Touch Screen, 5-Points Capacitive Touch
Along With Toughened Glass Panel, More Safe To Use

5MP Front Camera

Design Details

Rich Interfaces

Providing Interfaces Including: CSI, HDMI, USB, M.2, ETH, RS232, RS485

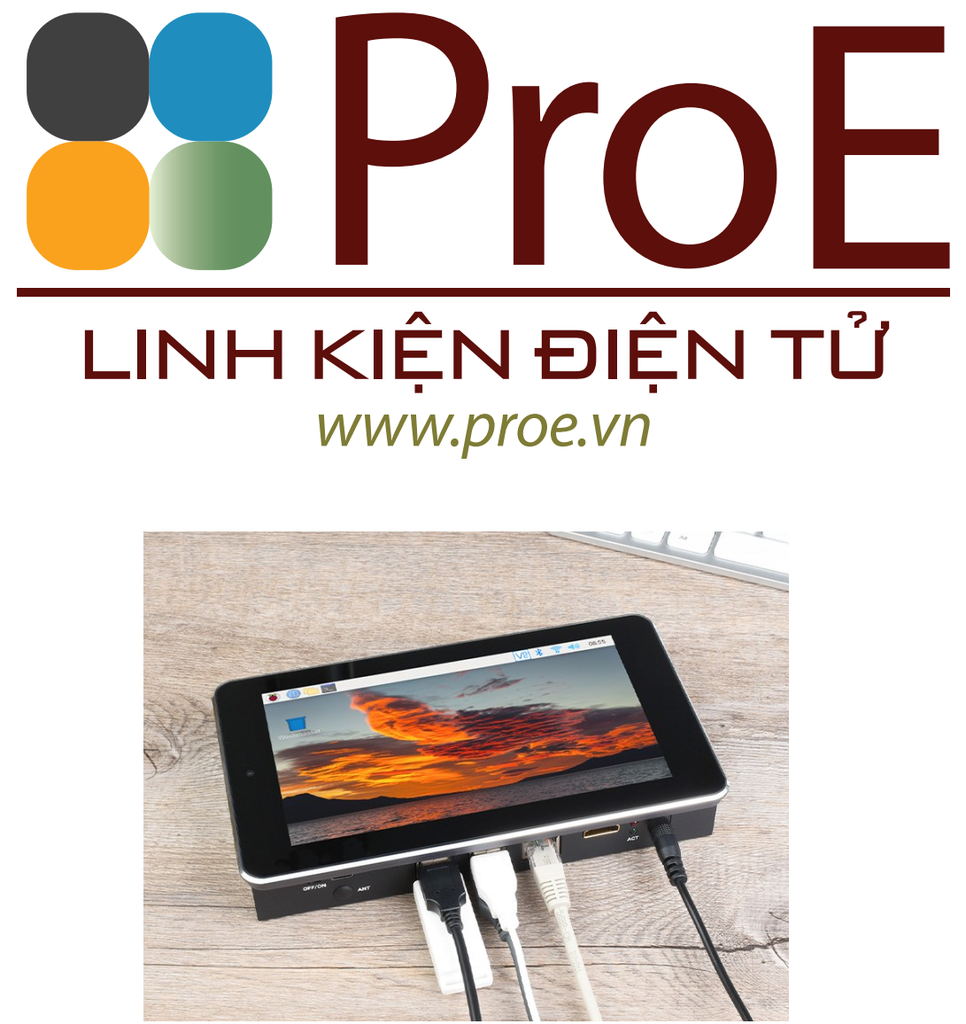

Application Example

Suitable For Raspberry Pi Projects Where Multi Peripherals Are Required,
Or Other Industrial Applications

Adjustable Brightness Via Software

What's On Board

1. CM4 socket
   suitable for all variants of Compute Module 4
2. DC power supply
   7 ~ 36V DC input
3. CM4 status indicator
   PWR: Raspberry Pi power indicator
   ACT: Raspberry Pi operating status indicator
4. HDMI connector
   supports 4K 30fps output
5. RJ45 Gigabit Ethernet
   10/100/1000M compatible
6. USB 2.0 ports
   4x USB 2.0, for connecting sorts of USB devices
7. Micro SD card slot
   for connecting a Micro SD card with pre-burnt image (Lite variant ONLY)
8. USB SLAVE port
   USB programming port
9. BOOT selection
   ON: CM4 will be booted from USB-C interface
   OFF: CM4 will be booted from eMMC or Micro SD card
10. MIPI CSI connector
    connected to the 5MP front camera

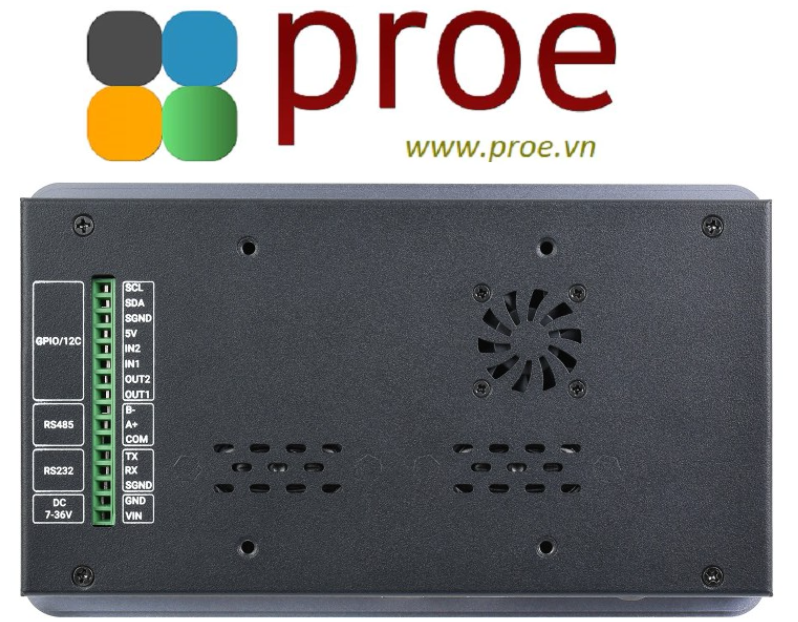

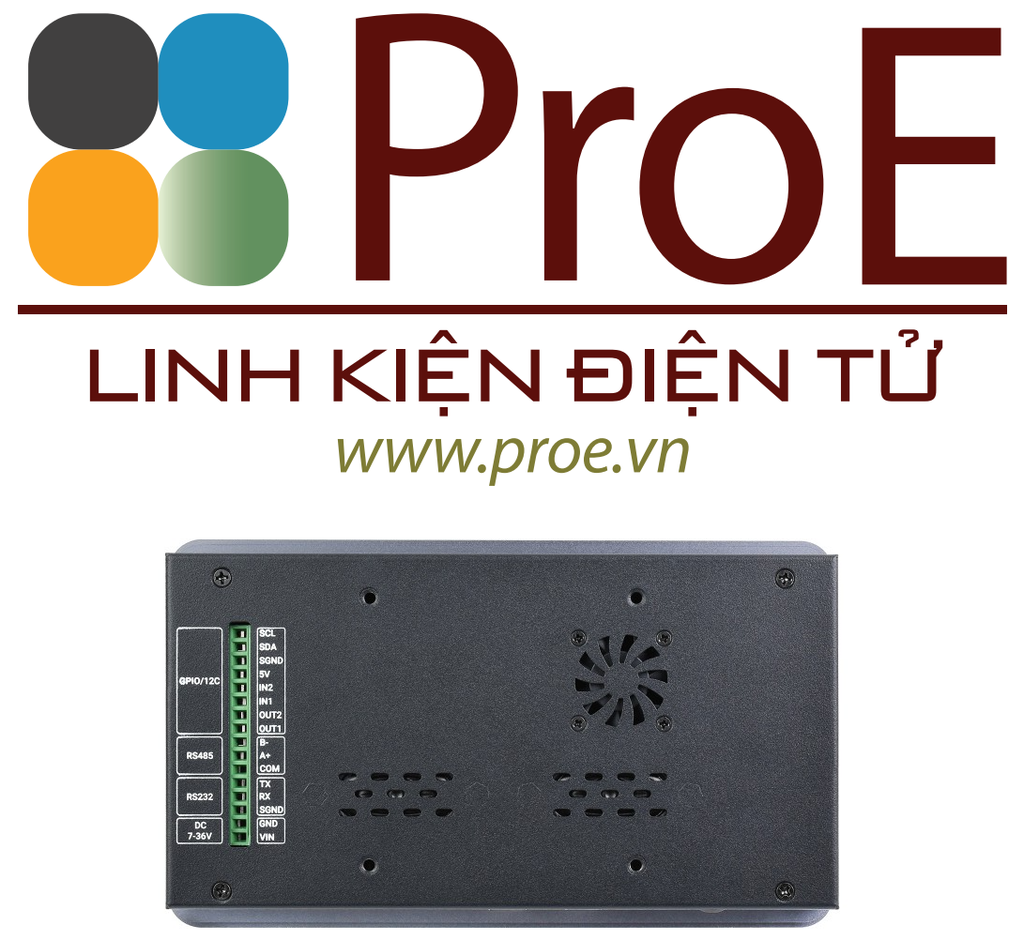

11. Isolated I2C
    for controlling or reading data from devices via I2C
12. Isolated GPIO
    for controlling or detecting devices via GPIO
13. Isolated RS485
14. Isolated RS232
15. DC power supply
    7 ~ 36V DC input
16. RS485 terminal resistor and GPIO logic level selection
    RS485: connect/disconnect the 120R resistor
    GPIO: GPIO logic level selection

17. RTC battery holder
    supports CR1220 button cell
18. Touch screen header
    connected to the capacitive touch screen
19. Display connector
    connected to the 7inch 800×480 display
20. M.2 M KEY
    supports M.2 M KEY NVME SSD, or other communication modules using PCIe channel
21. Speaker header
    audio output
22. FAN header
    for connecting cooling fan, allows speed adjustment and measurement
23. RTC interruption configuration
    GL-EN: CM4 powerdown on RTC interruption
    PI-RUN: CM4 will reboot on RTC interruption
    D16: D16 pin is triggered on RTC interruption (default)
24. System function configuration
    BT_DIS: Bluetooth disabled, for CM4 with antenna variant ONLY
    WiFi_DIS: WiFi disabled, for CM4 with antenna variant ONLY
    WP_DIS: boot mode switch, ONLY be used when NOT booted from eMMC or SD card
25. FAN power supply selection
    select 5V (default) or 12V power to drive the fan
26. IO-VREF selection
    set the CM4 IO logic level as 3.3V (default) or 1.8V
27. RS485 switch
    GPIO13/12: using ttyAMA1 device (default)
    GPIO15/14: using ttyS0 device
28. RTC/FAN I2C bus selection
    SDA0/SCL0: I2C-10 is shared with CSI/DSI
    GPIO3/2: I2C-1 is shared with 40PIN GPIO (default)

Outline Dimensions
