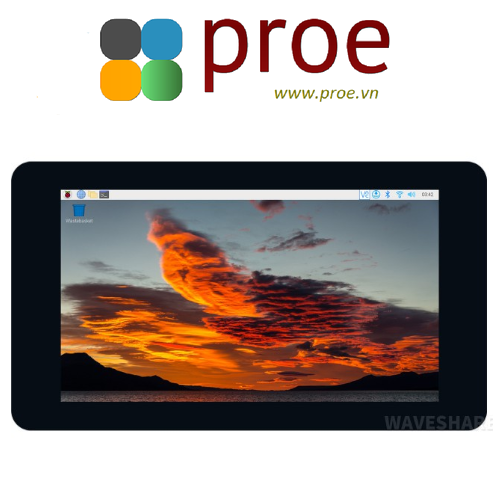

7inch Capacitive Touch Display, DSI Interface, IPS Screen, 800×480, 5-Point Touch, with case(optional)

PACKAGE CONTENT

7inch DSI LCD (B) kit

1. 7inch DSI LCD (B) x1
2. FPC 15PIN 1.0 pitch 50mm (opposite sides) x1
3. 2PIN to PH2.0 2PIN cable 6cm x1
4. FPC 15PIN 1.0 pitch 160mm (opposite sides) x1
5. Screws pack x1

7inch DSI LCD (B) with case kit

1. 7inch DSI LCD (B) kit x1
2. Black case kit x1

DESCRIPTION

7inch Capacitive Touch Display, DSI Interface, IPS Screen, 800×480, 5-Point Touch, With Case(Optional)

7″ DSI Touch Display

Multi-Touch | With Case (Optional)

Version Options

The Display Only

The Display With Case

Only suitable for Raspberry Pi 4B

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 5-point touch, driver free
Supports Ubuntu / Kali/ WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4* (the case supports Pi 4B only, due to connector layout)

* some CM3/3+/4 base boards require extra adapter cable

VisionFive2

Supports Debian, single point touch, driver free

Core3566

Supports Debian / Ubuntu, 5-point touch, driver free

Connection Examples

Working With Raspberry Pi 4B

The Display Only

The Display With Case

Working With Raspberry Pi 3B+

Working With Core3566 To Pi 4B Kit

Working With VisionFive2

for reference only, the above controller boards are NOT included

IPS Display Panel

Excellent Display Performance With 170° Wide Viewing Angle

High Quality Picture , Clear And Bright

New Generation IPS LCD Screen With More Natural Gradual Color Change

Display Color Is More Vivid

Better Visual Experience With More Color Details On The Screen

Capacitive 5-Point Touch

1. up to 5-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel

Adjustable Brightness Via Software

Interface Introduction

The Display Only

The Display With Case

How To Install

Product Show

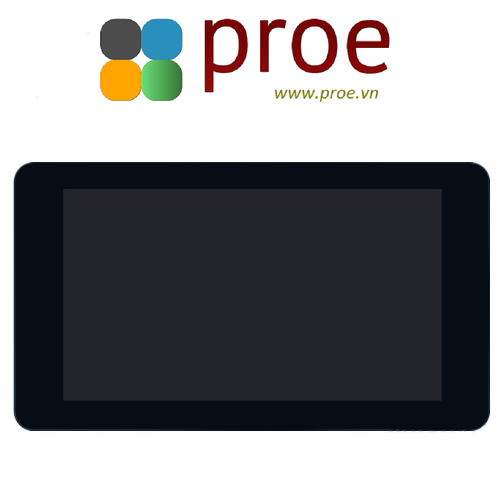

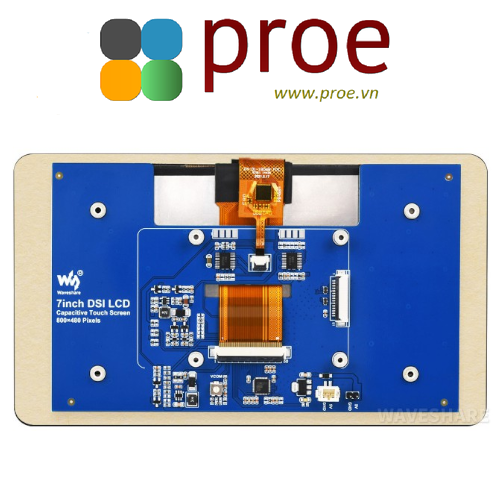

The Display Only

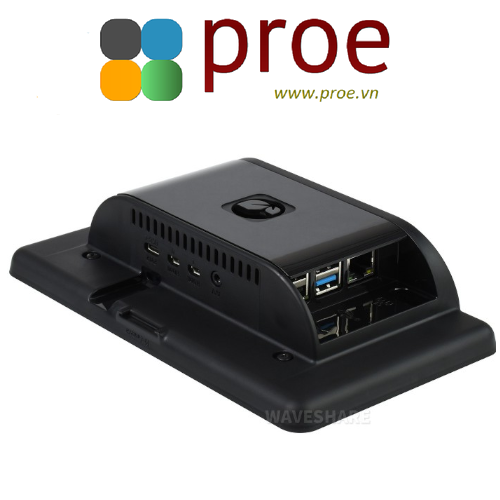

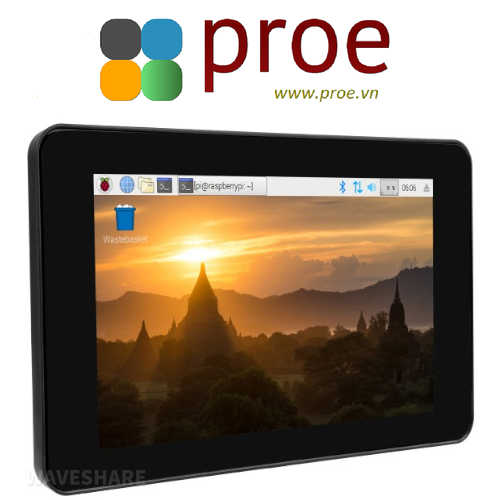

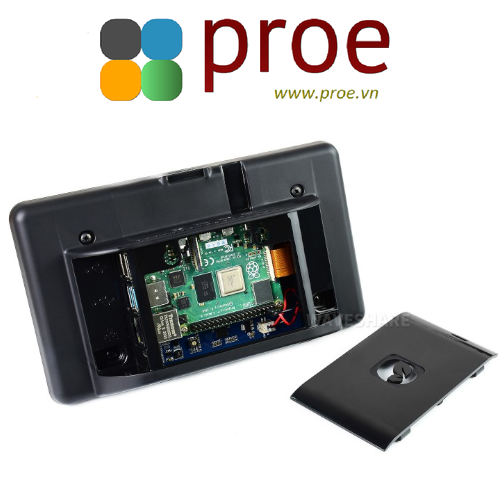

The Display With Case

Dimensions

Support Touch Screen Customization

Support The Following Ways To Customize The Touch Screen Display In Bulk Order

Wiki: www.waveshare.com/wiki/7inch_DSI_LCD_(B)
