7inch QLED Quantum Dot Display, Capacitive Touch, 1024×600, G+G Toughened Glass Panel, Various Systems Support

Weight: 0.428 kg

1. 7QP-CAPLCD x1
2. HDMI cable x1
3. HDMI to Micro HDMI Adapter x1
4. USB type A plug to micro B plug cable x1
5. RPi screws pack (4pcs) x 1

1

2

3

4

5

7inch QLED Quantum Dot Display, Capacitive Touch, 1024×600, G+G Toughened Glass Panel, Various Devices & Systems Support

7" QLED Quantum Dot Display

• Size7"
• Resolution1024×600
• Display PortHDMI
• Display PanelIPS
• Viewing Angle170°
• BacklightQLED Quantum Dot
• Touch TypeCapacitive
• Touch Points5-Points
• Touch PortUSB
• Touch PanelG+G Toughened Glass
• OSD MenuBrightness/Contrast
• Audio Output13.5mm Jack
• Audio Output24PIN Header
• GamingXbox360/PS4/Switch

Device & System Support

Raspberry Pi

Supports Raspbian, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single point touch, driver free

PC

Supports Windows 10 / 8.1 / 8 / 7, 5-points touch, driver free

Game Console

Xbox360, PS4, Switch...

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

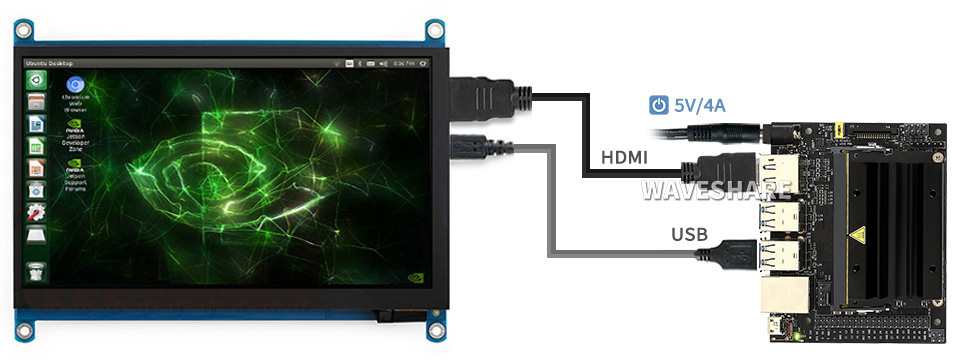

Working With AI Computer Jetson Nano

Working With Mini PC

Display

QLED Panel

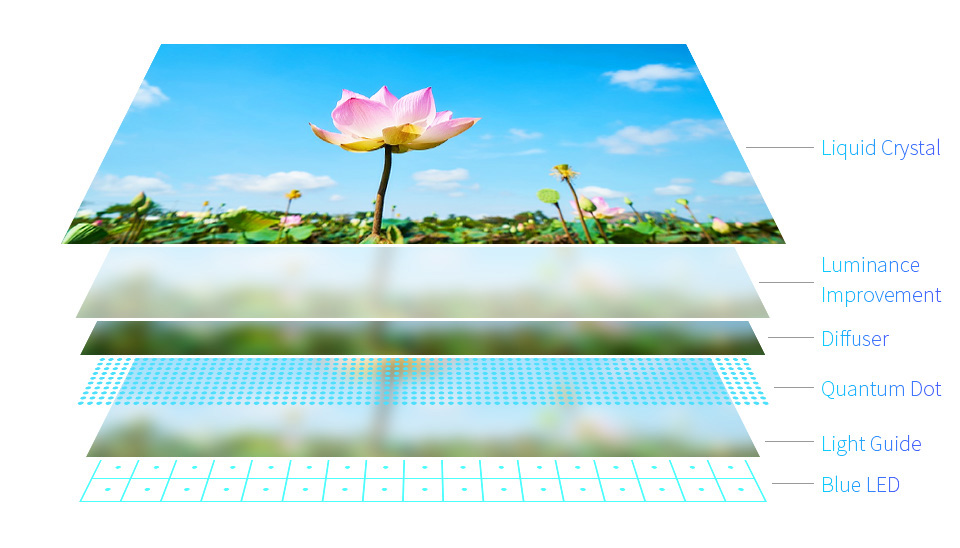

QLED Quantum Dot Technology

Wider Color Gamut

Color Gamut Of This QLED Display Is Up To: NTSC 78%, SRGB 92%

More Pure Chroma

Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid

Longer Lifetime

Due To Its Inorganic Characteristic, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation

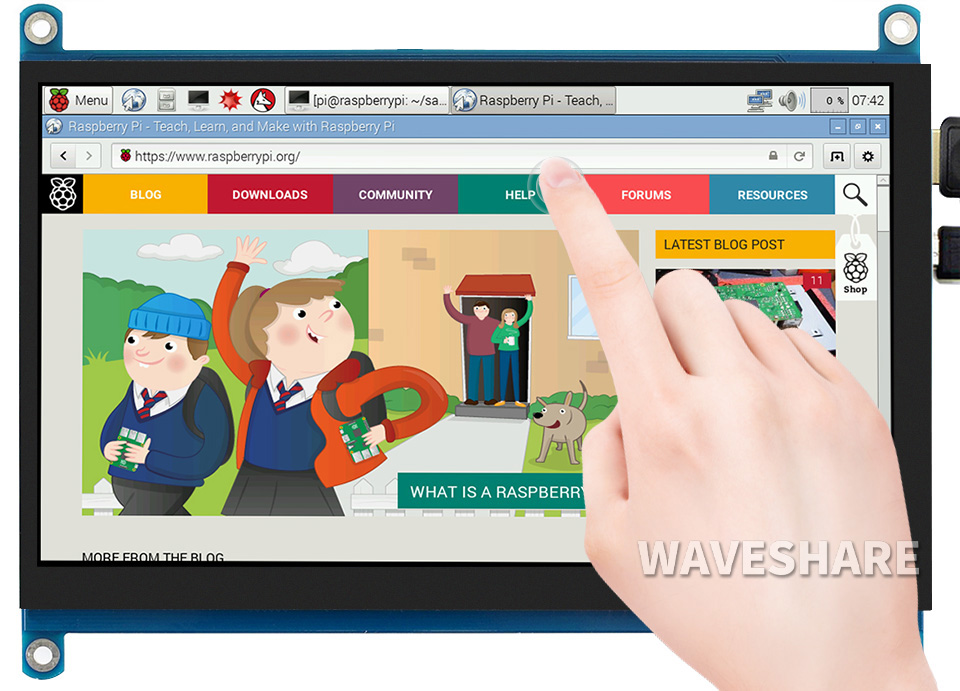

Touch Control

1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness G-G toughened glass panel.

Backlight Control

The Backlight Brightness Is Adjustable Via Software

Enjoy Gaming

* audio output via earphone/speaker port.

Demystifying Design Details

1. LCD FFC cable anti-interference design, more stable for industrial application
2. VCOM voltage adjustment for optimizing display effect
3. USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
4. 4~5.5V wide range USB power input, to avoid display flickering or touch failure that caused by low USB voltage
5. Low dropout ideal diode isolation, when both the Touch and Power Only are connected to a power source, only the one with more power capability will be used as power supply. The two power inputs are totally isolated to prevent any breakdown
6. Two audio outputs for earphone and speaker, each track of speaker supports 2.6W PA circuit
7. OSD menu config buttons for adjusting backlight (via software) and display color
8. DC-DC LCD driver circuit, low heating on long term operation

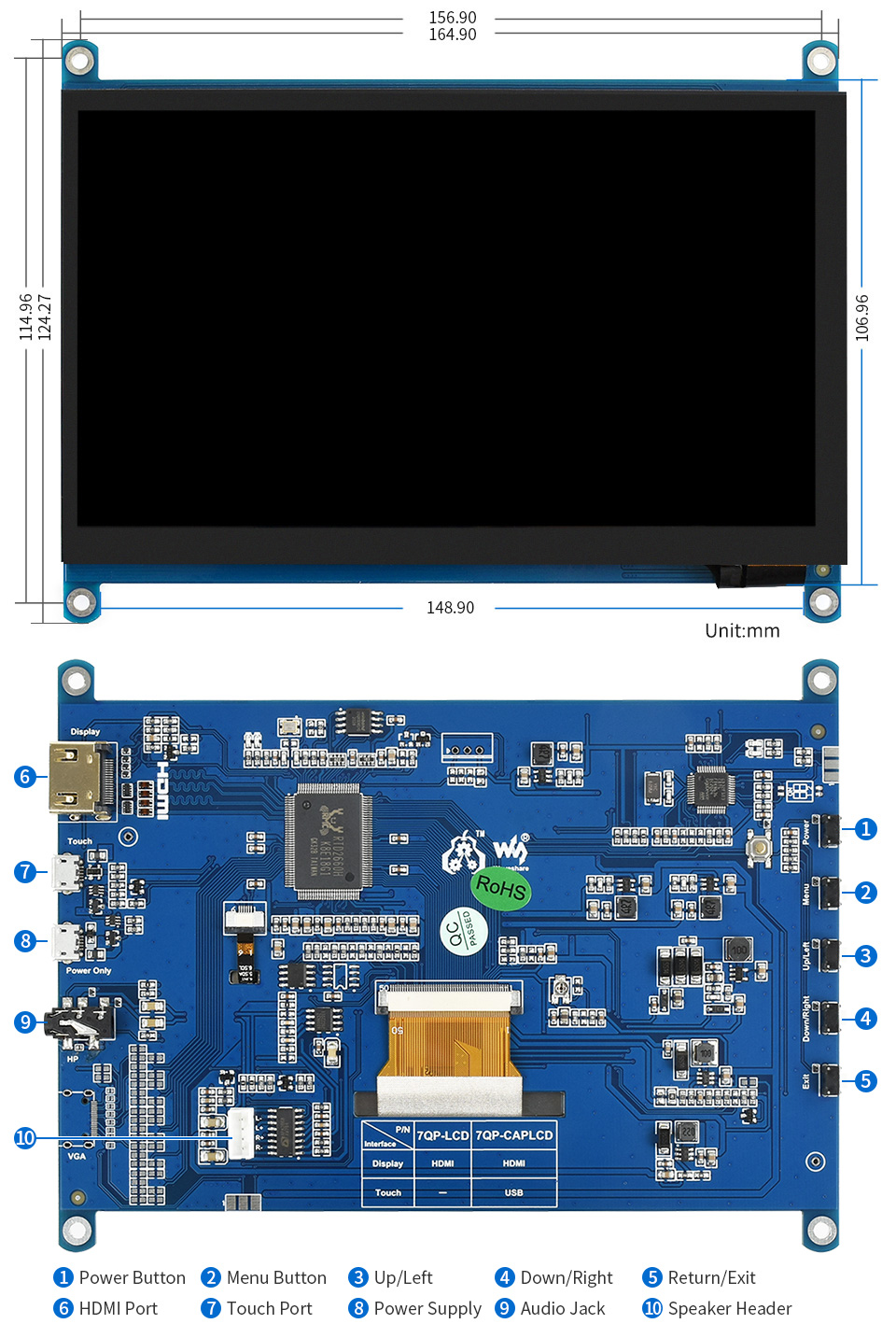

Appearance And Dimensions

Resources & Services

Wiki: 7QP-CAPLCD
