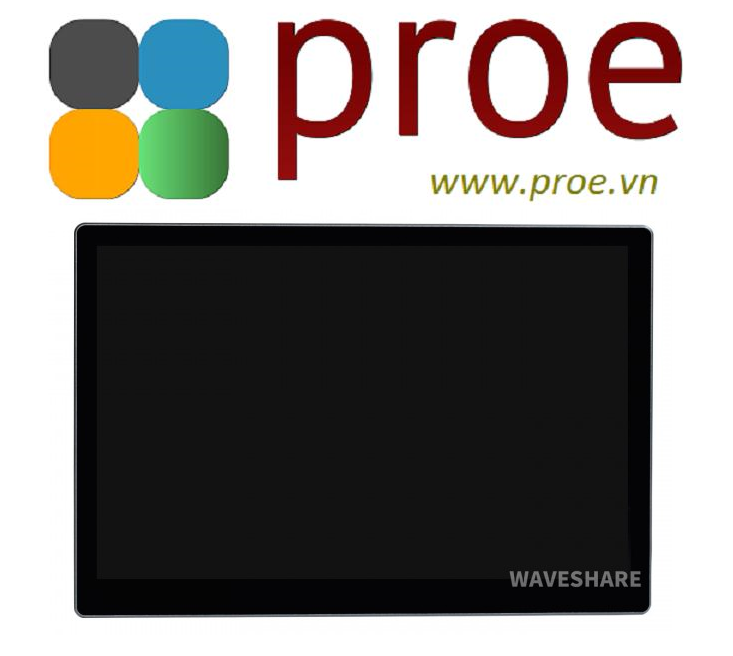

9inch Capacitive Touch Monitor, 2560×1600 2K Resolution, IPS, Mini HDMI, Fully Laminated

9inch Capacitive Touch Monitor, Mini HDMI Port, 2560×1600 2K Resolution, IPS Screen, Fully Laminated Toughened Glass Panel, Various Systems & Devices Support Including Raspberry Pi, Jetson Nano, PC...

9" 2K Touch Monitor

• Size9"
• Resolution2560×1600
• Display PortMini HDMI
• Display PanelIPS
• Viewing Angle178°
• Touch TypeCapacitive
• Touch Points10-Points
• Touch PortUSB
• Touch PanelToughened Glass
• Touch Panel TechFully Laminated
• SoundHi-Fi Speaker
• Audio Output3.5mm Jack
• EnclosureCNC Process Alloy

Device & System Support

Raspberry Pi

Supports Raspbian, 10-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single point touch, driver free

PC

Supports Windows 10 / 8.1 / 8 / 7, 10-points touch, driver free

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

Working With AI Computer Jetson Nano

Working With Mini PC

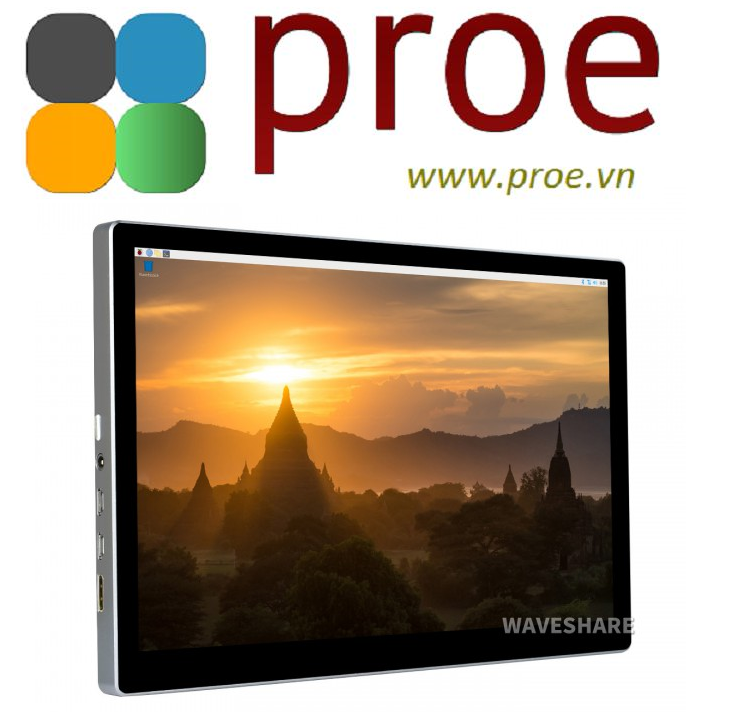

Display Panel

IPS Panel, Up To 70% NTSC Color Gamut, Up To 350nit Brightness

2K High Resolution

2560×1600 High Resolution, Presents Distinct & Ddetailed Picture

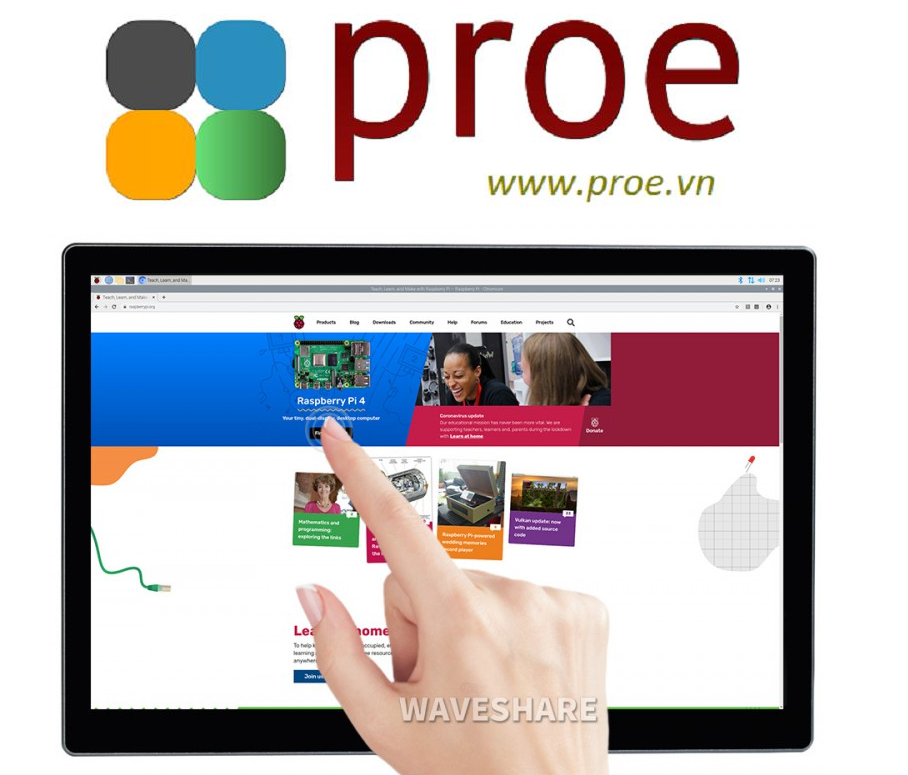

Touch Control

1) up to 10-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel. 3) fully laminated screen, better display experience, dust-proof.

Audio Feature

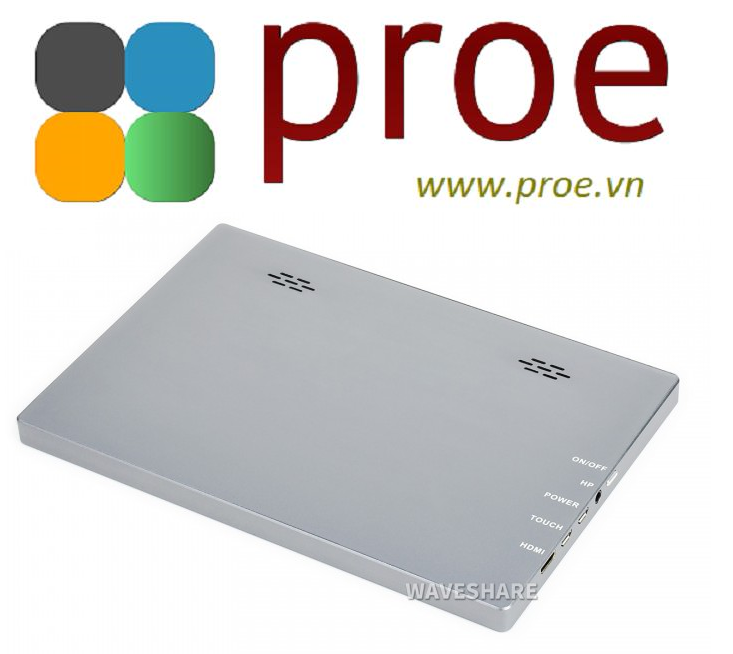

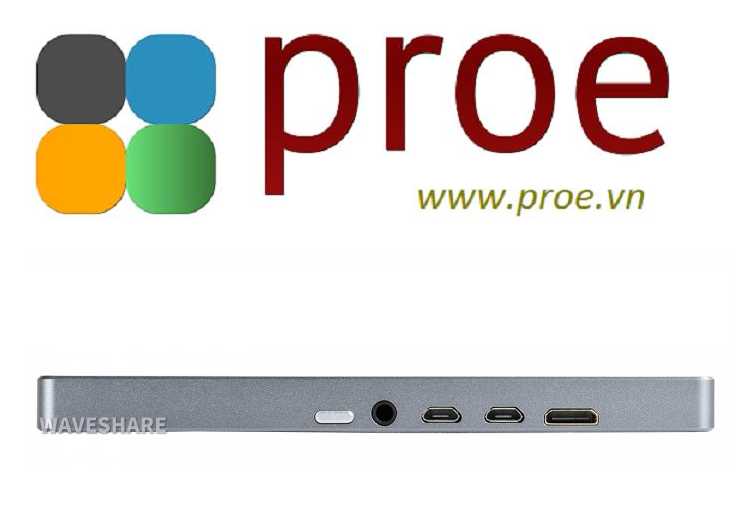

Appearance And Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/9inch_2560x1600_Monitor

Weight: 0.621 kg

1. 9inch 2560x1600 Monitor
2. Mini HDMI to Micro HDMI cable
3. Mini HDMI to HDMI cable
4. USB-A to Micro-B cable
5. Triangular stand
