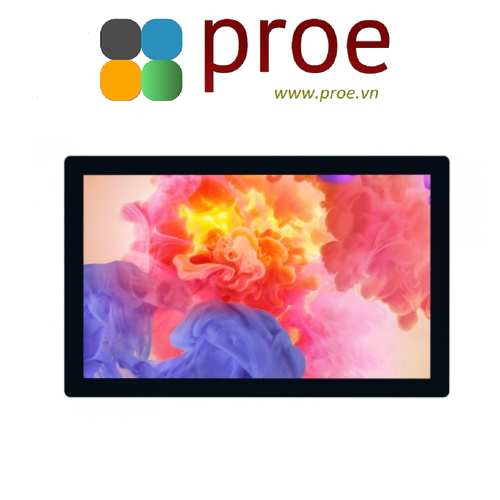

9inch QLED Quantum Dot Display, 1280×720, Toughened Glass Panel, HDMI Interface, Wide Color Gamut

 PACKAGE CONTENT

1. 9HP-CAPQLED-B ×1
2. HDMI flat cable ~1m ×1
3. HDMI to Micro HDMI adapter ×1
4. USB-A to Micro-B cable ~1.2m ×1
5. Button board cable ×1
6. Button board ×1
7. OPTIONS 5V 3A Power supply ×1
8. Triangular stand ×1

DESCRIPTION

9inch QLED Quantum Dot Display, 1280×720, Toughened Glass Panel, HDMI Interface, Wide Color Gamut

9″ QLED Touch Display

High Resolution | Multi-Point Touch | Full Color

• Size9″
• Resolution1280×720
• Display InterfaceHDMI
• Display PanelQLED Quantum Dot
• Viewing Angle178°
• Touch TypeCapacitive
• Touch Points10-Point
• Touch PortUSB
• Touch PanelToughened Glass
• OSD MenuBrightness/Contrast
• BrightnessSupports DCC/CI
  control
• Brightness450cd/m²
• Audio Output 13.5mm Jack
• Audio Output 24PIN Header

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali/ WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single point touch, driver free

Core3566

Supports Linux, 10-point touch, driver free

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

Connection Examples

Working With Raspberry Pi 4B

Working With Raspberry Pi 3B+

Working With PC

for reference only, the above controller boards or host are NOT included

QLED Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

QLED Quantum Dot Technology

Wider Color Gamut

Color Gamut Of This QLED Display Is Up To: SRGB 100%, NTSC 92%

More Pure Chroma

Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid

Longer Lifetime

Due To Its Inorganic Characteristic, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation

Capacitive 10-Point Touch

1. up to 10-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel

Supports DDC/CI Brightness Adjustment

Interface Introduction

Application Example

* for reference only, the Raspberry Pi board is NOT included

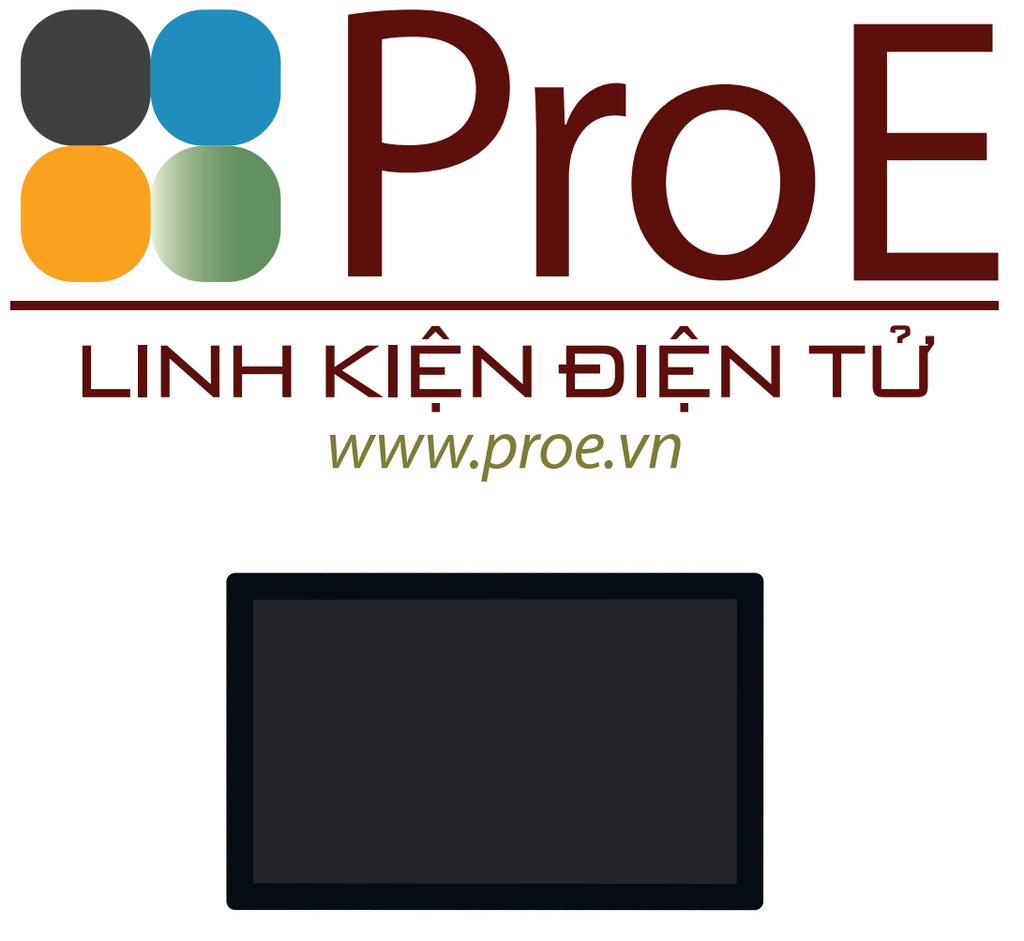

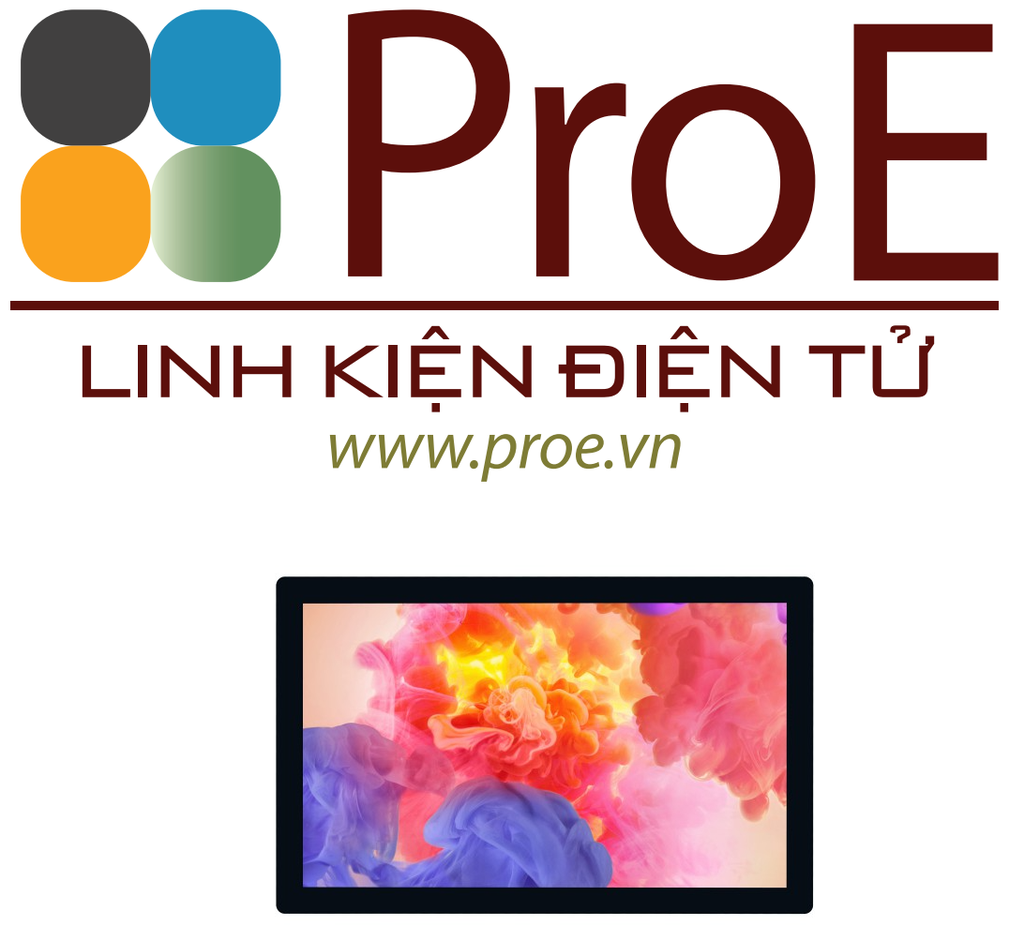

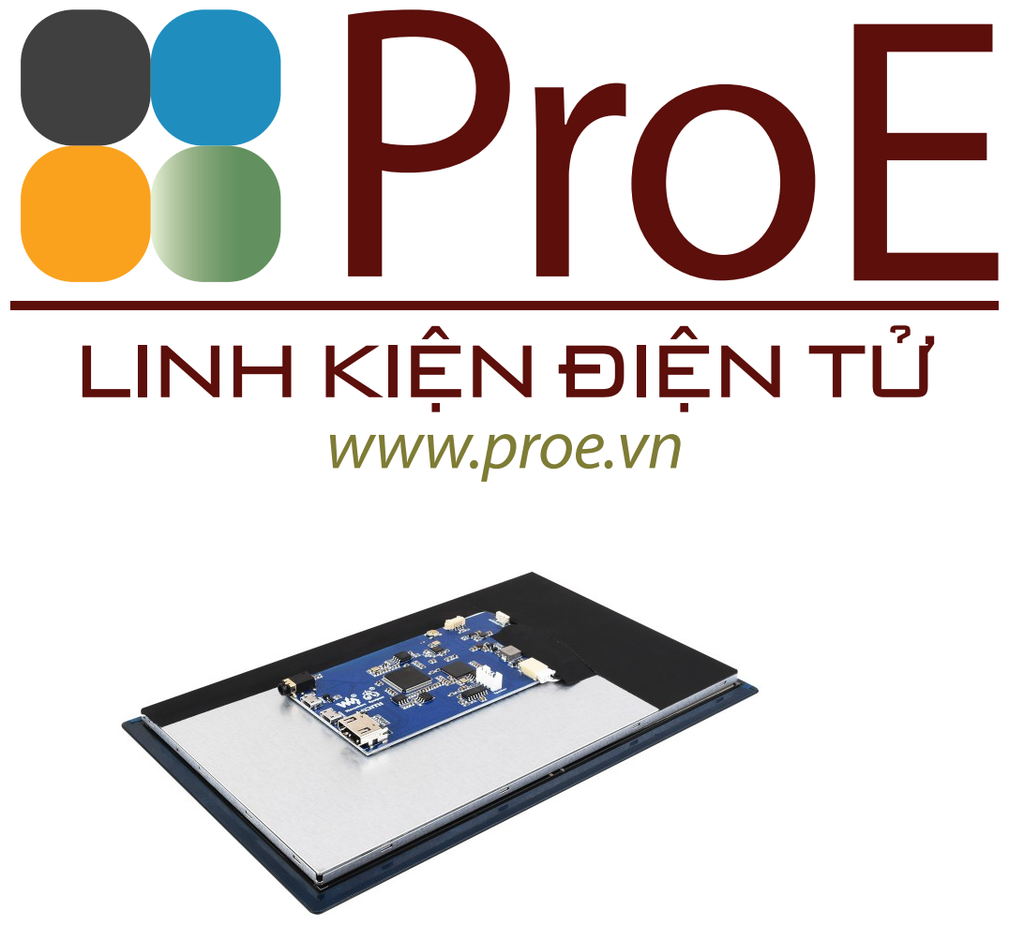

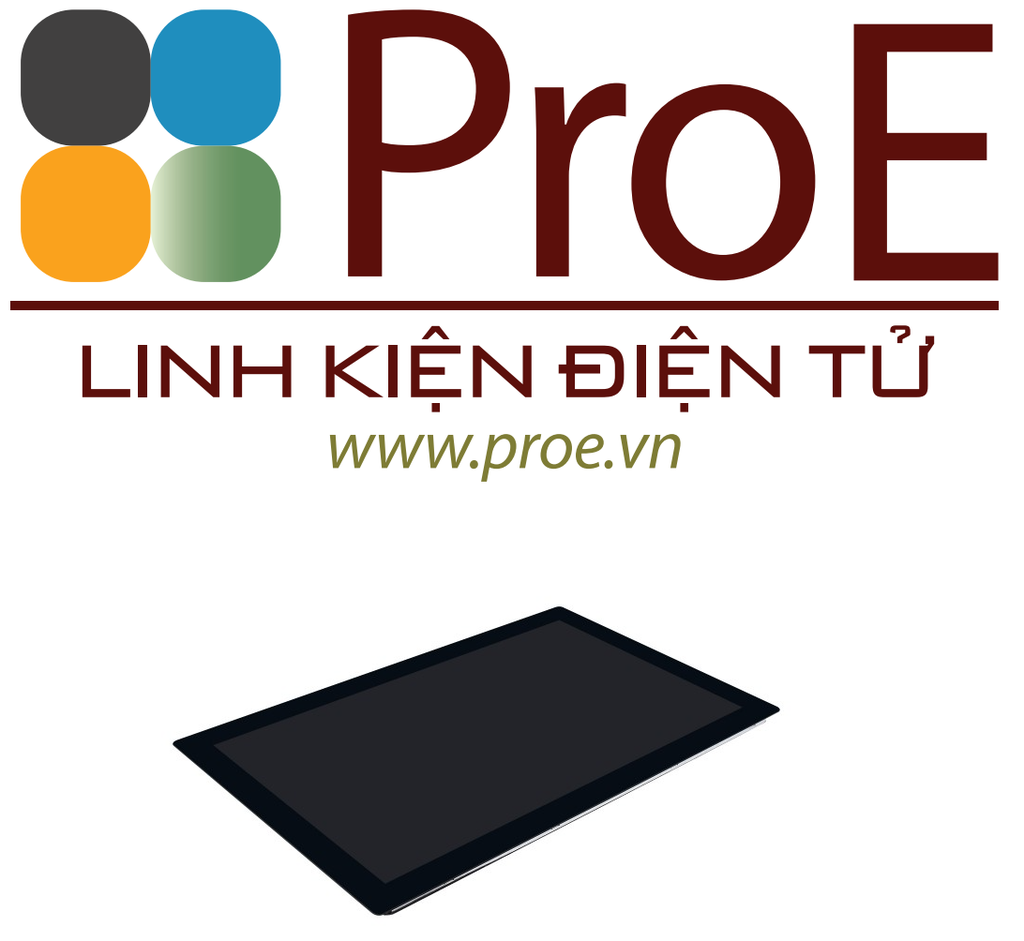

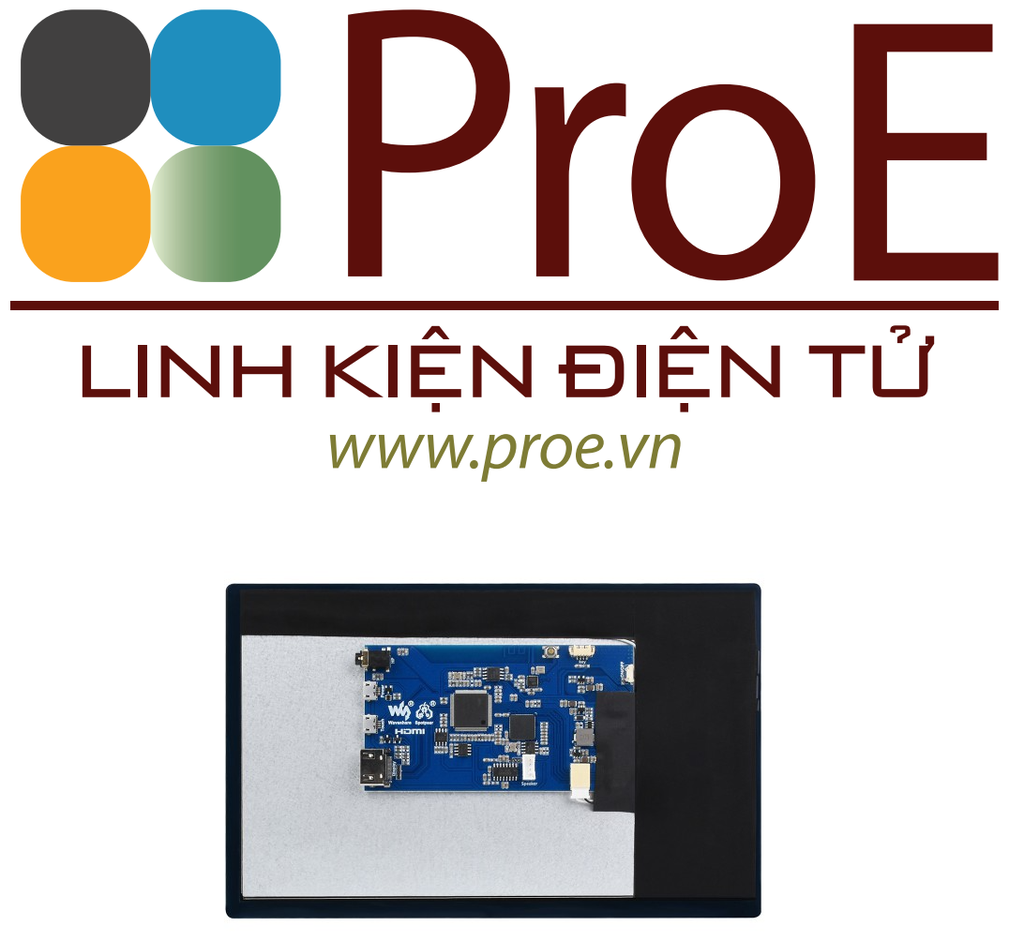

Product Show

Dimensions

Support Touch Screen Customization

Support The Following Ways To Customize The Touch Screen Display In Bulk Order

Wiki: www.waveshare.com/wiki/9HP-CAPQLED-B
