Arducam High Quality IR-CUT Camera for NVIDIA® Jetson
- Mã sản phẩm: B0274
- Nhà sản xuất: uctronics
- Website hỗ trợ: https://www.proe.vn
4.200.000₫

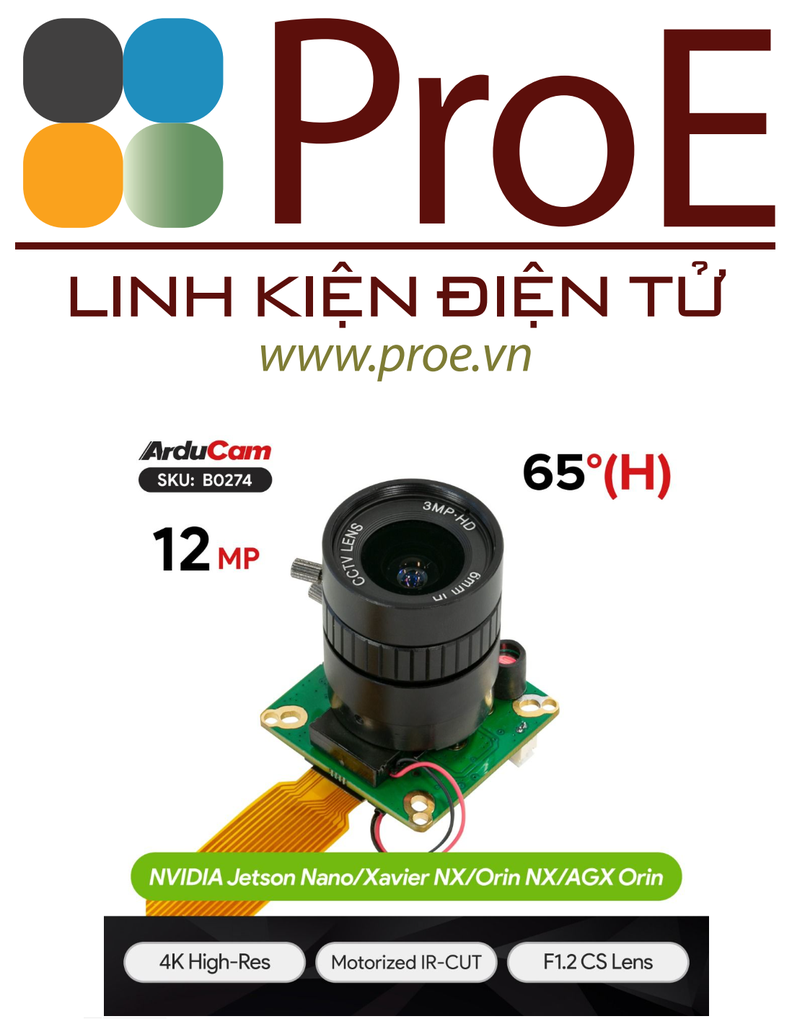

Arducam High Quality IR-CUT Camera for NVIDIA® Jetson Nano/Xavier NX/AGX Orin/Orin Nano/Orin NX, 12.3MP 1/2.3 Inch 477P HQ Camera Module with 6mm CS Lens
Overview
This Arducam module uses the same 12MP image sensor as the Raspberry Pi High-Quality Camera, but offers a mechanical IR cut-off filter switched automatically based on light conditions. The official RPi HQ camera is not sensitive to infrared, and there won’t be a NoIR version. On the contrary, this Arducam camera module not only offers sensitivity to infrared but also keeps the natural feeling during daylight. It’s fully compatible with Jetson Nano/Xavier NX with a camera connector.
Currently, NVIDIA official has released the NVIDIA Jetson Orin series developer board. Based on it, we have also adapted the camera to the NVIDIA Jetson Orin kernel.
★KERNEL CAMERA DRIVER USED
This camera relies on kernel drivers to work – one kernel version, one camera driver. Note on supported Nvidia Jetson Boards and Jetpack versions, please refer to Supported JetPack Version for Different NVIDIA Jetson Platforms to ensure compatibility.
★ SUPPORTED PLATFORM DISCLAIMER
This camera is specifically designed for the official NVIDIA® Jetson™ Developer Kit by default and does not support third-party carrier boards.
★ADDITIONAL ACCESSORY INSTRUCTIONS
The 22-22 pin FPC Cable is included in the package. But please note that: If you are using an AGX Orin, an additional camera adapter (B0473) is required.
Specifications
Camera
| Still Resolution | 12.3 Megapixels |
| Video Modes |
NVIDIA Jetson Nano/Xavier NX/Orin NX/Orin Nano/AGX Orin: L4t 32.x: 4032x3040@30fps, 3840x2160@30fps, 1920x1080@60fps L4t 35.x: 4032x3040@20fps, 3840x2160@30fps, 1920x1080@60fps |
| Sensor Resolution | 4056 x 3040 pixels |
| Sensor image area | 6.287mm x 4.712 mm (7.9mm diagonal) |
| Pixel Size | 1.55 µm x 1.55 µm |
| Optical Size | 1/2.3" |
| IR Sensitivity | Switch the IR cut filter on/off automatically |
Lens
| Focus Type | Manual Focus |
|---|---|
| Focal Length | 6mm |
| F.NO | F1.2 |
| Field of View(FOV) | 65°(H) |
| Lens Mount | CS-Mount |
| MOD | 0.2mm |
| Back Focal Length | 7.53mm |
| Lens Dimension | Φ30×31mm |
Electrical & Mechanical
| Camera Board Size | 38 × 38mm |
|---|---|
| Hole Pitch | Compatible with 29mm, 30mm, 34mm |
| Peaking Current | 300mA |
Lens Options
CS-Mount Lens
| SKU | |||||||
|
Part No |
CS17320M12 |
CS2316ZM02 |
CS2308ZM05 |
CS2008ZM05A |
CS1812ZM03 |
CS2325ZM01 |
CS1806ZM06 |
| Optical Format | 1/1.7″ | 1/2.3' | 1/2.3'' | 1/2.3'' | 1/2.3'' | 1/2.3'' | 1/2.3'' |
| EFL(mm) | 3.2 | 16.00 | 8.00 | 8.00 | 12.00 | 25.00 | 6.00 |
| BFL(mm) | 5.94 | 7.53 | 6.50 | 7.53 | 7.53 | 8.03 | 8.03 |
| F/NO | 2.0 | 1.2 | 1.4 | 1.2 | 1.6 | 1.2 | 1.4 |
| HFOV on 1/2.3‘’ Cam | 120° | 24° | 50° | 50° | 30° | 14° | 65° |
| MOD | 0.3m | 0.20m | 0.30m | 0.20m | 0.20m | 0.20m | 0.30m |
|
Size(mm) |
28×30 | 30×29 | 28×23 | 30×29.5 | 30×29 | 28×29 | 28×28.5 |
NOTE: The CS-Mount Lens kit for the HQ Camera module, please check LK004, 5 lenses are included.
C-Mount Lens
| SKU | LN043 | LN044 | LN045 | LN047 | |||||||
|
Part No |
C2308ZM50 |
C1550ZM01 |
C1535ZM02 |
C20280M12 |
C2004ZM12 |
C1016ZM02 |
C1705ZM07 |
C1508ZM04 |
C1512ZM03 |
C1516ZM02 |
C1535ZM01 |
| Optical Format | 1/2.3″ | 2/3″ | 2/3″ | 1/2" | 1/2" | 1'' | 1/1.7" | 2/3" | 2/3" | 2/3" | 2/3" |
| EFL(mm) | 8-50 | 50.00 | 35.00 | 2.8-12 | 4-12 | 16.00 | 5.00 | 8.00 | 12.00 | 16.00 | 35.00 |
| BFL(mm) | 17.53 | 17.53 | 17.53 | 17.53 | 17.53 | 17.53 | 17.53 | 17.53 | 17.53 | 17.53 | 17.53 |
| F/NO | 1.4 | 1.8-16 | 1.6-16 | 1-1.6 | 1-1.6 | 1.4-1.6 | 1.6-16 | 1.6-16 | 1.6-16 | 1.6-16 | 1.7-16 |
| HFOV on 1/2.3‘’ Cam | 45°-5.35° | 7° | 18° | 120°-38° | 80°-32° | 24° | 65° | 44° | 31° | 24° | 10° |
| MOD | 0.2m | 0.50m | 0.30m | 0.30m | 0.20m | 0.20m | 0.15m | 0.15m | 0.20m | 0.20m | 0.20m |
|
Size(mm) |
40 x 68.3 | 34×40.5 | 50×35.5 | 44.5×58.5 | 33×43 | 39×50 | 39×41.5 | 39×41 | 34×41.5 | 33×36.5 | 35×30 |
NOTE : For the sample order, please order the lens you need to replace separately and Contact us in advance for customization if you would like to replace the lenses in bulk.
Package Includes:
- 1 pcs 12.3MP IR-CUT camera module
- 1 pcs 6mm focal length CS-mount camera lens
- 1 pcs 300mm/11.8inch 15pin to 22pin camera cable for pi A&B series
- 1 pcs 300mm/11.8inch 22pin to 22pin camera cable
Documentation
