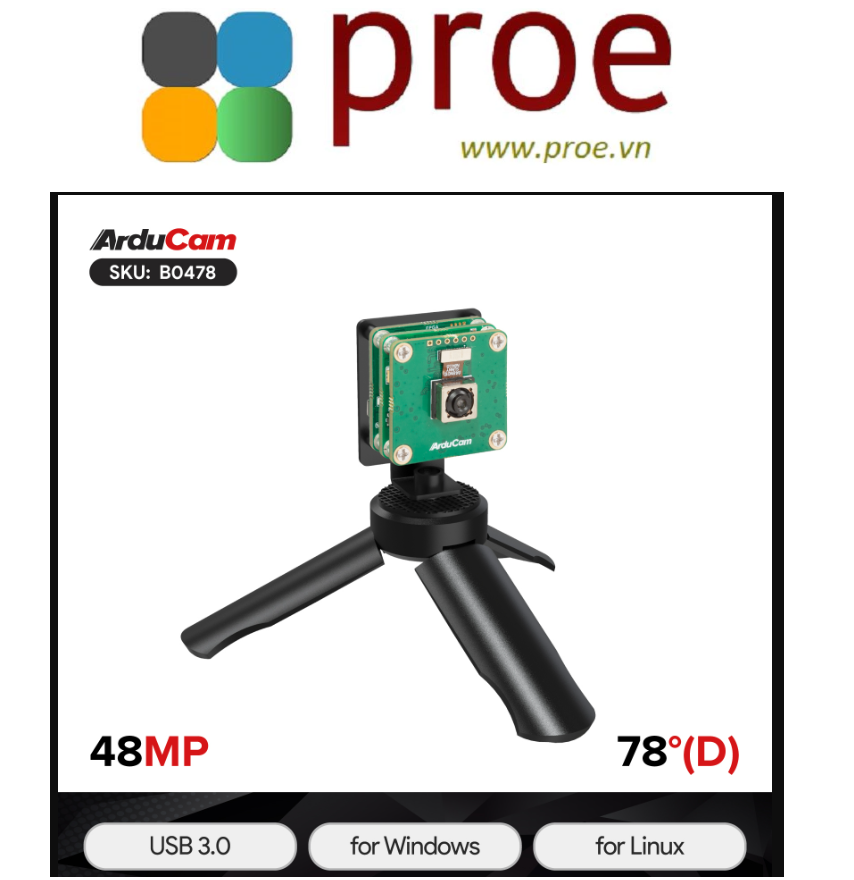

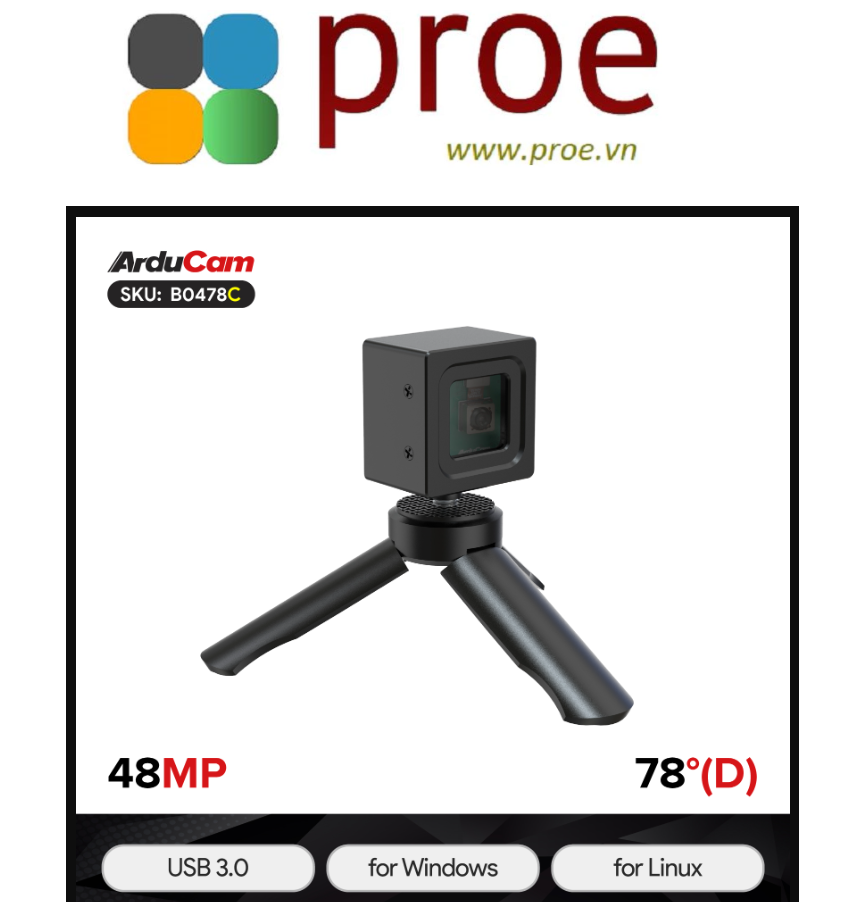

Arducam IMX586 48MP Motorized Focus USB 3.0 Camera Module
- Mã sản phẩm: B0478C
- Nhà sản xuất: uctronics
- Website hỗ trợ: https://www.proe.vn
6.900.000₫
Giá thị trường:
Overview
This IMX586 USB 3.0 camera boasts a maximum resolution of 48 megapixels utilizing the advanced IMX586 image sensor. With a maximum still resolution of 8000×6000, users can capture incredibly detailed images. Moreover, the camera’s frame rate can reach up to 120fps@720P, ensuring smooth and fluid video capture.
With its high quality motorized focus lens offering a field of view of 78°(D), this camera captures stunningly accurate images.
Arducam latest USB 3.0 camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows and Linux OSs, no additional drivers are needed, simplifying the setup process. Moreover, its backward compatibility with USB 2.0 host ports ensures flexibility and seamless connectivity.
Applications
- Machine Vision
- Video Surveillance
- 3D Scanning and Metrology
- Live Streaming
- Video Conferencing
Features
- Utilizing a High SNR 48MP image sensor, achieving a maximum still resolution of 8000×6000 pixels.
- Enjoy programmable frame rates, with the potential to reach up to 120fps at 720p resolution.
- Proprietary on-board ISP advances image enhancement: de-Bayer, gamma, BLC, AE, AWB, CCM, RGB2YUV.
- Features an 78° DFoV motorized lens for exceptional image quality.
- Effortless compatibility with Windows and Linux through plug-and-play functionality, eliminating the need for additional drivers.
Specifications
| Image Sensor | |
| Sensor | IMX586 |
|---|---|
| Still Resolution | 48 Megapixels |
| Color Filter Type | Color |
| Shutter Type | Rolling |
| Optical Size | 1/2″ |
| Output Format | YUY2 |
| Pixel Size | 0.8 µm x 0.8 µm |
| Sensor Active Area | 8000(H)×6000(V) |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
| Frame Rate (USB 3.0) | 1280*720@120fps, 1920*1080@60fps,2000*1500@50fps,3840*2160@20fps,4000*3000@14fps,8000*6000@3fps |
| Frame Rate (USB 2.0) | 1280*720@10fps |
| Lens | |
| Focus Type | Motorized Focus |
| FOV | 78°(D)×65°(H)×52°(V) |
| Lens Mount | Stock Lens |
| F.NO | F1.8 |
| E.F.L | 5.1mm |
| Default Focus Range | 3m-∞ |
| Programmable Focus Range | 10cm-∞ |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
| USB Interface | |
| Interface | USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts |
| Connector | Type-C reversible interface connector |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Requirements | Max: 2W , Min: 0.66W |
| Camera Board Size | 34×34 mm |
| Functionality and Compatibility | |
| Supported OS | Windows, Linux |
| Recommend Sample Application | PotPlayer for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Focus (Manual), Exposure (Manual/Auto) |
Package Including
- 1 x IMX586 USB3.0 Camera Module with Back Cover and Tripod Adapter
- 1 x 1m USB A to Type-C Cable
Notes
