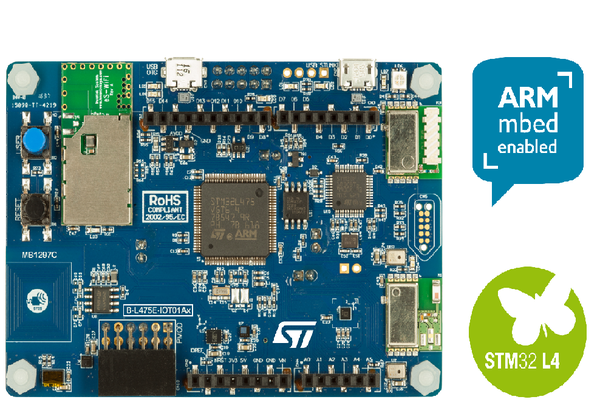

B-L475E-IOT01A1 STM32L4 Discovery kit IoT node, low-power wireless, BLE, NFC, SubGHz, Wi-Fi

The B-L475E-IOT01A Discovery kit for IoT node allows users to develop applications with direct connection to cloud servers.

The Discovery kit enables a wide diversity of applications by exploiting low-power communication, multiway sensing and ARM^® Cortex^® -M4 core-based STM32L4 Series features.

The support for Arduino Uno V3 and PMOD connectivity provides unlimited expansion capabilities with a large choice of specialized add-on boards.

Key Features

• Ultra-low-power STM32L4 Series MCUs based on ARM^® Cortex^® -M4 core with 1 Mbyte of Flash memory and 128 Kbytes of SRAM, in LQFP100 package
• 64-Mbit Quad-SPI (Macronix) Flash memory
• Bluetooth^® V4.1 module (SPBTLE-RF)
• Sub-GHz (868 or 915 MHz) low-power-programmable RF module (SPSGRF-868 or SPSGRF-915)
• Wi-Fi^® module Inventek ISM43362-M3G-L44 (802.11 b/g/n compliant)
• Dynamic NFC tag based on M24SR with its printed NFC antenna
• 2 digital omnidirectional microphones (MP34DT01)
• Capacitive digital sensor for relative humidity and temperature (HTS221)
• High-performance 3-axis magnetometer (LIS3MDL)
• 3D accelerometer and 3D gyroscope (LSM6DSL)
• 260-1260 hPa absolute digital output barometer (LPS22HB)
• Time-of-Flight and gesture-detection sensor (VL53L0X)
• 2 push-buttons (user and reset)
• USB OTG FS with Micro-AB connector
• Expansion connectors:
  • Arduino™ Uno V3
  • PMOD
• Flexible power-supply options:
  • ST LINK USB V_BUS or external sources
• On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage, virtual COM port and debug port
• Comprehensive free software HAL library including a variety of examples, as part of the STM32Cube package
• Support of a wide choice of Integrated Development Environments (IDEs) including IAR^™ , Keil^® , GCC-based IDEs, ARM^® mbed Enabled^™
• ARM^® mbed Enabled^™ (see http://mbed.org)
