Barcode Scanner Module (C)

PACKAGE CONTENT

Weight: 0.059 kg
1. Barcode Scanner Module (C) x1
2. USB type A plug to micro B plug cable x1
3. PH2.0 4Pin cable x1

1   2         3


2D Codes Scanner Module (C), Supports High Accuracy Barcode Scanning, Barcode/QR Code Reader

2D Codes Scanner Module

1D/2D Codes Recognition | High Accuracy | Screen Scanning

The Barcode Scanner Module (C) is a Barcode/QR codes scanner module, by using the intelligent image recognition algorithm, it can decode the 1D or 2D code on paper or screen fastly and accurately. Supports a variety of barcode formats and high accuracy, high speed and high contrast barcode scanning. Onboard USB and UART interfaces, can be directly plugged into a computer, or be easily integrated into kinds of embedded devices.

Comparison

MODEL		Barcode Scanner Module (C)	Barcode Scanner Module
RESOLUTION		640 × 480	648 × 488
SCAN ANGELS		pitch ±60°, skew ±60°, roll 360°	pitch ±60°, skew ±65°, roll 360°
SCAN MODE		Sensing, Continuous, Manual (default)
ACCURACY		1D Codes 3mil 2D Codes 5mil	-
COMMUNICATION INTERFACE		USB keyboard mode (default), USB virtual port, UART port
LIGHT SOURCE		White (Lighting) + Green (Aiming), both are visible light	White (Lighting) + Red (Aiming), both are visible light
POWER SUPPLY		5V / 3.3V	5V
CURRENT	OPERATING	250mA	135mA
	STANDBY	20mA	58mA
	BOOT	258mA	-
TEMPERATURE	OPERATING	-20 ~ +60°C
	STORAGE	-40 ~ +70°C	-30 ~ +70°C

Decoding Capability

* Note: some supported barcode formats are disabled by default, you can scan 'configuration code' to enable it

Onboard Resource

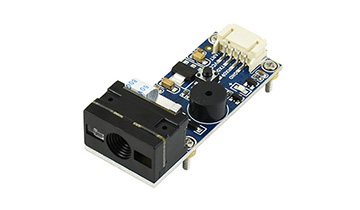

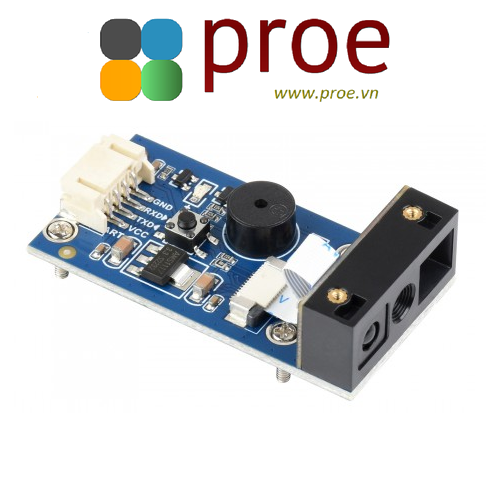

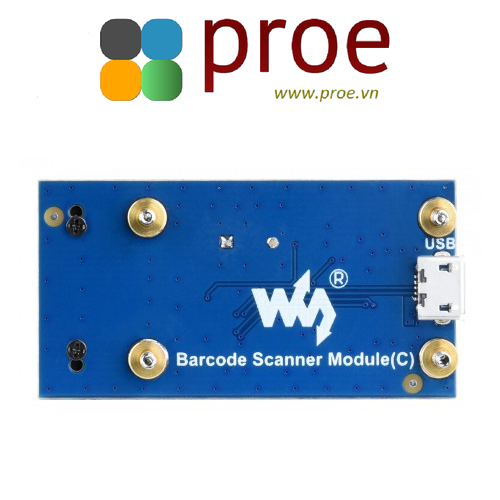

Product Show

Outline Dimensions

Wiki: www.waveshare.com/wiki/Barcode_Scanner_Module_(C)
