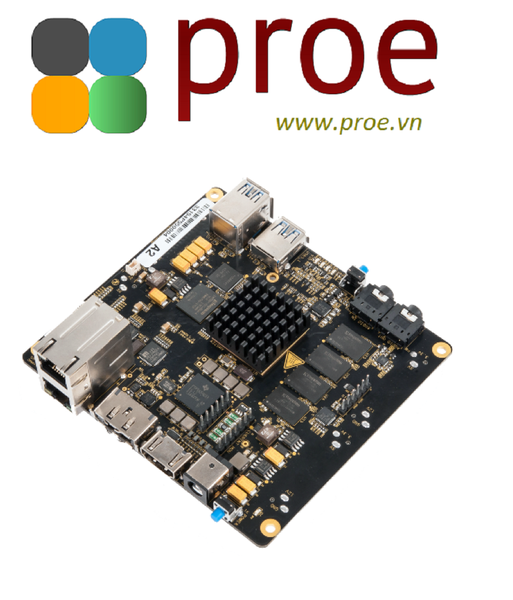

BeagleBoard-X15

What is BeagleBoard-X15?

BeagleBoard-X15 is the top performing, mainline Linux enabled, power-users’ dream board with a core tailored for every computing task and a highspeed interface for every connectivity need. Give your algorithms room to stretch!

Processor: TI AM5728 2×1.5-GHz ARM® Cortex-A15

• 2GB DDR3 RAM
• 4GB 8-bit eMMC on-board flash storage
• 2D/3D graphics and video accelerators (GPUs)
• 2×700-MHz C66 digital signal processors (DSPs)
• 2×ARM Cortex-M4 microcontrollers (MCUs)
• 4×32-bit programmable real-time units (PRUs)

Connectivity

• 2×Gigabit Ethernet
• 3×SuperSpeed USB 3.0 host
• HighSpeed USB 2.0 client
• eSATA (500mA)
• full-size HDMI video output
• microSD card slot
• Stereo audio in and out
• 4×60-pin headers with PCIe, LCD, mSATA
• and much more...

See quick start guide

Software Compatibility

• Debian
• Android
• Ubuntu
• Cloud9 IDE on Node.js
• plus much more
