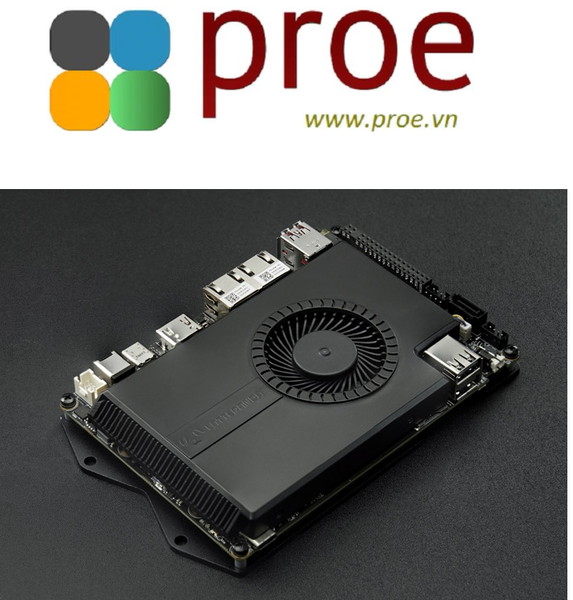

FEATURES

• Ultimate Performance: The Intel Core i5-1340P processor has 12 cores and 16 threads with a maximum turbo frequency of 4.60 GHz (performance-core) and 3.4 GHz (efficient-core), making it a powerful and efficient processor for multitasking and demanding applications.
• Lightning-fast Memory: The dual-channel LPDDR5-6400 RAM with a capacity of 16GB ensures smooth and fast performance.
• High-level Graphics Capability: as it features the Intel Iris Xe Graphics, LattePanda Sigma supports multiple display outputs with high resolutions and refresh rates.
• Quad 4K displays: Experience unparalleled visual clarity with support for quad 4K displays, bringing your content to life like never before.
• User-friendly Interface Layout: plug and play with ease
• Rich Interfaces: Unlock limitless possibilities with rich interfaces, offering seamless connectivity and enhanced user experience.
• Diverse OS Support: Support Windows 10, Windows 11, and Ubuntu operating systems

APPLICATIONS

SPECIFICATION

Processor

• CPU: Intel® Core™ i5-1340P
• Cores / Threads: 12C(4P+8E) / 16T
• Max Turbo Frequency: 4.60 GHz(Performance-core), 3.4 GHz(Efficient-core)
• L2 Cache: 12 MB
• Base Power: 28 W
• Graphics: Intel® Iris® Xe Graphics
• Max Dynamic Frequency: 1.45 GHz
• Execution Units: 80
• Co-processor: Microchip® ATmega32U4-MU

Memory

• Technology: Dual-Channel LPDDR5-6400
• Capacity: 16GB

Storage

• Drive Form Factor: M.2 SSD (NVMe/SATA), SATA Drive

Wireless

• Wireless Form Factor: M.2 Wireless Module (PCIe/CNVio)

Display

• HDMI Port: HDMI 2.1, Up to 4096 x 2304 @ 60Hz
• USB Type-C Port: DP 1.4a, Up to 7680 x 4320 @ 60Hz (One Monitor)
• Embedded Display Port: eDP 1.4b, Up to 4096 x 2304 @ 120Hz

External I/O

• USB Type-A: 2 x USB2.0 (480Mbps)
            2 x USB3.2 Gen 2 (10Gbps)
• USB Type-C: 2 x Thunderbolt™ 4 (40Gbps)
• HDMI: HDMI 2.1
• Ethernet: 2 x 2.5GbE RJ45 Ports (Intel® i225-V Gigabit Ethernet Controller, Supports 10/100/1000/2500 Mbps, WOL)
• Power: 5.5mm x 2.5mm DC Jack
• Audio: 3.5mm Microphone Headphone Combo Connector
• Sim Card: Micro Sim Card Slot

Internal I/O

• USB 2.0: 2.0mm Pitch 4-Pin Connector, 480Mbps
• Fan: 1.27mm Pitch,12V 4-Wire Fan Connector, PWM Control
• SATA: SATA 6.0 Gb/s Data Connector, 2.0mm Pitch 4-Pin Power Connector
• Front Panel: 2.54mm Pitch 9-Pin Header, Supports Power, Reset, Power LED, HDD LED
• Front Audio Panel: 2.54mm Pitch 9-Pin Header, Supports High Definition Audio (HD), Line-Out, Mic-in
• COM: 2.54mm Pitch 9-Pin Header,Supports RS232, RS485
• GPIO: 2.54mm Pitch 34-Pin Header, Including ATmega32U4 I/O Pins, 5V Power Pins, S0/S3/S4 State Pins
• eDP: 0.5mm Pitch 40-Pin Connector, 4 Lanes

Expansion Slot

• M.2 M Key: Type 2280, Supports PCIe 3.0 x4
            Type 2280, Supports PCIe 4.0 x4
• M.2 B Key: Type 2242/2252/2280, Supports SATA III/PCIe 3.0 x1, USB2.0, USB3.0, SIM
• M.2 E Key: Type 2230, Supports PCIe 3.0 x1,USB2.0, Intel CNVio

Security

• TPM: Built-in TPM (2.0)

Power

• Power Input: 5.5mm x 2.1mm DC Jack: DC 12~20V
            USB Type C: PD 20V
• Power Adapter: 19V DC, 4.74A, 90W
• RTC Battery: CR1220 Battery Holder: 3V
  1.27mm Pitch 2-Pin Connector: 3V

Operating System

• Microsoft Windows: Windows 10, Windows 11
• Linux: Ubuntu 22.04

Environment

• Operating Temperature: 0~45℃
• Relative Humidity: 0%~80%

Dimension

• Form Factor: 3.5", 146 x 102 mm

DOCUMENTS

• Product Wiki

Documentation

•
• Pin-out Diagram
• Datasheets

Tutorials

• Installing Ubuntu Operating System
• Using eDP Touch Display
• Set up Auto Power-on

Download

• Operating System
• Drivers & Software
• 3D Model

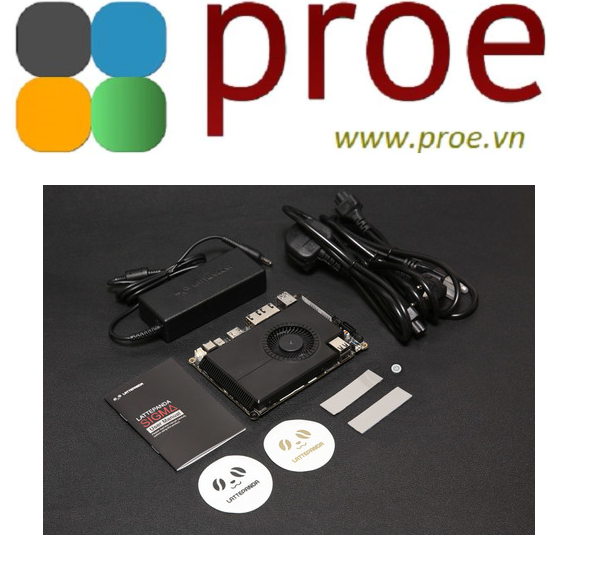

SHIPPING LIST

• LattePanda Sigma x1
• Active Cooling Fan (Assembled) x1
• Metal Protective Bottom Plate x1
• Thermal Pads for M.2 SSD x2
• Power Adapter with DC cable x1
• AC Cable(EU & US & UK) for power adapter x3
• RTC Battery (Assembled）x 1
• User Manual x 1
