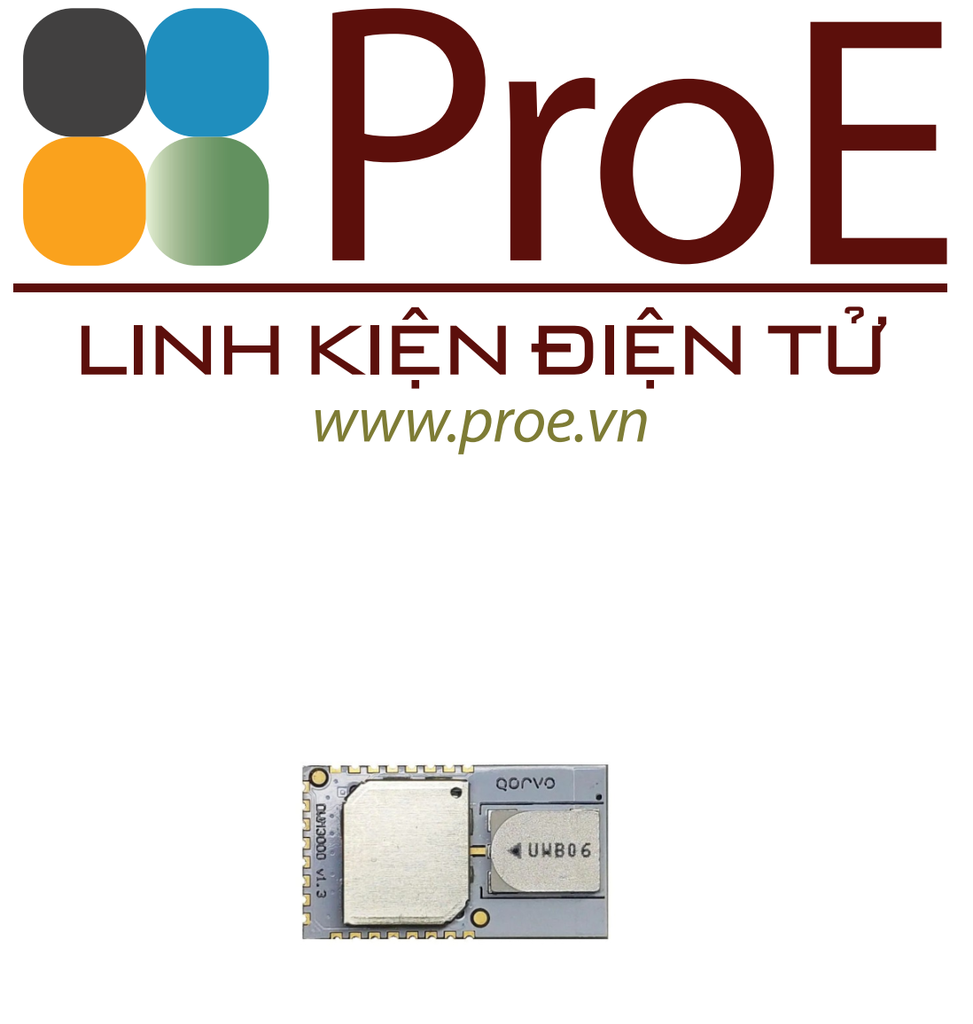

DWM3000 UWB Module

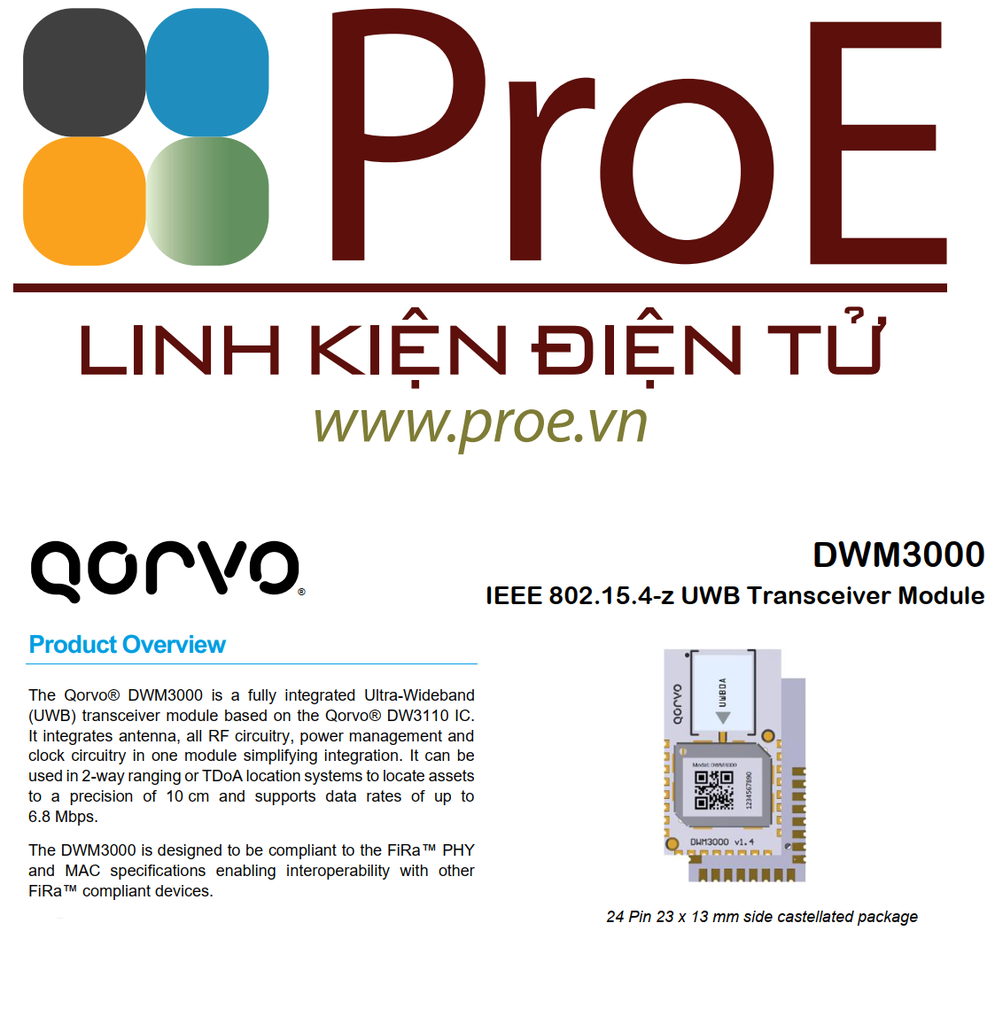

Product Overview

The Qorvo® DWM3000 is a fully integrated Ultra-Wideband (UWB) transceiver module based on the Qorvo® DW3110 IC. It integrates antenna, all RF circuitry, power management and clock circuitry in one module simplifying integration. It can be used in 2-way ranging or TDoA location systems to locate assets to a precision of 10 cm and supports data rates of up to 6.8 Mbps. The DWM3000 is designed to be compliant to the FiRa™ PHY and MAC specifications enabling interoperability with other FiRa™ compliant devices.

Key Features

   • IEEE 802.15.4-2015 and IEEE 802.15.4z BPRF compliant

   • Fully aligned with FiRa™ PHY, MAC and certification

development

   • Supports UWB Channels 5 (6.5 GHz) and 9 (8 GHz)

   • Programmable transmitter output power

   • Fully coherent receiver for maximum range and accuracy

   • Designed to comply with FCC & ETSI UWB spectral masks

   • Supply voltage VDD3V3: 2.5 V – 3.6 V

VDD1: 1.62 V – 3.6 V

   • Low power consumption

   • Data rates of 850 kbps, 6.8 Mbps

   • Maximum packet length of 1023 bytes for high data

throughput applications

   • Integrated MAC support features

   • SPI interface to host processor

   • Pin and pitch compatible with the DWM1000

Datasheet: Link
