ESP32-S3-Touch-LCD-1.28

PACKAGE CONTENT

Weight: 0.013 kg

ESP32-S3-Touch-LCD-1.28 x1

ESP32-S3 Development Board, With 1.28inch Round Touch LCD, Compact Size, Accelerometer And Gyroscope Sensor

ESP32-S3-Touch-LCD-1.28

Embedded GC9A01 Display Driver And CST816S Capacitive Touch Control Chip

Features

ESP32-S3-Touch-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.

Key features include:

• Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE), with onboard antenna
• Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
• Type-C connector, keeps it up to date, easier to use
• Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
• Onboard 3.7V lithium battery recharge/discharge header and 6 × GPIO pins via SH1.0 connector
• Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
• Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions

Small Size, Touch More Possibilities

Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function

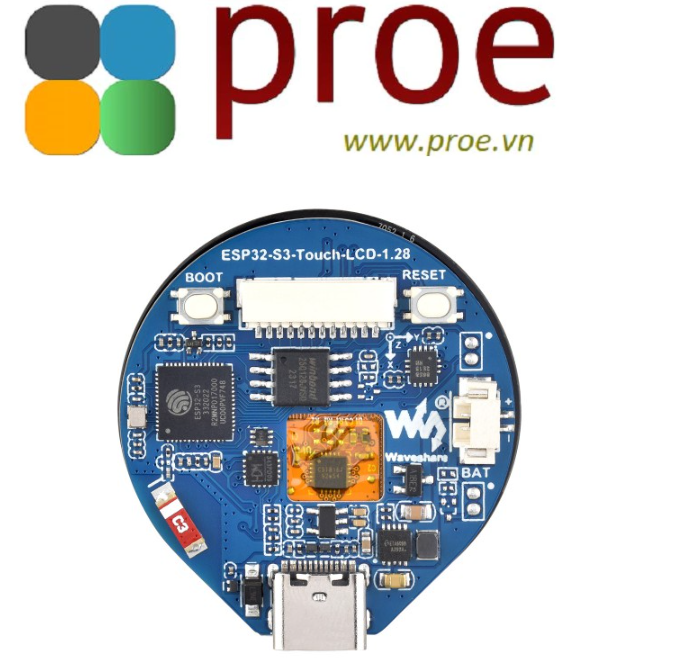

What's On Board

1. ESP32-S3R2
   The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 2MB PSRAM
2. W25Q128JVSIQ
   16MB NOR-Flash
3. CH343P
   USB to UART chip
4. ME6217C33M5G
   800mA output, low dropout, high rejection rate
5. ETA6096
   high-efficiency Lithium battery recharge manager

6. QMI8658
   6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer.
7. MX1.25 battery header
   MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
8. USB Type-C connector
   supports USB1.1 hosts and slave devices
9. RESET button
10. BOOT button
    Press it before resetting to enter download mode

Pin Definition

Product Show

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-S3-Touch-LCD-1.28
