F2G (FMC to GPIO)

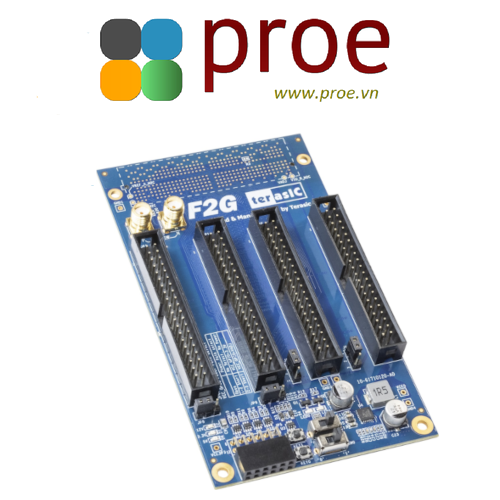

Terasic's F2G (FMC to GPIO) Card can be used with the FPGA host board that has the FMC/FMC+ connector.

It is designed to connect FMC I/Os to 2x20 and 2x6 expansion prototype connectors.

Specifications

• FMC High-Pin Count Interface
• I/O standard follows the definition of the mainboard without level shift
• Vcc power supply is 3.3V or adjustable according to the mainboard
• Four 2x20 GPIO Headers
• 2x6 TMD Header
• SMA Clock Input
• Button x2
• Switch x2
• LED x2

Block Diagram

Connectivity

Connect F2G with Apollo S10

Connect F2G with HAN Pilot Platform

Connect F2G with TR5
