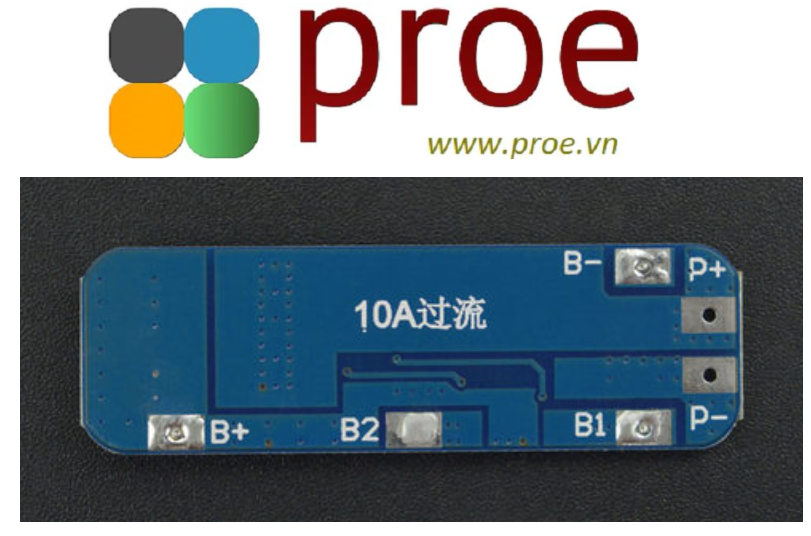

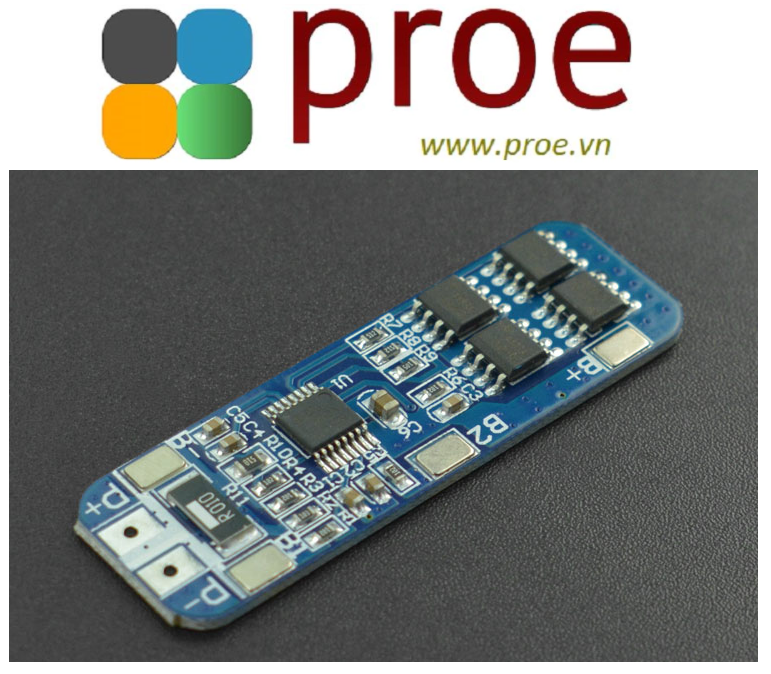

FIT0869 18650 Battery Protection Module (12V 10A)

INTRODUCTION

This battery charger allows you to easily gang three 18650 battery cells together to create a rechargeable battery pack.

Featuring sophisticated design, fine workmanship, and small size, the board supports overcharge, overdischarge, overcurrent, and short circuit protections.

When three 18650 batteries or polymer lithium batteries are combined in series, the maximum instantaneous current can reach 10A.

As a very important invention in history, the emergence of batteries has indeed solved many problems, and the 18650 battery is the oldest but commonly seen Type.

However, 18650 Battery burning or explosion happens when it’s charging and discharging. For the sake of safety, if you want to use 18650 lithium batteries for a long period, this battery protection module is highly recommended.

The module greatly enhances the service life and ensures the security of 18650 battery pack.

It is suitable for electronic engineers and makers to use in solar street lamp battery packs, monitoring backup power supplies and other electronic products.

FEATURES

• For three 18650 batteries or polymer lithium batteries combined in series
• 10.8V (Rated voltage of polymer battery)
• 11.1V (Rated voltage of 18650 or 3.7V lithium battery)
• 12.6V (Fully charged lithium battery)
• Discharge 10A (Refer to the maximum discharge current limit)
• Protection Mechanism: Overcharge, overdischarge, overcurrent, short-circuit protection

APPLICATIONS

• Solar street lamp battery packs
• Monitoring backup power supply

SPECIFICATION

• Model: HX-3S-01
• Working Temperature: -40~+50°C
• Size: 50*16* 1.0MM/1.97*0.63*0.04 inch
• Storage Temperature: -40~+80°C
• Max Working Current: 5-8A
• Overcharge Voltage Range: 4.25~4.35V±0.05V (single 18650 lithium battery)
• Transient Current: 9-10A
• Short-circuit Protection: can protect, delay self-recovery
• Quiescent Current: less than 6uA
• Internal Resistance: less than 60mΩ
• Over-discharge Voltage Range: 2.3~3.0V±0.05V

SHIPPING LIST

• 18650 Battery Protection Module (12V 10A) x1
