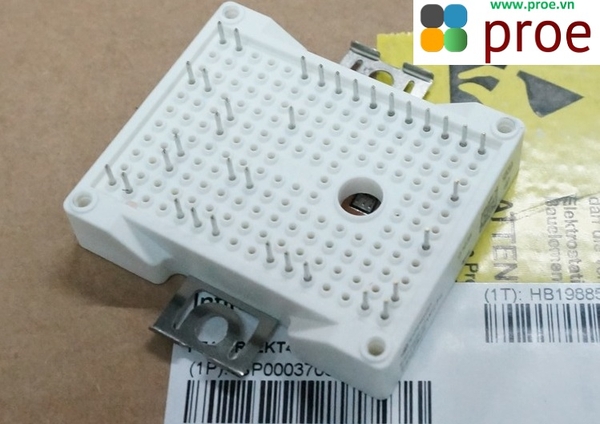

IGBT Module FP25R12W2T4

IGBT Module FP25R12W2T4 FP25R12W2T4BOMA1 Trans IGBT Module N-CH 1200V 39A 175000mW 23-Pin EASY2B-2 Tray

Specifications

• EU RoHS

  Compliant with Exemption

• Channel Type

  N

• Configuration

  Array 7

• Maximum Collector-Emitter Voltage (V)

  1200

• Typical Collector Emitter Saturation Voltage (V)

  1.85

• Maximum Power Dissipation (mW)

  175000

• Maximum Gate Emitter Voltage (V)

  ±20

• Maximum Continuous Collector Current (A)

  39

• Maximum Gate Emitter Leakage Current (uA)

  0.4

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  150

• Packaging

  Tray

• Supplier Package

  EASY2B-2

• Pin Count

  23

• Mounting

  Screw

• Package Height

  12

• Package Length

  62.8

• Package Width

  56.7

• PCB changed

  23
