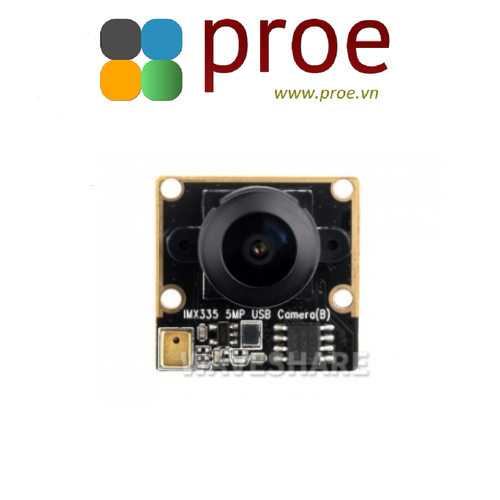

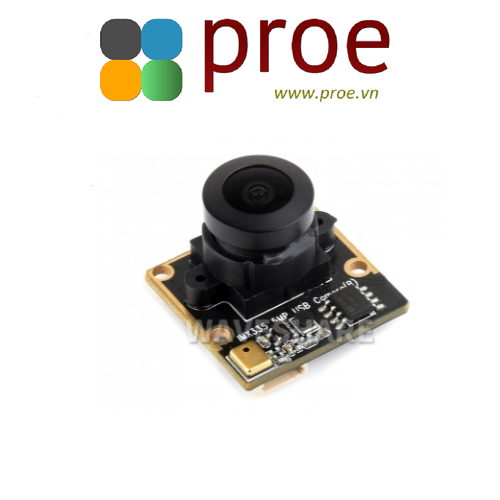

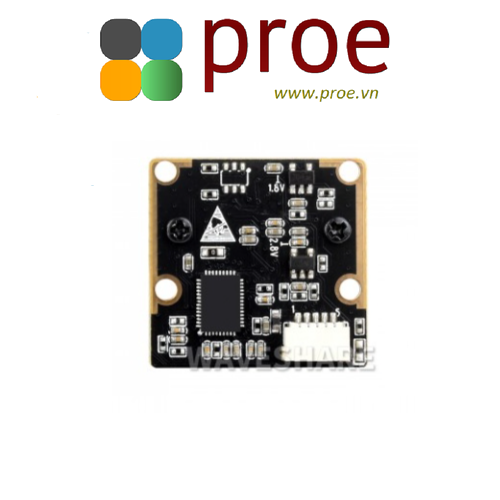

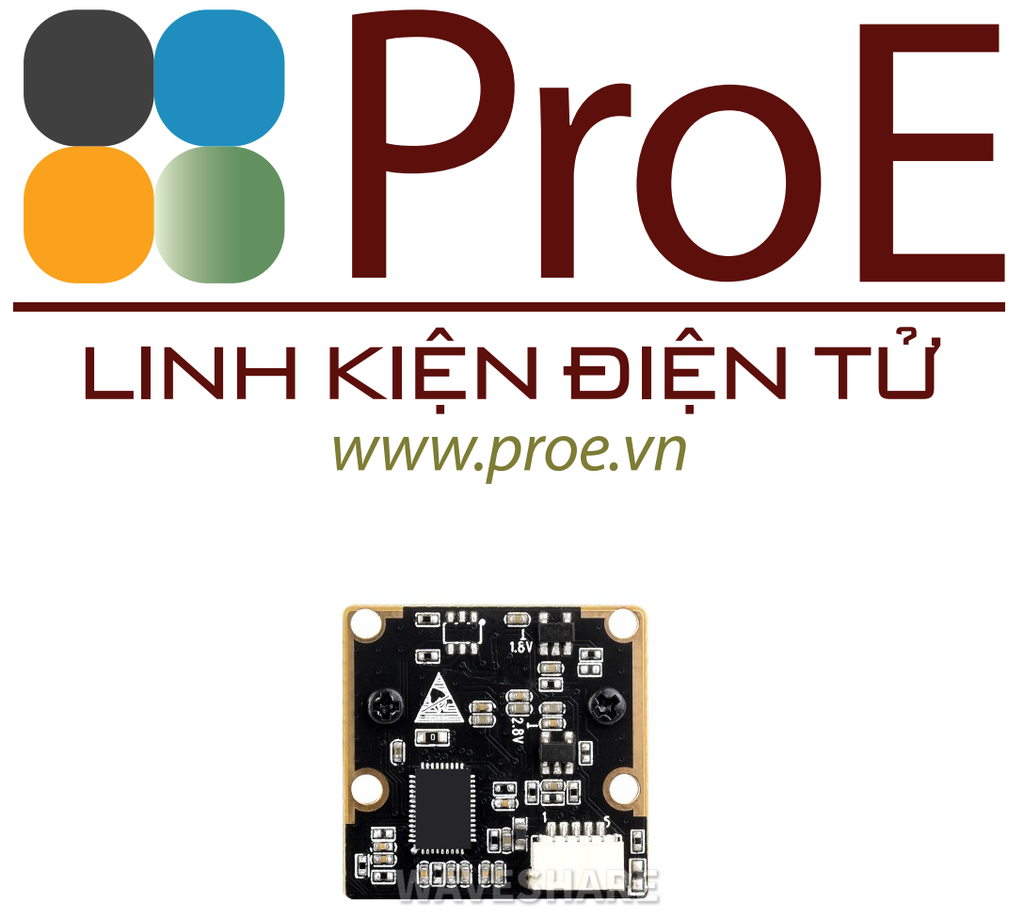

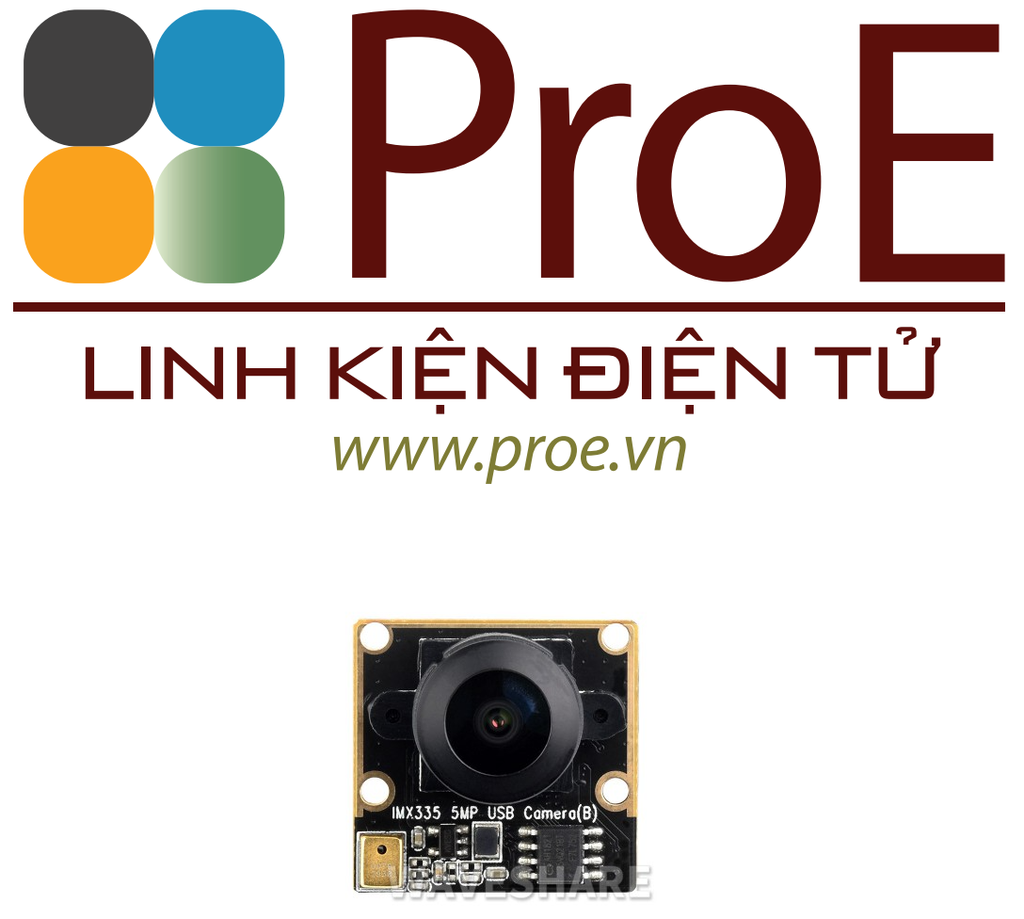

IMX335 5MP USB Camera (B), 2K Video Recording, Better Sensitivity In Low-Light Condition, Wide Dynamic Range
- Mã sản phẩm: IMX335 5MP USB Camera (B)
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
1.200.000₫
Wiki: www.waveshare.com/wiki/IMX335_5MP_USB_Camera_(B)
PACKAGE CONTENT
Weight: 0.02 kg
IMX335 5MP USB Camera (B) x1
DESCRIPTION
IMX335 5MP USB Camera (B), 2K Video Recording, Better Sensitivity In Low-Light Condition, Wide Dynamic Range

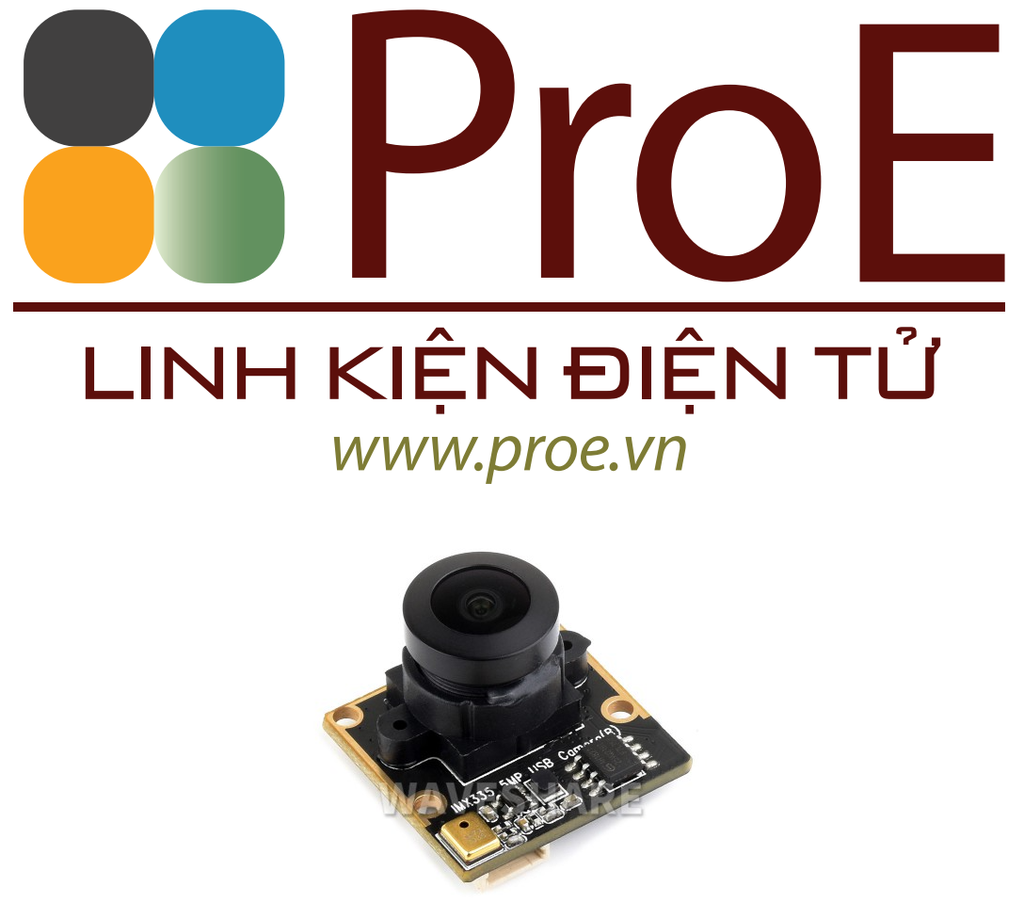

5MP USB CAMERA MODULE
IMX335 Sensor, USB2.0 Port, 175° Wide Angle
Specifications
| PIXELS | 5MP | |
|---|---|---|
| SENSOR | IMX335 | |
| INTERFACE | USB 2.0 | |
| CAMERA | Sensor size | 1/2.8 inch |
| Aperture (F) | 2.0 | |
| Focal length (EFL) | 3.65mm | |
| Field of view (FOV) | 175° | |
| Distortion | <-36% | |
| Focusing | Fixed-focus | |
| LENS MOUNT | M12 | |
| CONSTRUCTION | 5G3P + IR Filter | |
| IMAGE | Format support | MJPG, YVY2 |
| Static image resolution | 2592 × 1944 | |
| Video recording | 30 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720 |
|
| Dynamic range | 71.6dB@8xgain | |
| SNR | 36dB | |
| OPERATING VOLTAGE | 5V ± 5% | |
| OPERATING TEMPERATURE | -10°C~60°C | |
| MODULE SIZE | 25 × 24mm | |

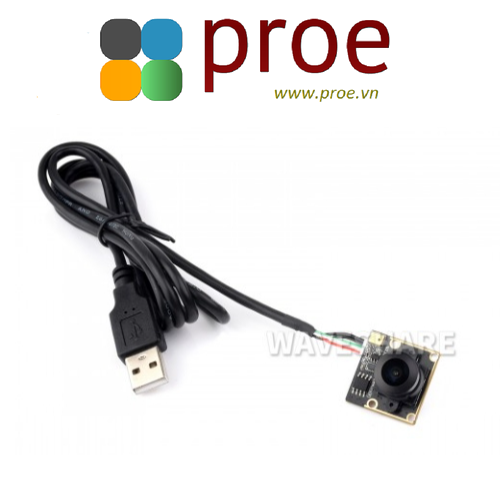

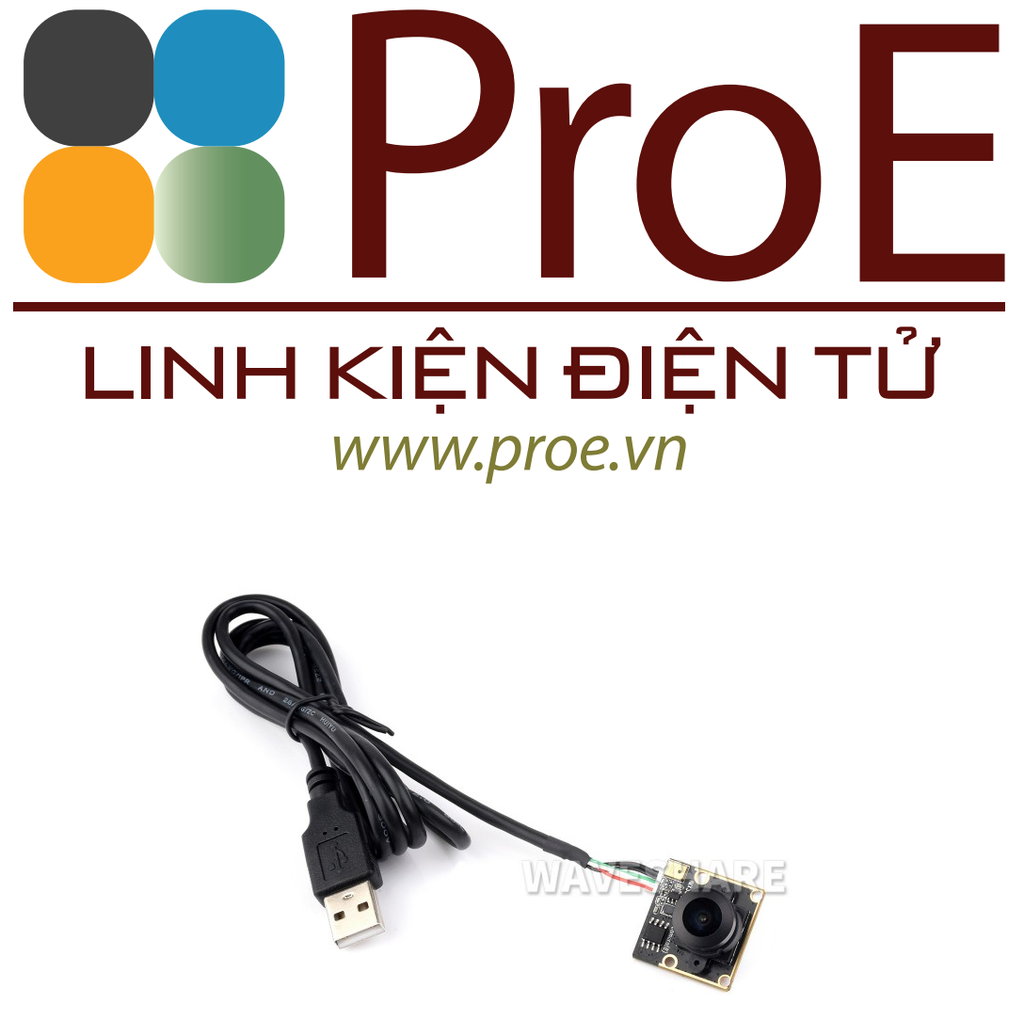

Connecting With USB Cable

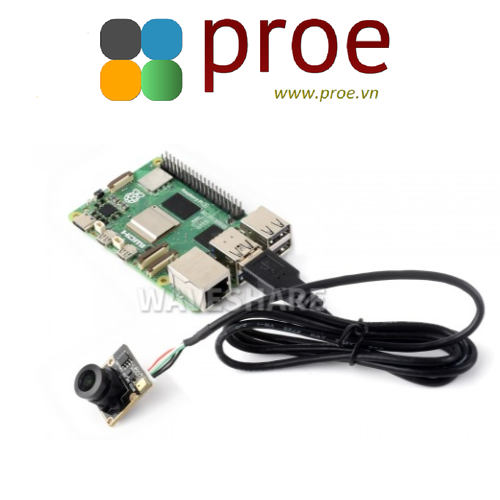

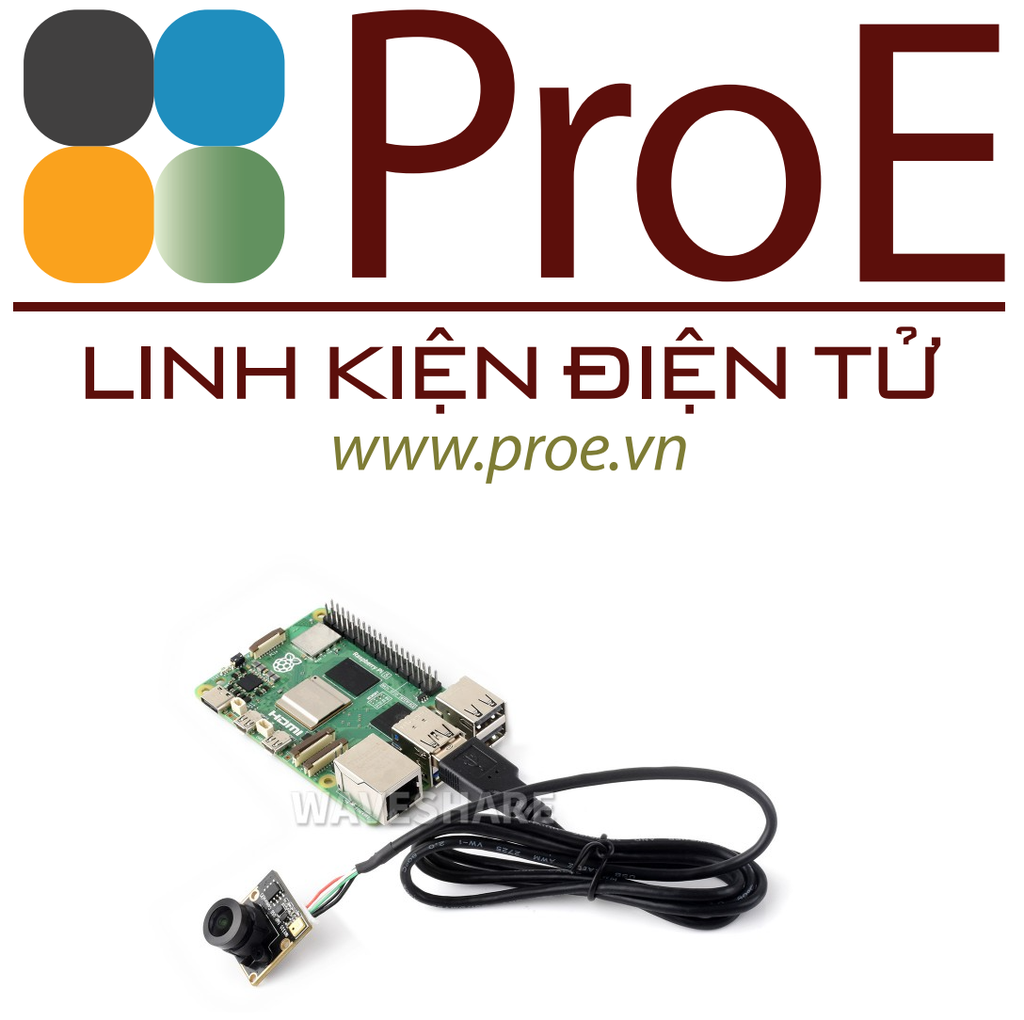

Connecting with Raspberry Pi 5
Connecting with Jetson Orin kit
* for reference only, the Raspberry Pi 5 and Jetson Orin kit are not included
5MP High Resolution
Supports 30 FPS Output, Suitable For Capturing Details
Better Low-Light Sensitivity
Provides A Better Imaging Effect In Low Light Condition
Wide Dynamic Range
Supports Wide Dynamic Range (WDR) Technology For Maintaining Image Details And Quality In High Contrast Scenes
* The above pictures are the simulated effect for demonstrating the expected performance of IMX335 camera under various conditions, for reference only, please refer to actual effect.
Pinout Definition
Outline Dimensions
