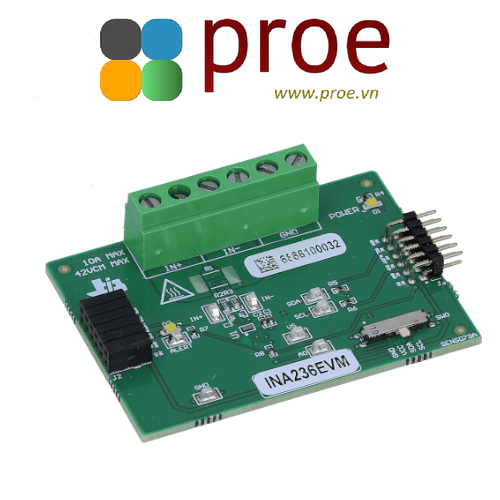

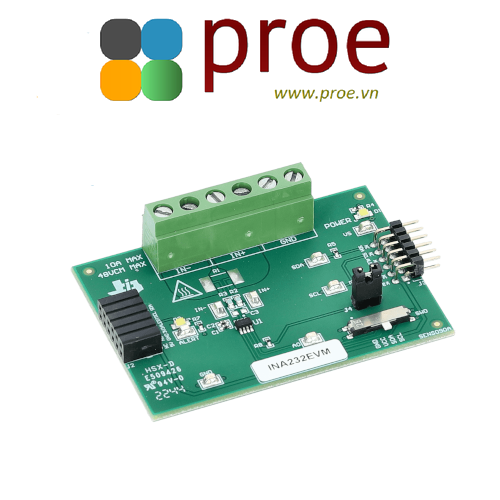

INA234_236EVM INA232, INA234 and INA236 evaluation module for current/voltage/power monitors

Features for the INA234_236EVM

   • GUI support to read and write device registers, and view and save results data

   • EVM detaches from the sensor control board (SCB) for custom use cases

   • Multiple EVMs supported with a single SCB and GUI

   • Conveniently powered from a common micro-USB connector through the SCB

   • Description for the INA234_236EVM

This evaluation module (EVM) is an easy-to-use platform to evaluate the main features and performance of the INA232, INA234 or INA236. The EVM comes with GUI support to read and write to device registers.
