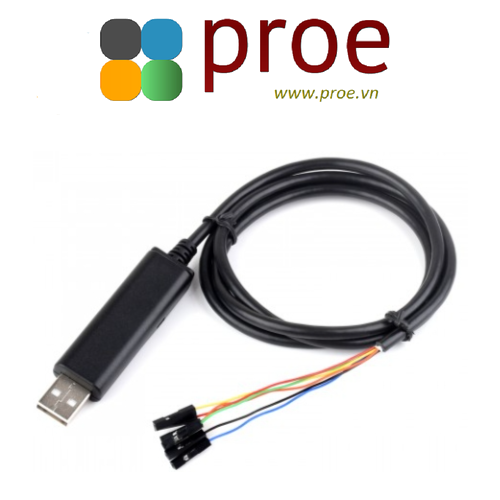

Industrial USB TO TTL (C) 6pin Serial Cable, Original FT232RNL Chip, Multi Protection Circuits, Multi Systems Support, With Hardware Flow Control
- Mã sản phẩm: USB TO TTL (C)
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
270.000₫
Wiki: www.waveshare.com/wiki/USB_TO_TTL_(C)
PACKAGE CONTENT
Weight: 0.034 kg
USB TO TTL (C) x1
DESCRIPTION
Industrial USB TO TTL (C) 6pin Serial Cable, Original FT232RNL Chip, Multi Protection Circuits, Multi Systems Support, With Hardware Flow Control
Industrial USB To TTL Serial Cable Type C
Original FT232RNL | Stable Transmission | Multi Devices | Multi Systems
Suitable for serial port debugging of industrial equipments, with hardware flow control
Industrial USB TO TTL 6pin serial cable, adopts original FT232RNL chip, onboard power supply and signal indicators, supports 3.3V/5V voltage level switching, built in self-recovery fuse, ESD and IO protection diode circuits, etc.
Specifications
| PRODUCT CATEGORY | Industrial USB TO TTL serial cable |
|---|---|
| CHIP SCHEME | FTDI original FT232RNL |
| HOST PORT | USB |
| DATA RATE | 300bps ~ 3Mbps |
| DEVICE PORT | UART |
| USB PORT | Connector: USB-A |
| Protection: self-recovery fuse, ESD protection | |
| UART PORT | Connector: separated 6pin female header |
| Protection: IO protection diode | |
| INDICATOR | PWR: power indicator, turns on when there is USB connection and voltage is detected |
| TXD: TX indicator, turns on while the USB port is sending data | |
| RXD: RX indicator, turns on while the device port is sending data back | |
| CABLE | Black, PVC sheath, total length 1m |
Onboard Original Chips
Adopts Original FT232RNL Chips, Providing Better Stability And Compatibility
Multiple Systems Support
Compatible With Popular Systems Like Win7/8/8.1/10/11, Mac, Linux, Android...
Three LED Indicators
Easily Checking The Operating Status, Convenient For Programming / Debugging
Pinouts Definition
| VCC | 3.3V or 5V output, configured by switch |
|---|---|
| GND | Ground |
| TXD | Connecting to MCU.RXD (signal direction: MCU.RX < < FT232 < < PC.TX) |
| RXD | Connecting to MCU.TXD (signal direction: MCU.TX > > FT232 > > PC.RX) |
| RTS | Connecting to MCU.CTS (signal direction: MCU.CTS < < FT232 < < PC.RST) |
| CTS | Connecting to MCU.RTS (signal direction: MCU.RTS > > FT232 > > PC.CTS) |
Outline Dimensions
* The above dimensions are measured manually and may have some errors
