JETSON-ORIN-CASE-A

PACKAGE CONTENT

Weight: 0.378 kg

1. Aluminum body case (top and bottom + side plates) × 1
2. Camera holder bottom mount × 1
3. Camera holder top mount × 1
4. Antenna (2PCS) × 1
5. IPEX4 to SMA cable (2PCS) × 1
6. Button with 4PIN wires × 1
7. Flat ribbon cable 2*20PIN ~55mm × 1
8. Screwdriver × 1
9. Screws pack and accessories × 1

Aluminum Alloy Case For Jetson Orin, With Camera Holder, Mini-Computer Case, Suitable For Jetson Orin Nano And Jetson Orin NX Kits

* The Jetson Orin Nano kit and camera are NOT included, please check the Package Content for the detailed part list

Active + Passive Cooling

Reserved Three Sides Airflow Vents, Dedicated Holes At The Top For The Built-In Fan,
Brings Excellent Cooling Effect

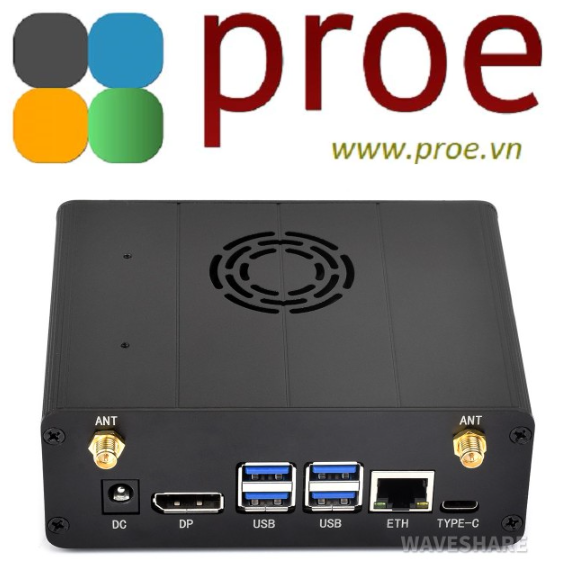

Precise Opening Design

Exquisite Manufacturing Process, Fitting & Nice Looking

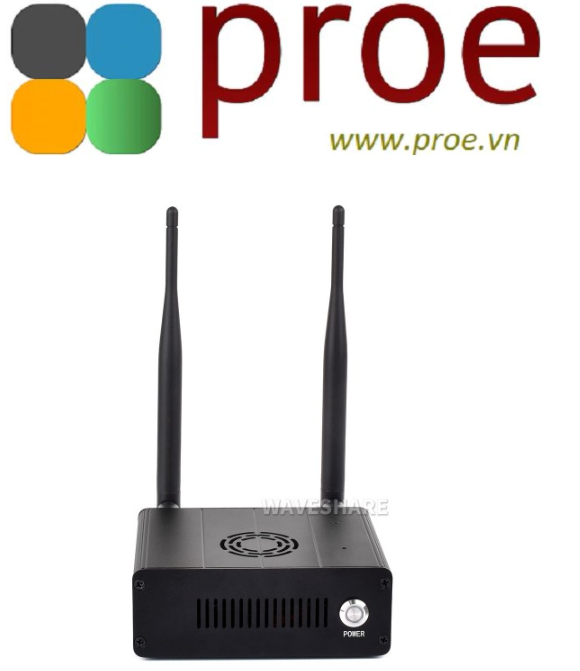

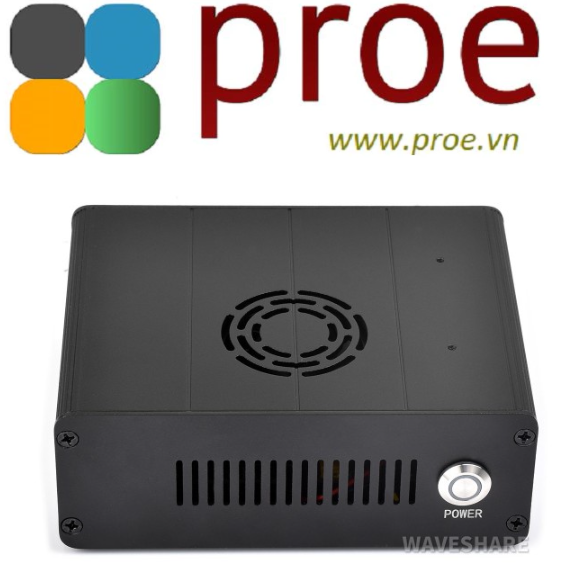

Onboard Power Indicator

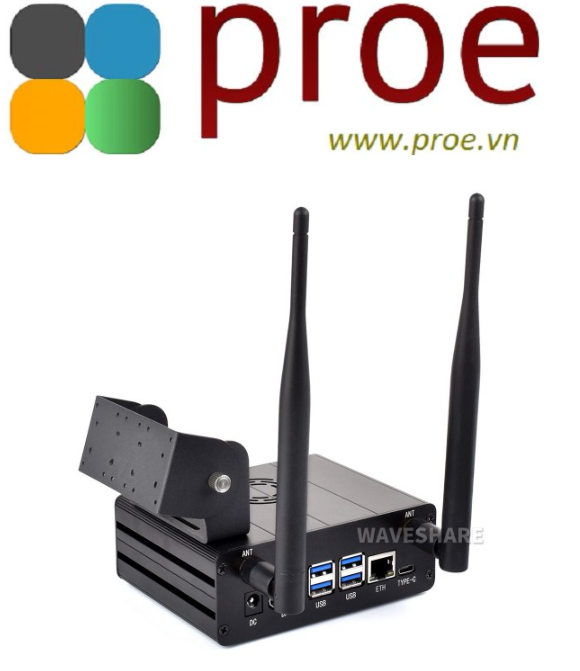

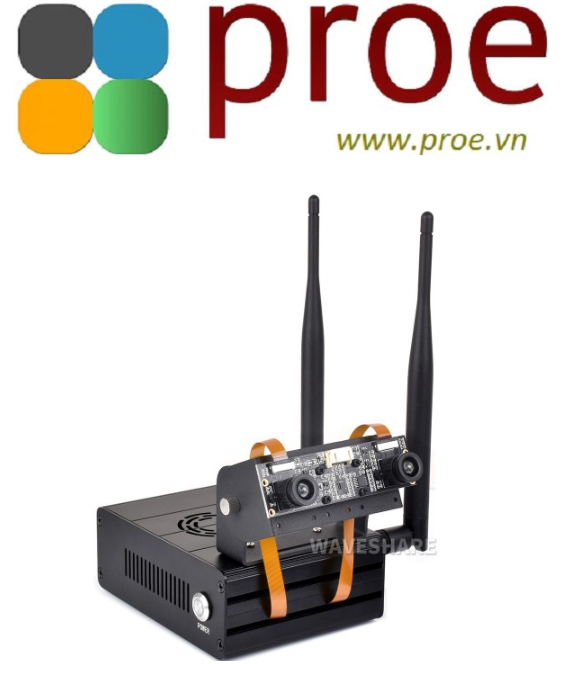

Special Camera Holder

Mounting Holes For Single Or Binocular Camera, Up To 180° Roll Angle

Comes With A Flat Ribbon Cable
For Using 40PIN Header

* for reference only, please check the Package Content for the detailed part list

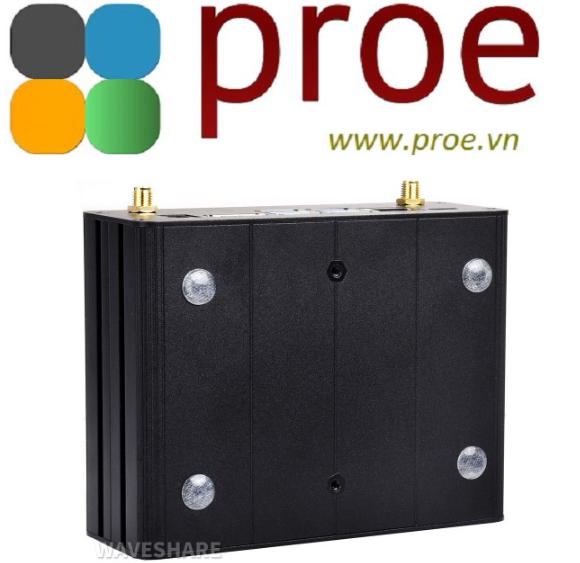

Silicone Nonskid Feet

With Silicone Nonskid Feet, More Stable Placement
Reduced Bottom Contact Area To Maximize Heat Dissipation

Reserved DIN Rail Mounting Holes

Easy To Install To Specific Scenes

(DIN rail accessories are NOT included)

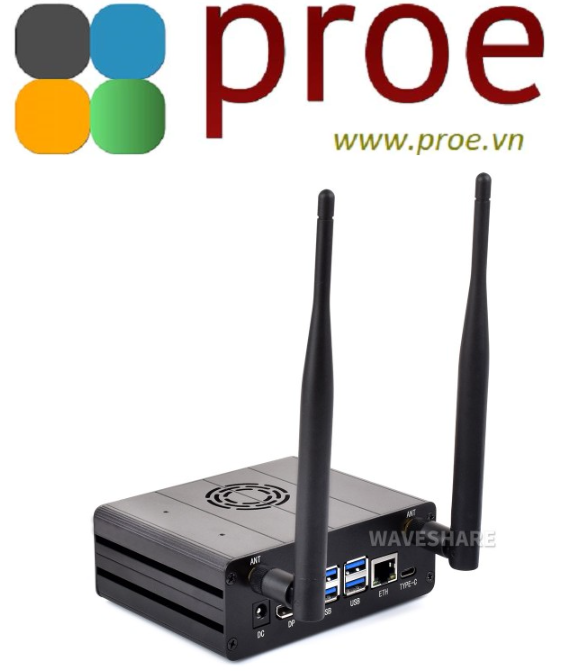

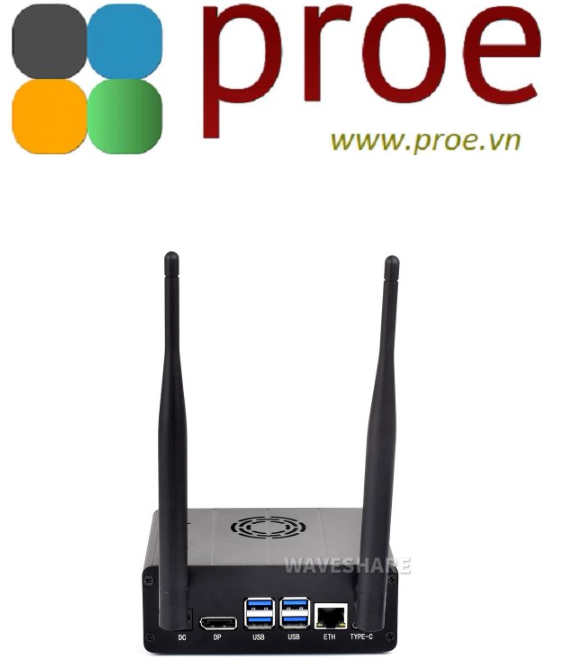

Product Show

Outline Dimensions

* for reference only, the Jetson Orin kit and camera are NOT included

Resources & Services

Wiki: www.waveshare.com/wiki/JETSON-ORIN-CASE-A
