LK004 rducam CS-Mount Lens Kit for Raspberry Pi HQ Camera (Type 1/2.3), 6mm to 25mm Focal Lengths, 65 to 14 Degrees, Telephoto, Wide Angle, Pack of 5

Details

Item Description:

In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of CS-mount lenses for shooting on your Rpi HQ cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future.

Lens Specification:

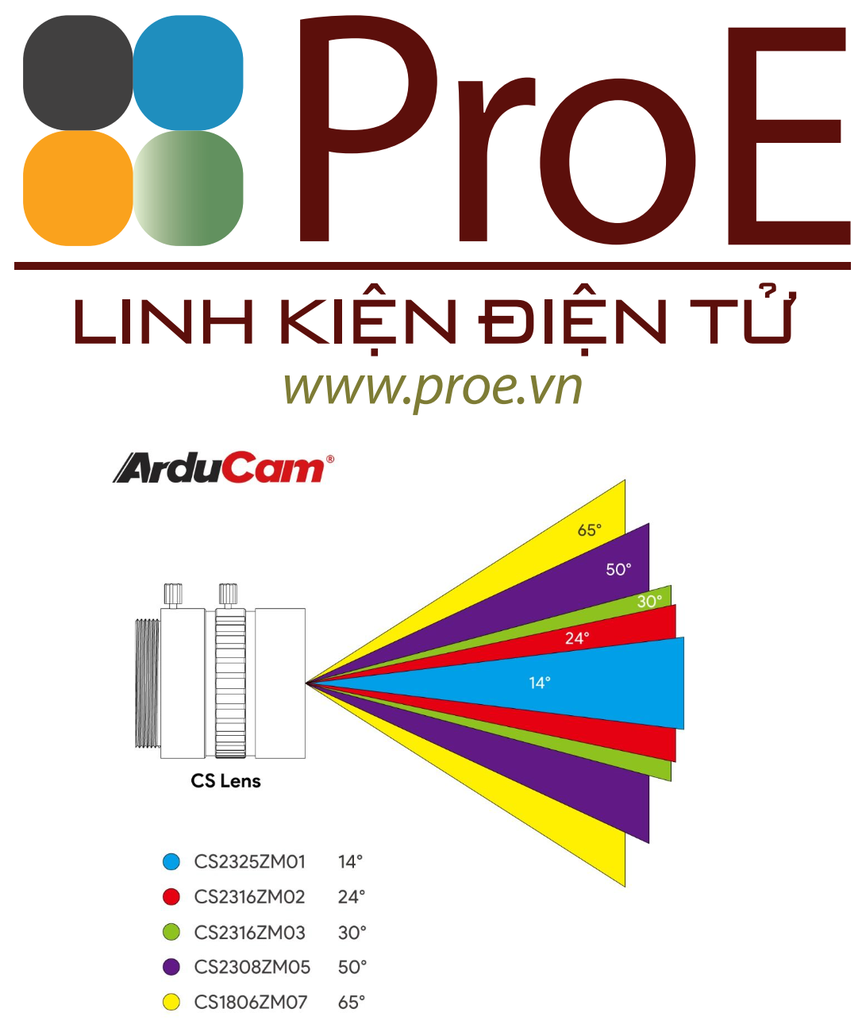

Come in 5 different FOV (Field of View), Horizontal FOV ranging from 14 to 65 degrees on 12MP Rpi HQ camera, each specification:

- Model No: CS2325ZM01

• Optical Format: 1/2.3”
• Focal Length: 25mm
• Aperture: F1.2
• Field of View (FOV): 14° (H)
• Mount: CS mount
• Back Focal Length: 8.03mm
• MOD: 0.2m
• Dimension: Φ28×29mm
• Weight: 47g

- Model No: CS2316ZM02

• Optical Format: 1/2.3”
• Focal Length: 16mm
• Aperture: F1.6
• Field of View (FOV): 24° (H)
• Mount: CS mount
• Back Focal Length: 7.53mm
• MOD: 0.2m
• Dimension: Φ30×29mm
• Weight: 45g

- Model No: CS1812ZM03

• Optical Format: 1/2.3”
• Focal Length: 12mm
• Aperture: F1.6
• Field of View (FOV): 30° (H)
• Mount: CS mount
• Back Focal Length: 7.53mm
• MOD: 0.2m
• Dimension: Φ30×29mm
• Weight: 53g

- Model No: CS2308ZM05

• Optical Format: 1/2.3”
• Focal Length: 8mm
• Aperture: F1.4
• Field of View (FOV): 50° (H)
• Mount: CS Mount
• Back Focal Length: 6.50mm
• MOD: 0.3m
• Dimension: Φ28×23mm
• Weight: 40g

- Model No: CS1806ZM06

• Optical Format: 1/2.3″
• Focal Length: 6mm
• Aperture: F1.4
• Field of View (FOV): 65°(H)
• Mount: CS mount
• Back Focal Length: 8.03mm
• MOD: 0.3m
• Dimension: Φ28×28.5mm
• Weight: 47g

Package Includes:

• 1pcs 1/2" CS Mount 6mm camera Lens
• 1pcs 1/2.3" CS Mount 8mm camera Lens
• 1pcs 1/2.3" CS Mount 12mm camera Lens
• 1pcs 1/2.3" CS Mount 16mm camera Lens
• 1pcs 1/2.3" CS Mount 25mm camera Lens
