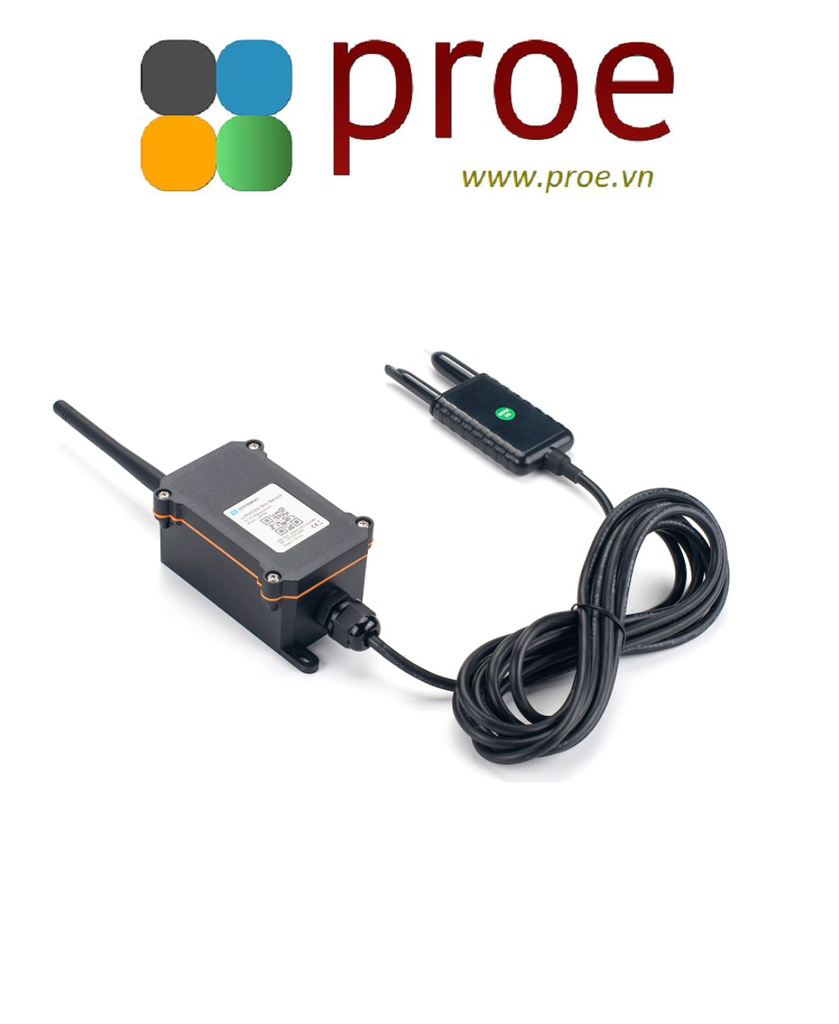

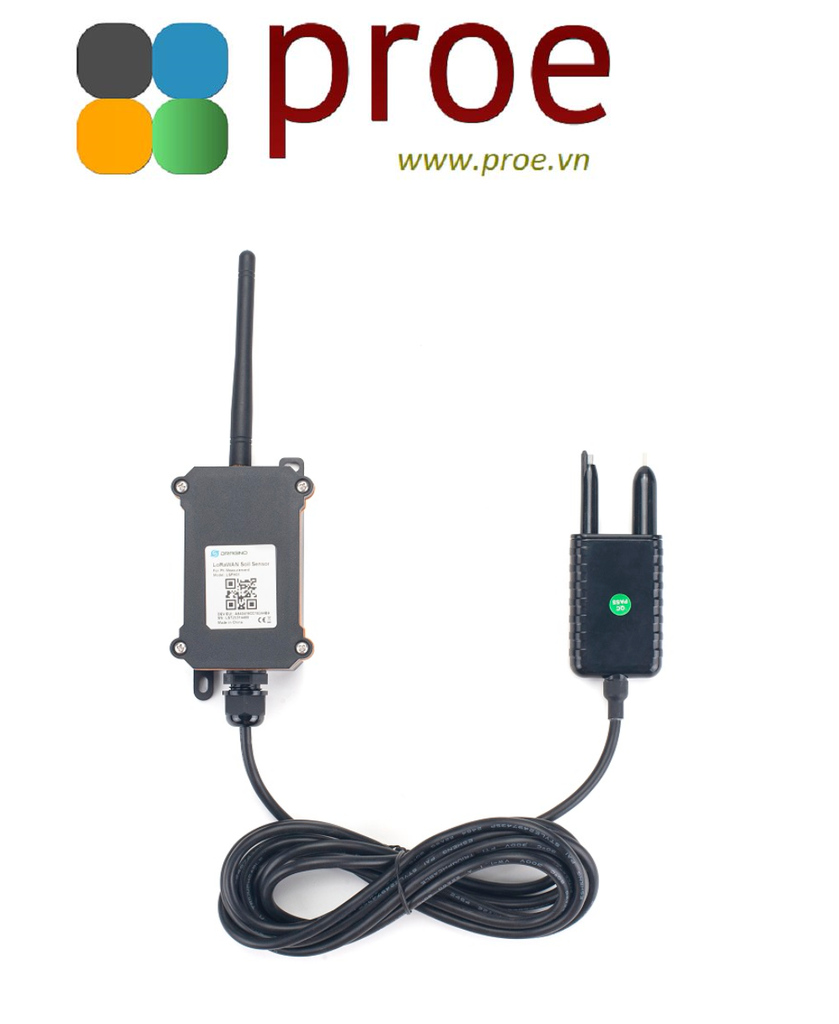

LSPH01 LoRaWAN Soil pH Sensor

The Dragino LSPH01 is a LoRaWAN Soil pH Sensor for IoT of Agriculture. It is designed to measure the soil PH and soil temperature, so to send to the platform to analyze the soil acid or alkali level. The probe is IP68 waterproof.

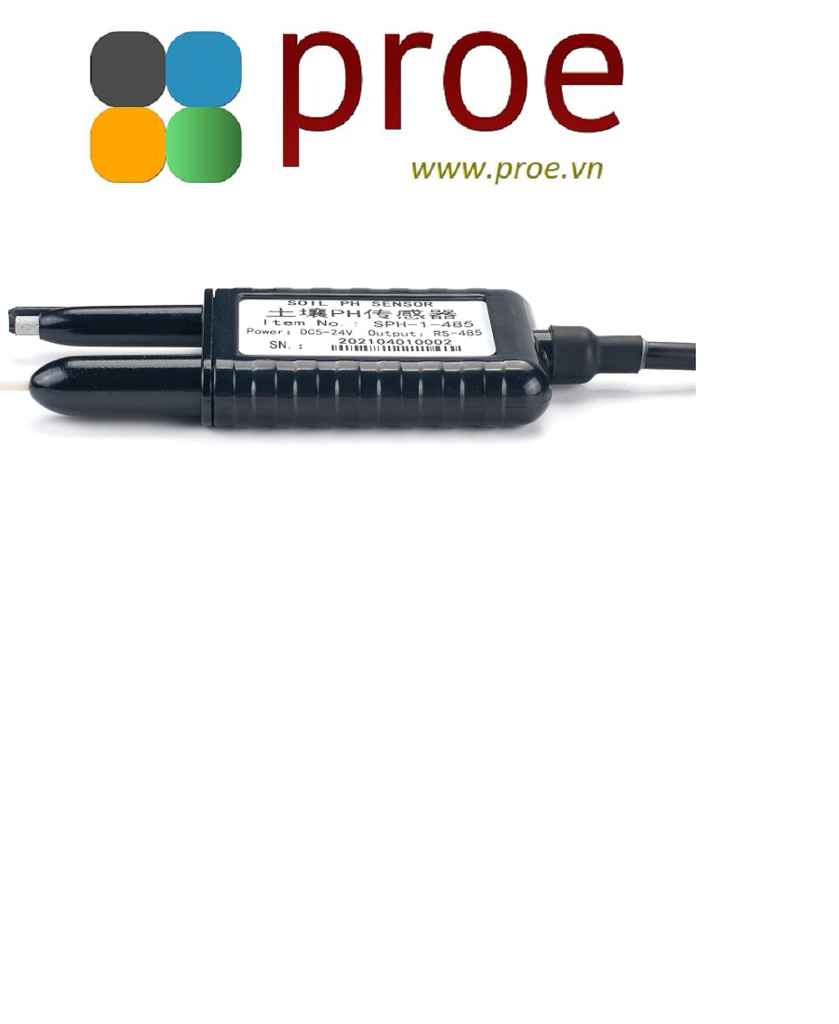

LSPH01 probe is made by Solid AgCl reference electrode and Pure metal pH sensitive electrode. It can detect soil's pH with high accuracy and stable value. The LSPH01 probe can be buried into soil for long time use.

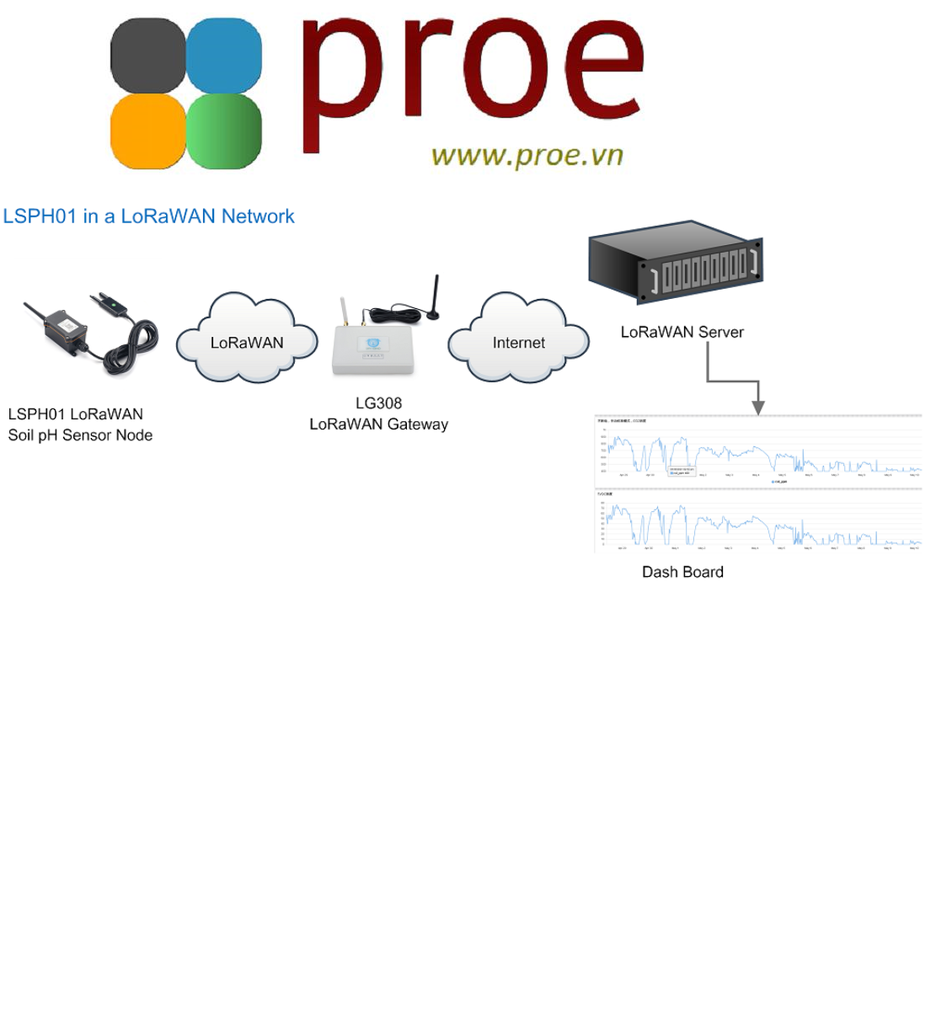

The LoRa wireless technology used in LSPH01 allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

LSPH01 is powered by 8500mAh Li-SOCI2 battery, it is designed for long term use up to 5 years.

Each LSPH01 is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

Features:

• LoRaWAN 1.0.3 Class A
• Ultra-low power consumption
• Monitor soil pH with temperature compensation
• Monitor soil temperature
• Monitor Battery Level
  Support pH calibration by end user
• Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
• AT Commands to change parameters
• Uplink on periodically
• Downlink to change configure
• IP66 Waterproof Enclosure
• IP68 rate for the Sensor Probe
• 8500mAh Battery for long term use

Applications:

• Smart Agriculture

Documents:

Download Directory

Package Includes:

• 1 x LSPH01

LSPH01-XXX:

XXX: the default frequency band

• EU433: Default frequency band EU433
• CN470: Default frequency band CN470
• EU868: Default frequency band EU868
• IN865: Default frequency band IN865
• KR920: Default frequency band KR920
• AS923: Default frequency band AS923
• AU915: Default frequency band AU915
• US915: Default frequency band US915
