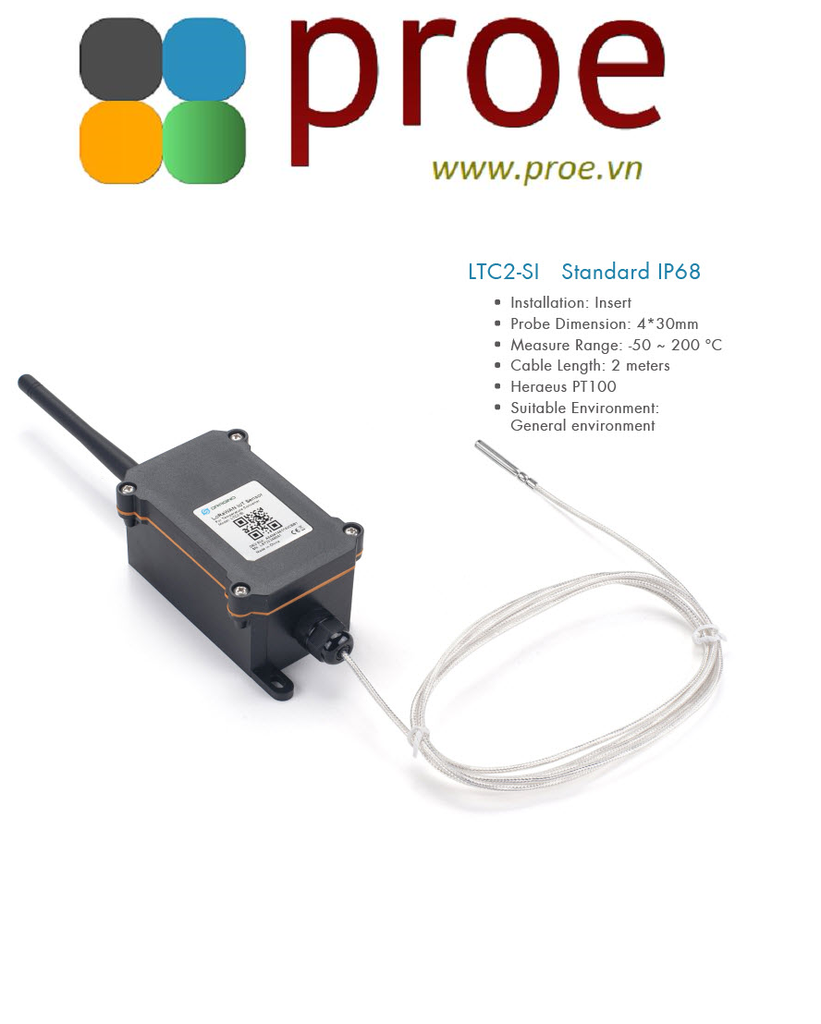

LTC2 SI Industrial LoRaWAN Temperature Transmitter

The Dragino LTC2 Industrial LoRaWAN Temperature Transmitter is designed to monitor temperature for different environment. It supports to read PT100 probe and convert the value to temperature and
uplink to IoT server via LoRaWAN protocol.

LTC2 supports datalog feature. User can retrieve the sensor value via LoRaWAN downlink command.

LTC2 is powered by 8500mA Li-SOCI2 battery for long time measurement. The battery can run 2~10 years depends on the network environment and working mode.

Each LTC2 has two internal 16 bit ADC interfaces and are calibrated on 12 set resistors to make sure the accuracy measurement on wide range.

LTC2 is LoRaWAN v1.0.3 compatible. Each LTC2 is pre-load with a set of unique keys for LoRaWAN registration, register these keys to local LoRaWAN server and it will auto connect after power on.

Features:

• LoRaWAN v1.0.3 Class A
• max: 2 x monitor temperature channels
• Support 3 -wire PT-100
• 8500mAh Li-SOCI2 Battery
• Firmware upgrade via console
• Wall Mountable
• Configurable via LoRa or UART
• Datalog and retrieve via LoRaWAN
• Use pre-load PT100 probe or 3rd PT100 probe
• Factory calibration for different resistance range
• Support accuracy measure of resistance and upload
• Battery Monitoring and upload

Applications:

• Logistics and Supply Chain Management
• Food management.
• Cold chains solution
• Industrial Monitoring and Control

Documents:

• Datasheet, Manual, Documents Directory

Package Includes:

• 1 x LTC2  Industrial LoRaWAN Temperature Transmitter

Dimensions and Weight:

• Device Size: 150 x 120 x 55mm
  Device Weight: As Per Probe option
  Package Size / pcs :
  Weight / pcs :

 LTC2-XX-YY:

XX: probe option, spec see datasheet

• SI: Standard IP68
• FS: Food Safety
• FT: Flat Type
• LT: Low Temperature
• HT: High Temperature
• NA: No Probe

YY: the default frequency band

• EU433: Default frequency band EU433
• CN470: Default frequency band CN470
• EU868: Default frequency band EU868
• IN865: Default frequency band IN865
• KR920: Default frequency band KR920
• AS923: Default frequency band AS923
• AU915: Default frequency band AU915
• US915: Default frequency band US915
