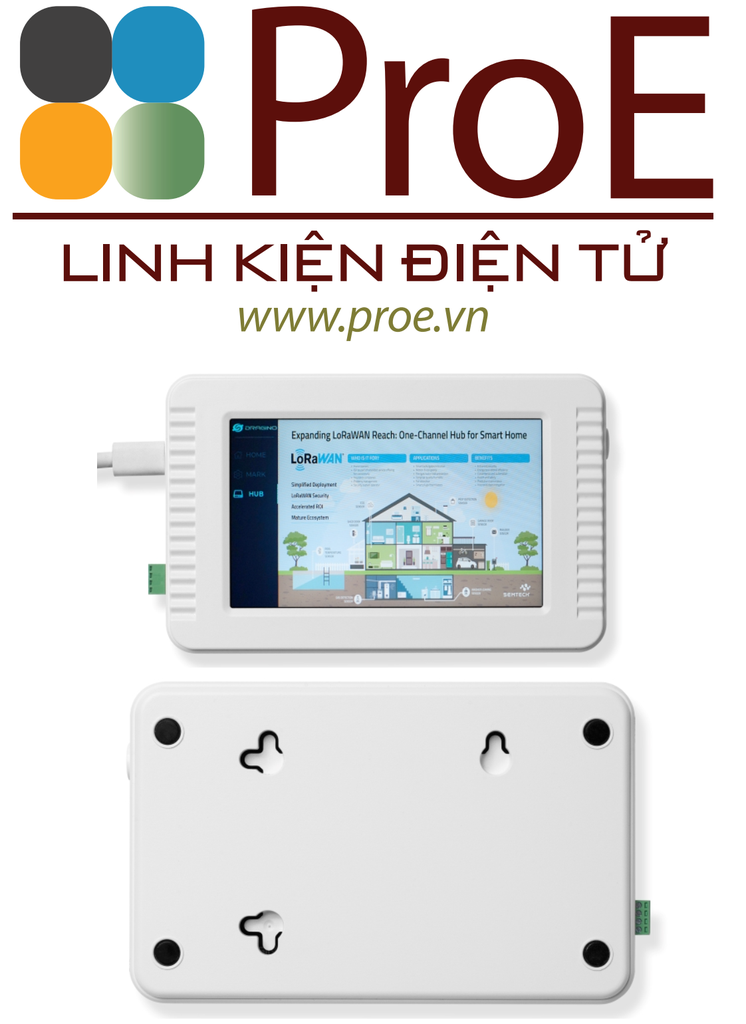

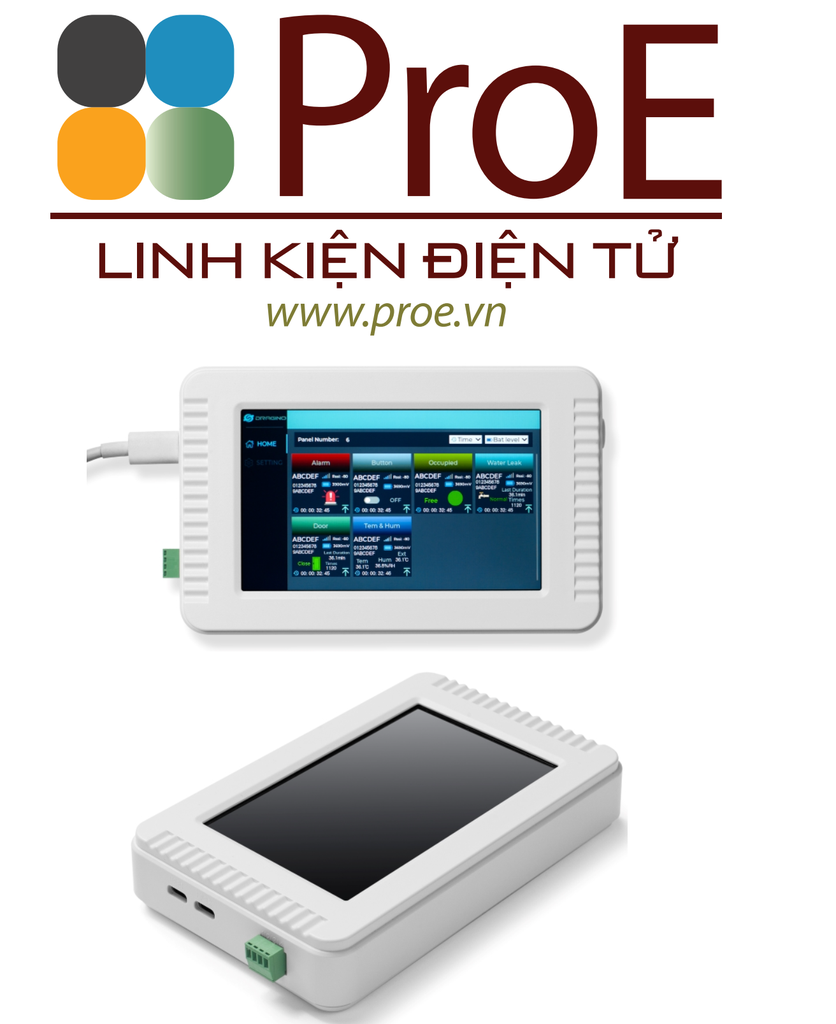

LTS5 LoRa LoRaWAN HMI Touch Screen

LTS5 is a LoRa / LoRaWAN HMI Touch Screen designed for display purpose of IoT project. It have a 5.0" HMI touch screen, and support WiFi, Bluetooch, LoRa wireless protocol.

LTS5 is an Open Source software project. The MCU is ESP32 and Dragino LA66 LoRa module. There are lots of development source for ESP32 which can greatly reduce the development time.

The HMI touch screen of LTS5 supports drap & drop design. Developer can use SquareLine to easily customize the display UI for diferent application.

LTS5 use LA66 LoRa module, this module can be program to support private LoRa protocol or LoRaWAN protocol.

Features：

• ESP32-WROOM MCU: 8MB RAM & 16MB ROM
• Dragino LA66 LoRa Module
• Support Private LoRa protocol or LoRaWAN protocol
• Support WiFi & BLE wireless protocol
• 5.0" HMI touch screen
• Support LVGL case. SquareLine program.
• Support RS485 Interface
• Open Source Project
• Wall Attachable.
• 5V DC power
• IP Rating: IP52
• Operation Temperature: -20 ~ 70°C  (No Dew)
• Storage Temperature: -30 ~ 70°C  (No Dew)

Applications:

• Smart Buildings & Home Automation
• Logistics and Supply Chain Management
• Smart Metering
• Smart Agriculture
• Smart Cities
• Smart Factory

Specifications:

LoRa:

• Frequency Range: 870 MHz ~ 960 MHz
• TCXO crystal to ensure RF performance on low temperature
• Maximum Power +22 dBm constant RF output
• High sensitivity: -148 dBm
• LoRa Tx Current: <90 mA at +17 dBm, 108 mA at +22 dBm
• LoRa Rx current: <9 mA

WiFi:

• 802.11b/g/n
• Up to 150 Mbps data rate in 802.11n mode
• Support A-MPDU and A-MSDU aggregation
• zero point four μ S protection interval
• Working channel center frequency range: 2412~2484 MHz

Bluetooth:

• Bluetooth V4.2 BR/EDR and Bluetooth LE standard
• Class-1, Class-2, and Class-3 transmitters.
• AFH
• CVSD and SBC

Display:

• 5.0 Inch , 800 x 480
• IPS Capacitive Touch SCreen
• RGB color.
• Display Area: 120.7*75.80 mm

Package Includes:

• LTS5 HMI Touch Screen
• 5V, 2A DC Power Adapter.
• USB Type C Program Cable
