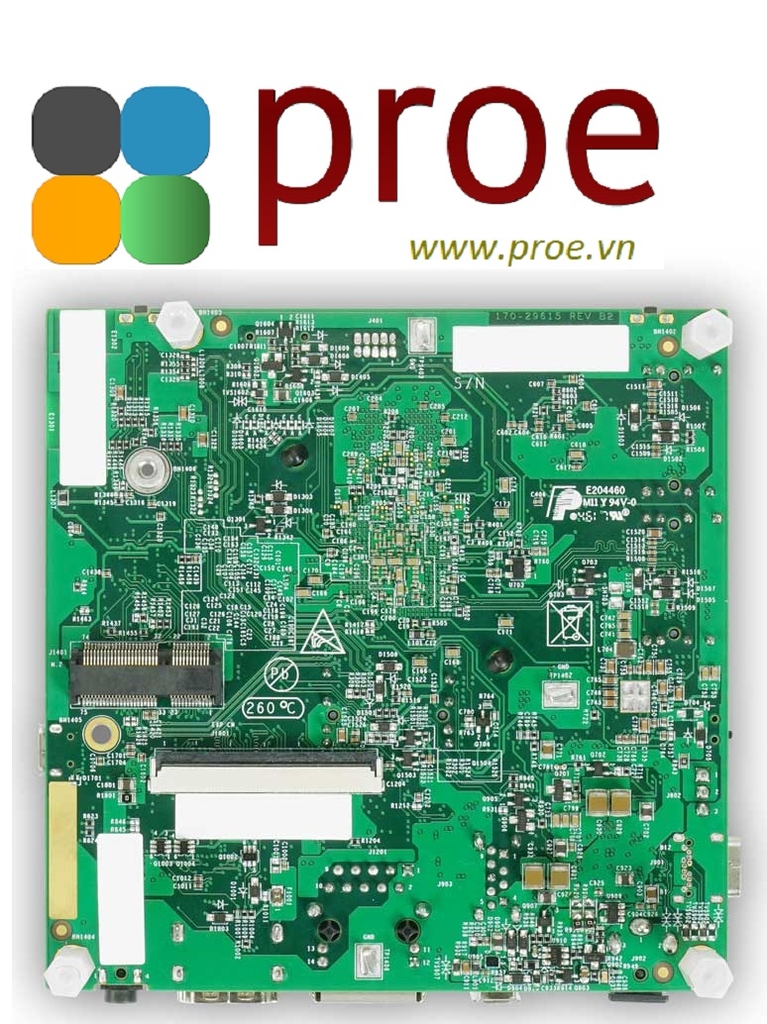

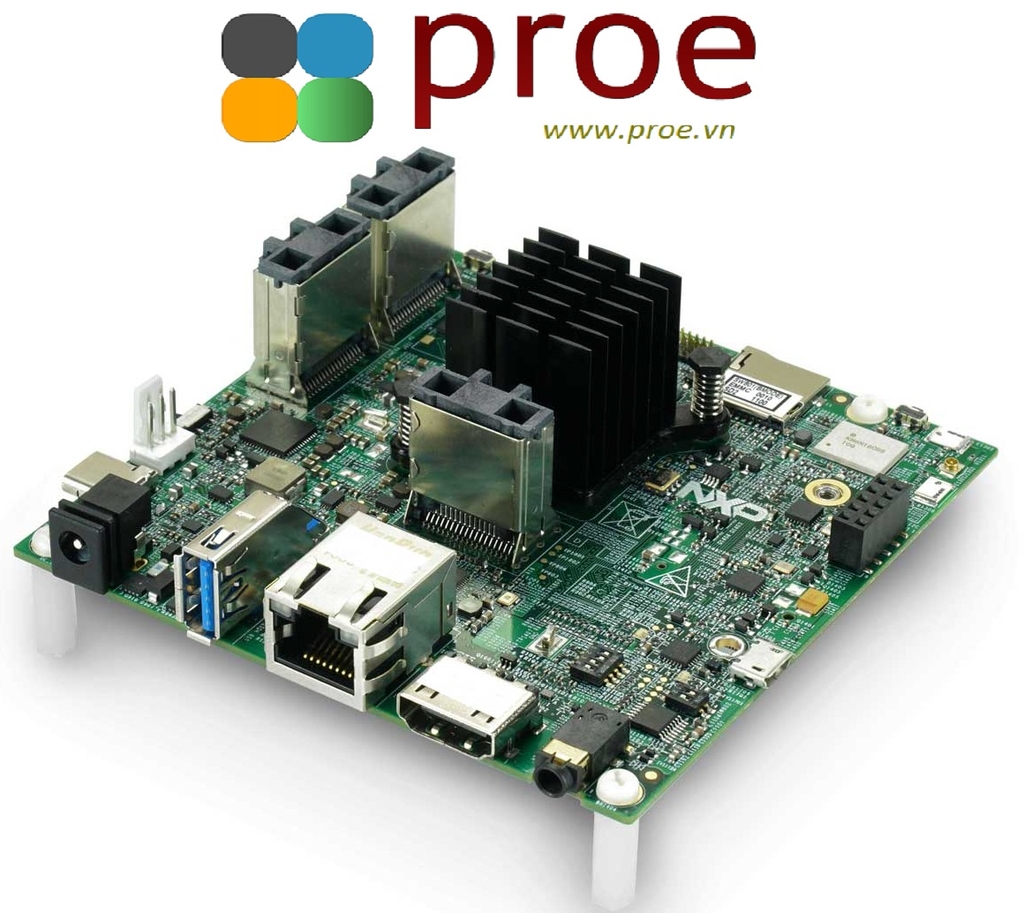

MCIMX8M-EVKB

Overview

The NXP i.MX 8MQuad Evaluation Kit (EVK) provides a platform for rapid evaluation of the i.MX 8MQuad, i.MX 8MDual and i.MX 8QuadLite Applications Processors, utilizing 2 to 4x Arm^® Cortex^®-A53s and 1x Cortex-M4 cores. It brings High-Performance with Low Power, Flexible options of Memory and High-Speed Interfaces as well as Industry-Leading Audio and Video capabilities.

These boards enable HDMI out for simple out-of-the-box bring up. Presents LPDDR4, eMMC, QSPI and SDMicro memory options, 10/100/1000 Ethernet port, USB 3.0 connectors and PCIe Interface high-speed interfaces. For Audio and Video evaluations it brings an HDMI 2.0a Type-A and MIPI-DSI connectors, as well as 32-bit Audio samples with up to 768kHz sampling rate, an audio interfaces expansion connector and a headphone 3.5mm audio jack.

Specifications

• EU RoHS

  Compliant

• Type

  Evaluation Kit

• Supported Device

  MIMX8MQ6DVAJZAA

• Supported Device Technology

  Application Processor and SOC

• RAM Size

  3GB

• Program Memory Size

  32MB/16GB

• Program Memory Type

  eMMC Flash/NOR Flash

• USB

  3

• Ethernet

  1

• UART

  1

• Display Interface

  HDMI/MIPI-DSI

• Display Type

  LCD

• Operating Systems

  Linux|FreeRTOS|Android

• PC Card Interface

  micro SD

• Main Program Memory Type

  Flash

• Android

  Android

• Linux

  Linux Kernel

• Daughter Cards

  No
