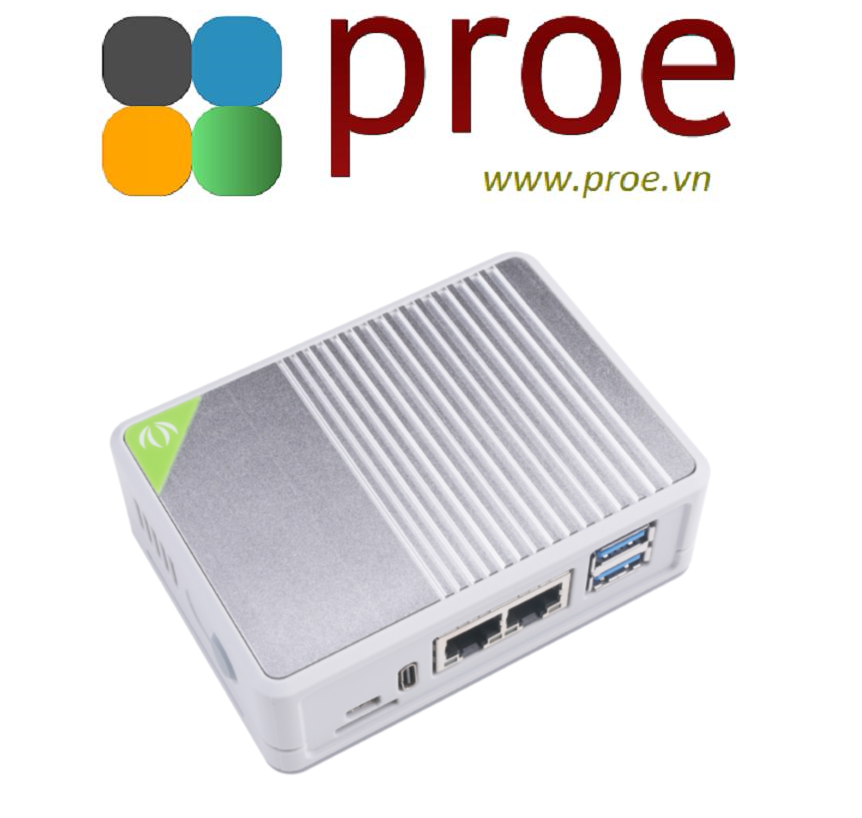

Mini Router with Raspberry Pi Compute Module 4, Dual Gigabit Ethernet, 4GB RAM/32GB eMMC

PRODUCT DETAILS

Features

• Powered by Raspberry Pi Compute Module 4 with 4GB RAM/ 32GB eMMC
• Compact size (75x64x21mm) with rich I/O peripherals

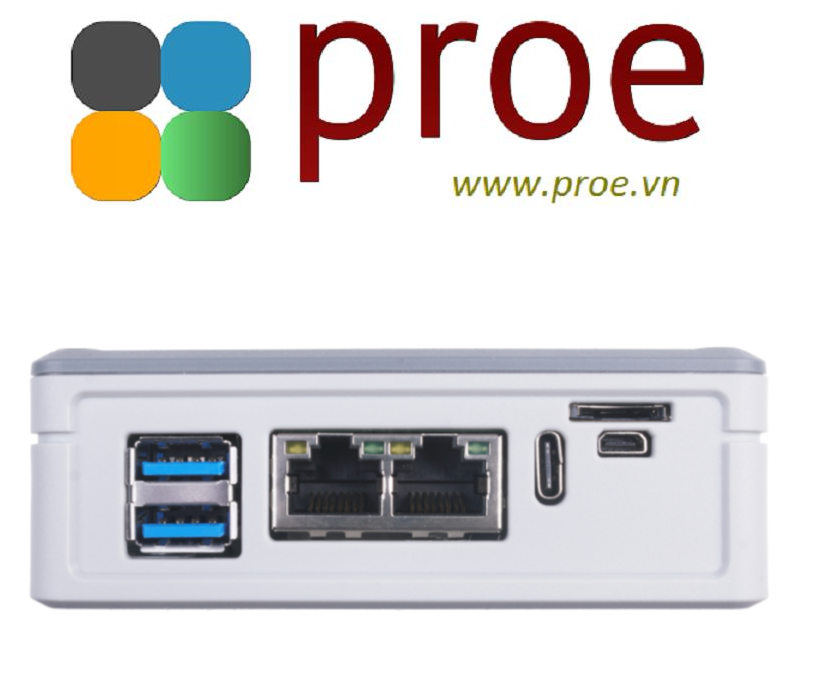

• Dual Gigabit Ethernet connectors for soft router applications
• Camera/ display connectivity using MIPI CSI, MIPI DSI, and micro-HDMI interfaces
• Onboard dual USB 3.0 with an additional USB 3.0 9-pin header for more external ports
• Micro-SD Card slot to load system image for non-eMMC version of CM4
• More Expandability via FPC Connector (I2C, SPI)
• External fan support with fan power connector
• Power using USB Type-C

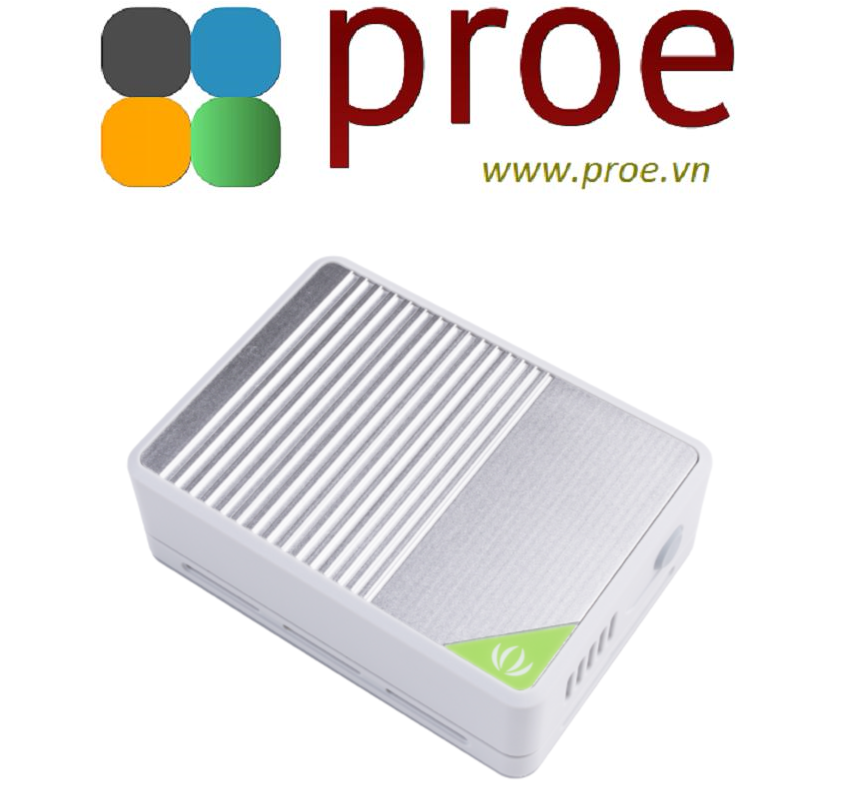

• Aluminum alloy top with large heat sink for better heat dissipation
• PC/ABS case with better protection which is suitable for industrial applications
• Case with long rubber feet for better stability when placed on a flat surface

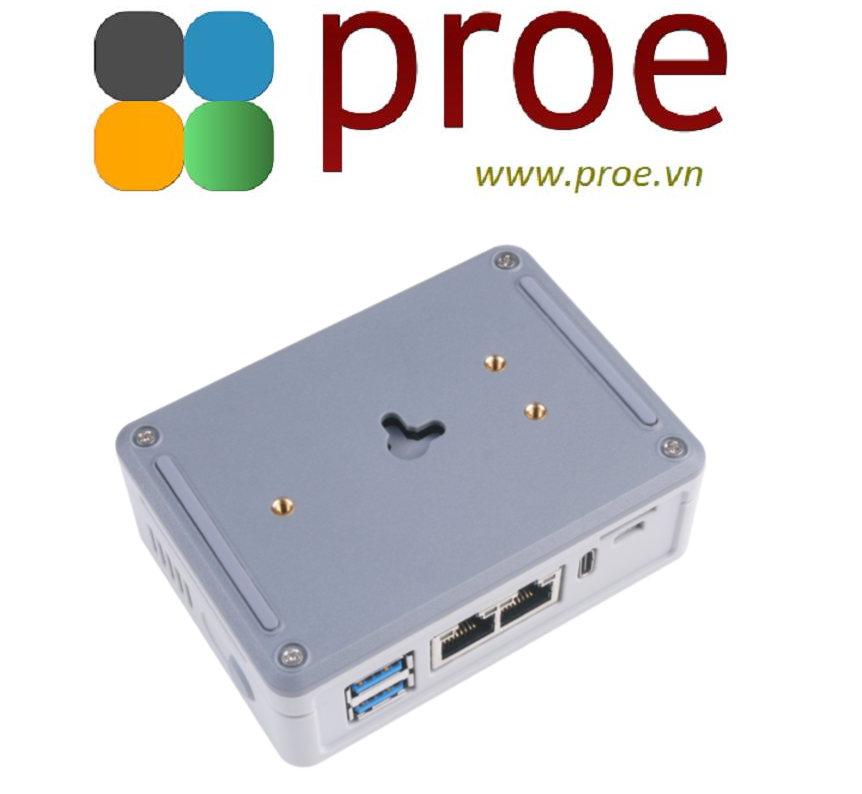

• Keyhole slot wall mount with the ability to hang in two orientations
• DIN rail mount support with 3 mounting holes

Description

The Dual Gigabit Carrier Board powered by Raspberry Pi Compute Module 4 is equipped with dual Gigabit Ethernet ports and dual USB 3.0 ports, making it suitable for soft router applications, while keeping the hardware to a minimum. We have pre-installed a Raspberry Pi Compute Module 4 with 4GB RAM and 32GB eMMC to enable fast boot-up times and a smooth overall experience. You can also replace the installed CM4 with any other CM4 of your choice!

Out of the two Gigabit Ethernet Ports (RJ45), one Ethernet Port is connected to the Gigabit Ethernet PHY of the CM4 module which is based on Broadcom BCM54210PE. On the other hand, the other Gigabit Ethernet Port is connected to Microchip's LAN7800 which is a USB 3.0 to GbE (Gigabit Ethernet Bridge). The USB 3.0 interface here is extended from the PCIe interface of the CM4 Module. Also, both ports can support speeds up to 1Gbps.

It features a variety of I/O peripherals such as MIPI CSI, MIPI DSI, micro-HDMI to connect displays/ cameras, a standard 9-pin USB 3.0 header for more USB expansion, a micro-SD card slot, and an FPC connector while maintaining a compact form factor! This board is ideal for HTPC makers, Linux developers, software router enthusiasts, and the majority of regular Raspberry Pi users.

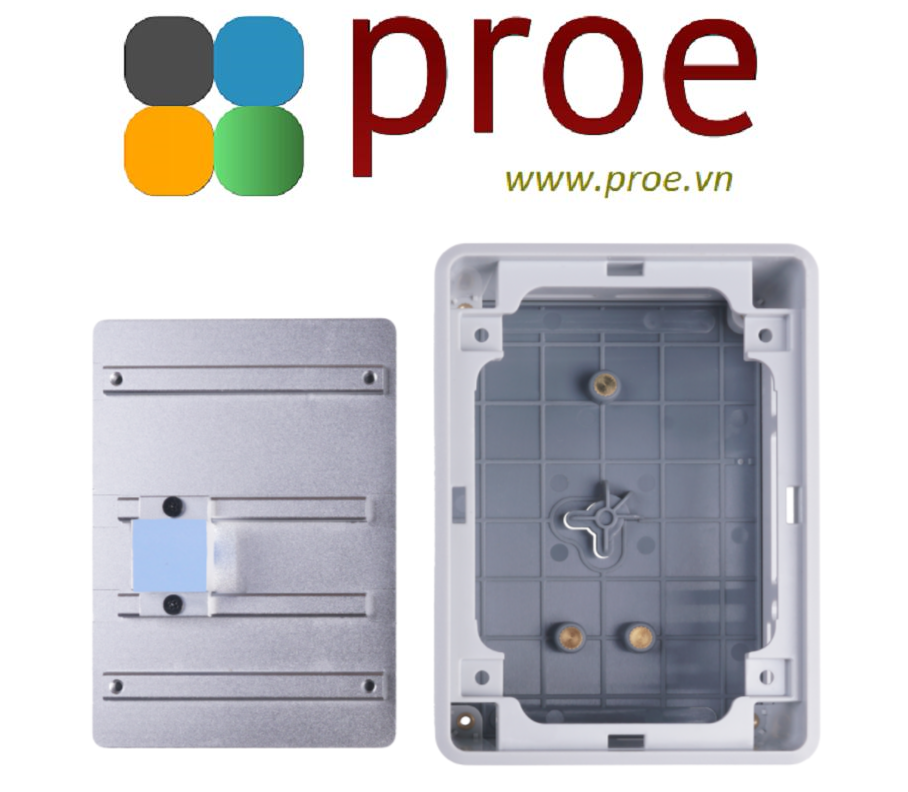

Also, this comes included with a PC/ABS case with an Aluminum alloy on top which has a large sink in order to cool down the CM4 at extreme loads. It provides better protection as well and is suitable to be used in industrial applications. The case has long rubber feet for better stability when placed on a flat surface. You can mount this case in two different methods. One is to use the keyhole slot wall mount and hang it on the wall (you can hang in 2 different orientations). The other is to use the 3 mounting holes and mount onto a DIN rail.

Wall Mount (horizontal and vertical orientations)

DIN Rail Mount

Specifications

Carrier Board

Compute Module 4

Hardware Overview

Applications

• Software Router
• IoT
• Smart Home
• Camera Projects

Part List

• 1 x Dual Gigabit Ethernet Carrier Board for Raspberry Pi CM4 with 4GB RAM, 32GB eMMC
• 1 x Aluminum Case
• 1 x International Wall Adapter Power Supply 5VDC 4A – Type-C (with US/AU/UK/EU plugs)
