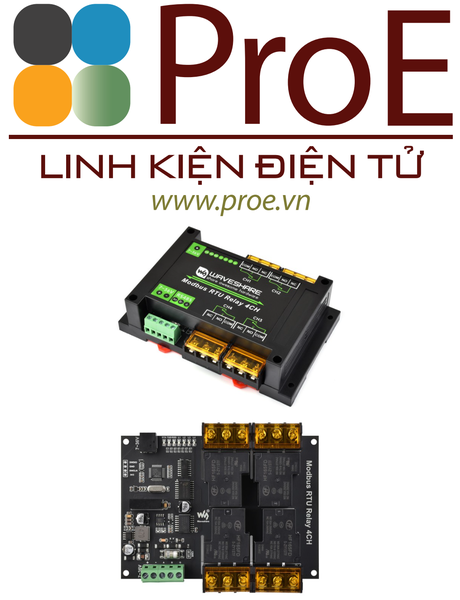

Industrial Modbus RTU 4-ch Relay Module with RS485 Interface, 30A High Current, Onboard LED Indicators, Multi Isolation Protection Circuits, Industrial Grade Rail-Mount Case

WIKI: www.waveshare.com/wiki/Modbus_RTU_Relay_4CH

Weight: 0.278 kg

• The power supply of this product is not included, it is recommended to purchase 12V power supply if you need it.
• It is also recommended to purchase USB TO RS232/485/TTL or USB TO RS485 at the same time for easy testing.

Modbus RTU Relay 4CH x1

RS485 4-ch High Current Relay Module

Modbus RTU Protocol, Multi Isolation Protection Circuits, Safe & Stable & Reliable

Features At A Glance

This is an industrial 4-ch relay module controlled via RS485 bus, utilizing Modbus RTU protocol. It features embedded protection circuits such as power isolation, ADI magnetical isolation, resettable fuse, and TVS diode, etc. It also comes with an ABS enclosure. The Modbus RTU Relay 4CH is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.

• Configurable device address (1~255), multi devices can be cascaded on RS485 bus
• Features flash-on, flash-off function, by passing arguments to the command, it is possible to turn on the relay for a while and then close it automatically
• Onboard voltage regulator, supports 7V~36V wide voltage supply
• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard unibody ADI magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
• Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
• Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
• Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability
• Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
• High quality relay, contact rating: ≤30A 250V AC or ≤30A 28V DC
• Rail-mounted ABS plastic enclosure, easy to install, safe to use
• 3 LEDs for indicating the MCU status and signal transceiving status

Specifications

Interfaces & Indicators

With Multiple LED Indicators, Easy To Monitor The Operating Status

High Current Screw Terminals

30A high current relay, Onboard high quality screw terminals with covers, more convenient for high current wiring

Hardware Analysis

Multiple protections for safer and more reliable use

Enclosure Design

Rail-mounted ABS plastic enclosure, easy to install, safe to use

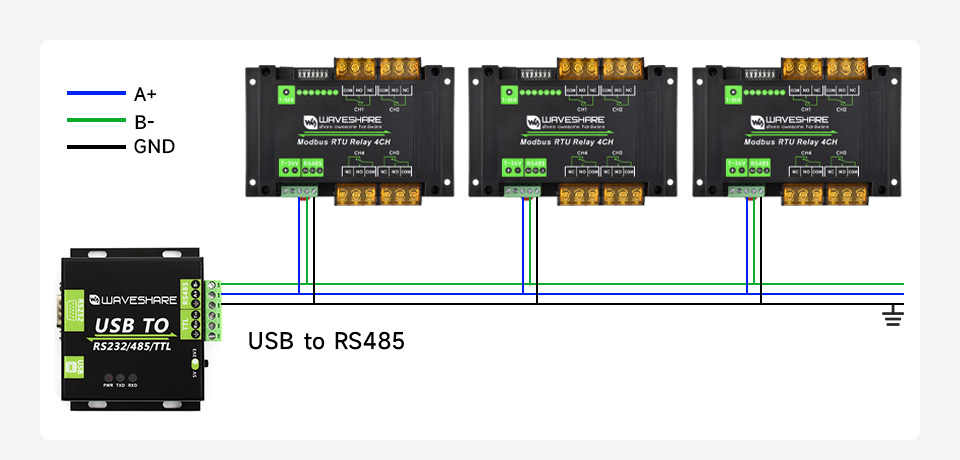

RS485 Communication

Configurable device address (1~255), multi devices can be cascaded on RS485 bus

In case of many devices are cascaded, or communication distance is quite long, it is necessary to use RS485 repeaters

for reference only, the USB TO RS232/485/TTL converter is Not included

Relay connection

Contact rating of the onboard relay up to 30A 250V AC or 30A 28V DC

Applications

Product show

Outline dimensions
