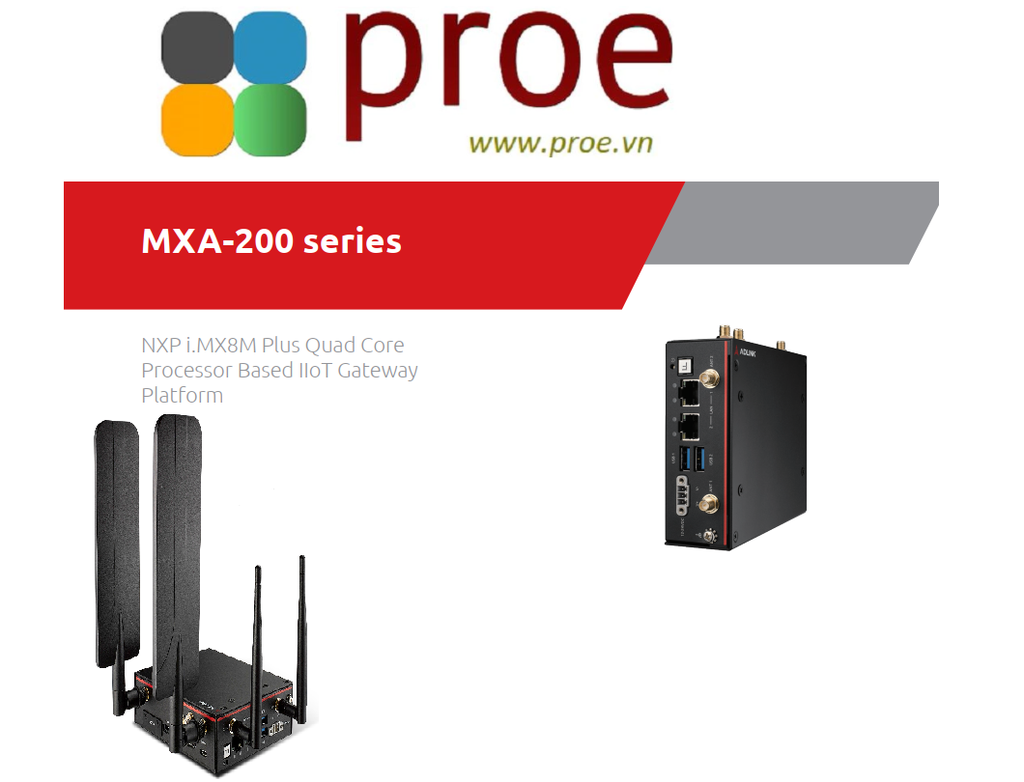

MXA-200

NXP i.MX8M Plus Quad Core Processor Based IIoT Gateway Platform

Key Features

• NXP Arm® Cortex®-A53 i.MX8M Plus Quad/Dual up to 1.8 GHz
• Onboard LPDDR4 2 GB / 4 GB, 4000MT/s memory
• 2 isolated RS-232/422/485, 2 USB 3.0, 2 GbE LAN, 1 Micro SD, 1 HDMI (1920x1080 at 60Hz)
• Support 1 M.2 2242 B-key Slot for 5G/4G/LTE, 1 M.2 2230 E-Key Slot for Wifi
• Operation Temperature -20°C to 70°C

MXA-200 is an i.MX8M Plus based high-performance IoT gateway, which has an open platform design with Quad Core processor, two RS-232/422/485 isolated serial ports, two 10/100/1000 Ethernet ports, two USB 3.0 port and operating temperature range of -20~70°C. It offers two M.2 slots for integrating Wi-Fi/4G/5G modules. MXA-200 enables system integrators to develop applications precisely for renewable energy, EV charger, smart city and factories which require massive data collection, cloud based application and video related monitoring solutions.
