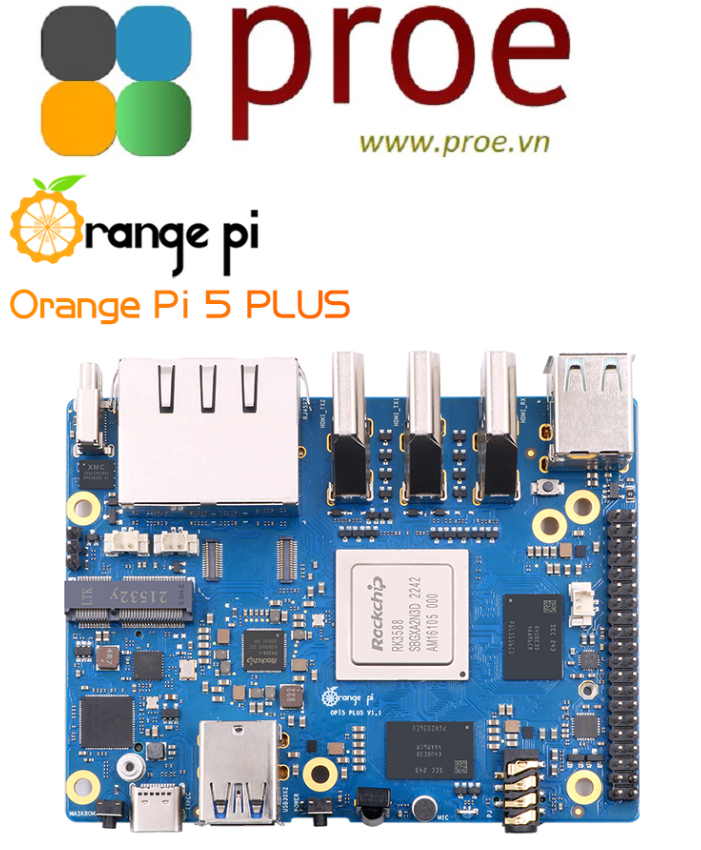

Orange Pi 5 Plus 8GB RAM

Máy tính nhúng SBC (Single Board Computer) Orange Pi 5 plus có kích thước to hơn so với các bo mạch cũ là 100 x 70mm (3.9″ x 2.8″), tích hợp trên đó rất nhiều cổng kết nối. Bo mạch này có:

• 2 cổng USB 3.0 Type-A
• 1 cổng USB 3.1 Gen 1 Type-C (có thể sử dụng như cổng DisplayPort 1.4)
• 1 cổng USB Type-C để cấp nguồn
• 2 cổng USB 2.0
• 2 cổng HDMI 2.1 ports (up to 8K/60fps output)
• 1 cổng HDMI 2.0 input (up to 4K/60fps)
• 1 cổng 3.5mm audio jack
• 2 cổng 2.5 GbE Ethernet LAN

Orange Pi 5 Plus sử dụng chip SOC RK3588 cho phép sử dụng tới 2 cổng HDMI 2.1 đồng thời với 2 cổng mạng 2.5GbE và có tới luôn 2 cổng PCIe, 1 cái eKey cho Wifi-BT và 1 cái M-Key cho ổ cứng SSD NVME.

Cấu hình Orange Pi 5 Plus :

• SoC – Rockchip RK3588
  • CPU – Octa-core processor with 4x Cortex-A76 cores @ up to 2.4 GHz, 4x Cortex-A55 cores @ up to 1.8 GHz
  • Arm Mali-G610 MP4 GPU with support for OpenGL ES1.1/2.0/3.2, OpenCL 2.2, and Vulkan 1.2
  • 6 TOPS AI accelerator with support for INT4/INT8/INT16/FP16 mixed operation
  • VPU – 8Kp60 H.265/VP9/AVS2 10-bit decoder, 8Kp30 H.264 decoder, 4Kp60 AV1 decoder, 8Kp30 H.265/H.264 encoder
• System Memory – 4GB, 8GB, or 16GB LPDDR4/4x
• Storage
  • 16MB or 32MB QSPI NOR Flash
  • MicroSD card slot
  • eMMC flash socket for 32GB, 64GB, 128GB, or 256GB module
  • M.2 2280 PCIe 3.0 x4 socket for NVMe SSDs up to 2,000 MB/s
• Video Output
  • 2x HDMI 2.1 ports up to 8Kp60
  • DisplayPort 1.4 up to 8Kp30 via USB-C port
  • 2x 4-lane MIPI DSI connector up to 4Kp60
  • 6-pin FPC socket for touchscreen
• Video Input
  • Camera I/F – 4-lane MIPI CSI connector
  • HDMI 2.0 input up to 4Kp60
• Audio
  • ES8388 audio codec, AWINIC AW8733ATQR audio amplifier
  • 3.5mm audio jack with headphone and microphone support
  • Onboard MIC
  • Support for HDMI 2.1 eARC
  • Speaker connector
• Networking
  • 2x 2.5GbE RJ45 ports via RTL8125BG controllers
  • Optional WiFi and Bluetooth via M.2 module
• USB – 2x USB 3.0 ports, 1x USB 3.1 Gen 1 (5 Gbps) Type-C port, 2x USB 2.0 ports
• Expansion
  • 40-pin header with GPIO, UART, I2C, SPI, CAN, I2S, PDM, AUDDSM, SDIO, PWM
  • M.2 Key-M socket (PCIe 3.0 x4) for 2280 NVMe SSDs, or other PCIe 2280 modules (e.g. AI accelerators)
  • M.2 Key-E socket (PCIe 2.0 x1/PCM/UART/USB2.0) for 2230 modules such as WiFi 6 and Bluetooth modules
• Debugging – 3-pin UART header for serial console
• Misc
  • Power, MaskROM, and Recovery buttons
  • Power LED, status LED, RGB LED
  • IR receiver
  • 5V fan connector
  • 2-pin connector for RTC backup battery
• Power Supply
  • 5V/4A via USB Type-C port
  • RK806-1 PMU
• Dimensions – 100 x 70 mm (Slightly wider than Orange Pi 5B)
• Weight – 86.5 grams
