PB01 LoRaWAN Button

User Manual -- Online Latest

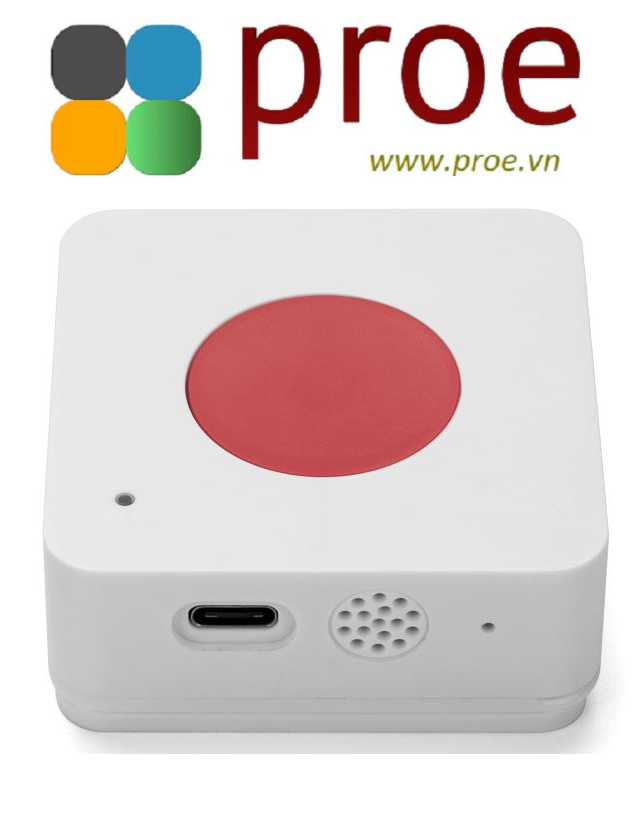

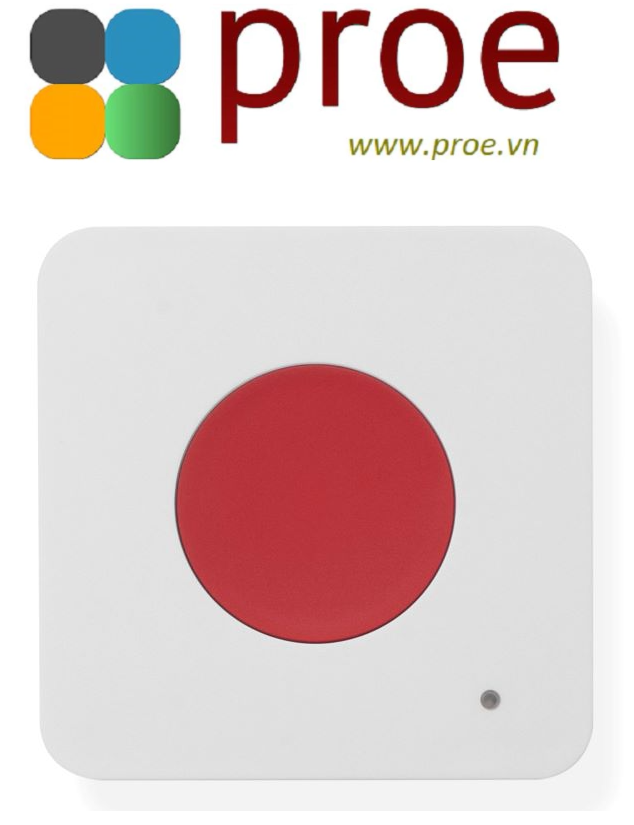

PB01 LoRaWAN Button is a LoRaWAN wireless device with one push button. Once user push the button, PB01 will transfer the signal to IoT server via Long Range LoRaWAN wireless protocol. PB01 also senses the environment temperature & humidity and will also uplink these data to IoT Server.

PB01 supports  2 x AAA batteries and works for a long time up to several years*. User can replace the batteries easily after they are finished.

PB01 has a built-in speaker, it can pronouns different sound when press button and get reply from server. The speaker can by disable if user want it.

PB01 is fully compatible with LoRaWAN v1.0.3 protocol, it can work with standard LoRaWAN gateway.

*Battery life depends how often to send data, please see battery analyzer.

Features:

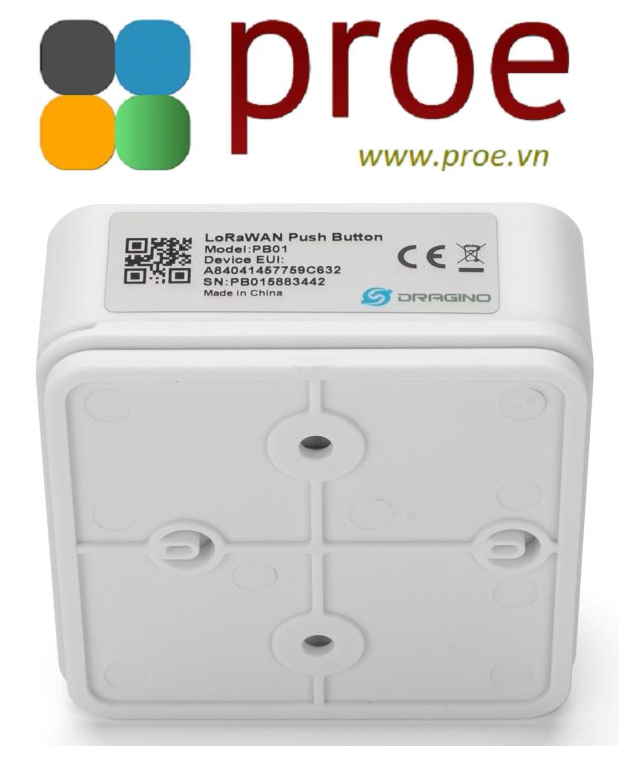

• Wall Attachable.
• LoRaWAN v1.0.3 Class A protocol.
• 1 x push button. Different Color available.
• Built-in Temperature & Humidity sensor
• Built-in speaker
• Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915
• AT Commands to change parameters
• Remote configure parameters via LoRaWAN Downlink
• Firmware upgradable via program port
• Support 2 x AAA LR03 batteries.
• IP Rating: IP52

Applications:

specifications:

Built-in Temperature Sensor:

• Resolution: 0.01 °C
• Accuracy Tolerance: Typ ±0.2 °C
• Long Term Drift: < 0.03 °C/yr
• Operating Range: -10 ~ 50 °C  or -40 ~ 60 °C

Built-in Humidity Sensor:

• Resolution: 0.01 %RH
• Accuracy Tolerance: Typ ±1.8 %RH
• Long Term Drift: < 0.2% RH/yr
• Operating Range: 0 ~ 99.0 %RH(no Dew)
