Pico-DALI2

Package Content

Weight: 0.156 kg

Pico-DALI2 x1

DALI2 expansion Module for ESP32-Pico series boards, Supports DALI communication for customized control of multiple lighting groups

DALI2 expansion Module for ESP32-Pico series

Enabling DALI communication for ESP32-Pico series boards

Features

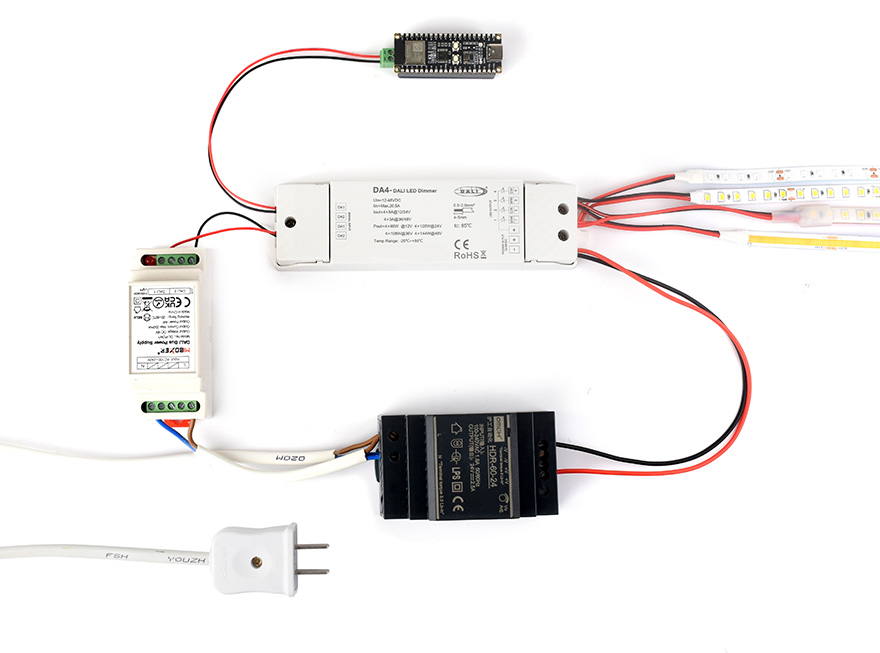

Suitable for ESP32-C6-Pico / ESP32-S3-Pico development boards, supports sending DALI signals to lighting source controllers and achieving customized control of multiple lighting groups

• Compatible with Pico interface, based on the ESP32-C6-Pico header, suitable for ESP32-C6-Pico / ESP32-S3-Pico
• Onboard DALI communication screw terminal for connecting external DALI devices
• Comes with examples for ESP32-S3 / ESP32-C6, enabling customized control through simple modifications

ESP32-C6-Pico header compatibility

ESP32-C6-Pico is NOT included.

What's On Board

Pinout definition

Application Scenarios

* for reference only, please refer to the Package Content for detailed part list

Outline dimensions

Resources & Services

WIKI: www.waveshare.com/wiki/Pico-DALI2
