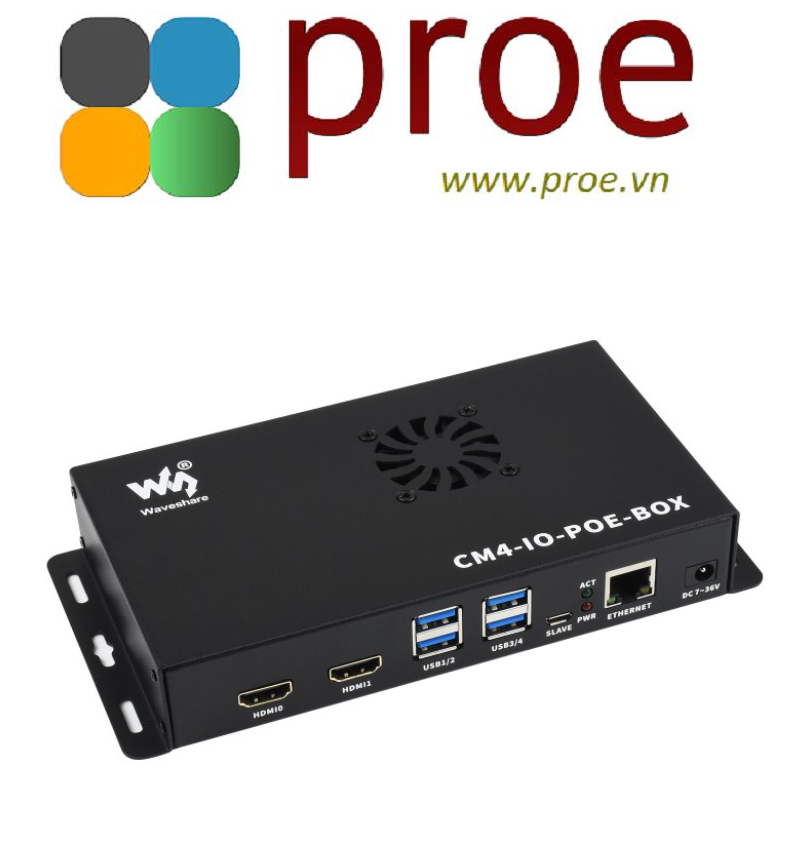

PoE Mini-Computer Based on Raspberry Pi Compute Module 4 (NOT Included), Metal Case, With Cooling Fan

Weight: 0.627 kg

1. Metal case (top and bottom) x1

   PoE Mini-Computer Based On Raspberry Pi Compute Module 4 (NOT Included), Metal Case, With Cooling Fan

   PoE Mini-Computer Based On CM4

   Designed For Raspberry Pi Compute Module 4

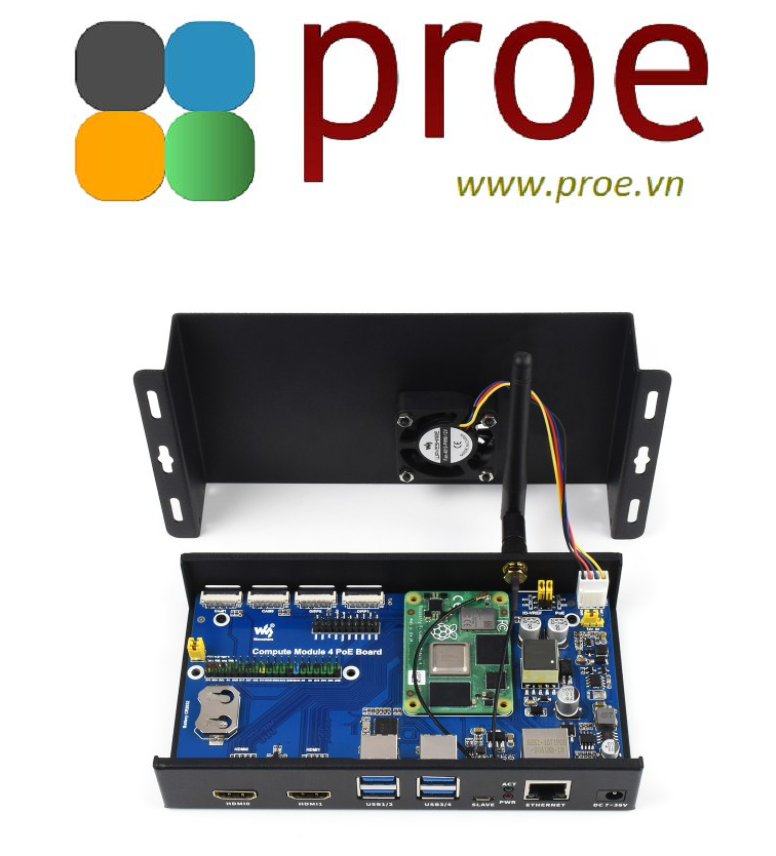

   Waveshare CM4 PoE IO Board Inside, Fast And Easy To Build A Mini-Computer



   Waveshare CM4 PoE IO Board Inside

   Make It Easy To Build Your Own Raspberry Pi CM4 Mini PC



   for reference only, CM4 and antenna are NOT included.

   Comparing The Expansion Boards

   	WAVESHARE CM4 POE IO BOARD	RASPBERRY PI CM4 IO BOARD
   POE	integrates 802.3af-compliant PoE circuit (5V/2.5A)	PoE header only
   USB	4x USB 3.2 Gen1 ports Micro USB port	2x USB 2.0 ports Micro USB port
   ETHERNET	Gigabit Ethernet RJ45 with PoE support	Gigabit Ethernet RJ45 with PoE support
   HEADER	Color-coded 40PIN GPIO header	40PIN GPIO header standard PCIe Gen 2 × 1 socket
   FAN	5V / 12V standard fan connector	12V standard fan connector
   POWER INPUT	7V~36V	12V
   CM4 SOCKET	suitable for all variants of Compute Module 4
   RTC	Real-time clock with battery socket and ability to wake Compute Module 4
   VIDEO	2x MIPI DSI display FPC connectors (22-pin 0.5 mm pitch cable)
   CAMERA	2x MIPI CSI-2 camera FPC connectors (22-pin 0.5 mm pitch cable)
   SD CARD SLOT	MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
   DIMENSIONS	160 × 90mm

   Rich Peripheral Connectors

   Onboard Connectors Including CSI/DSI/RTC/HDMI/USB/ETH/TF Card

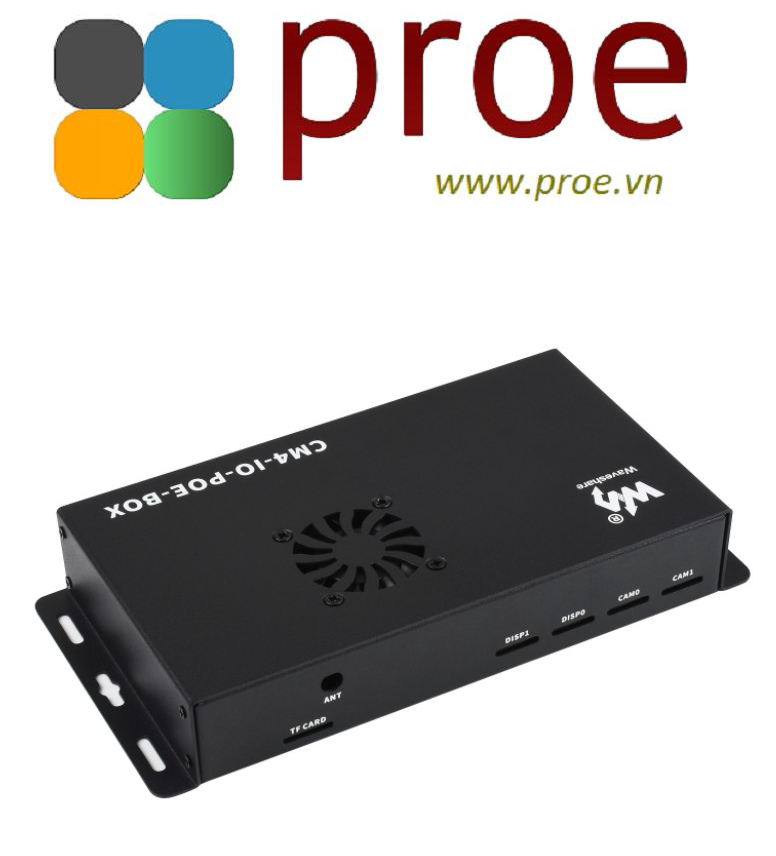

   Precise Cut-Out With Clear Label

   Each Cut-Out Is Completely Aligned With The Connector

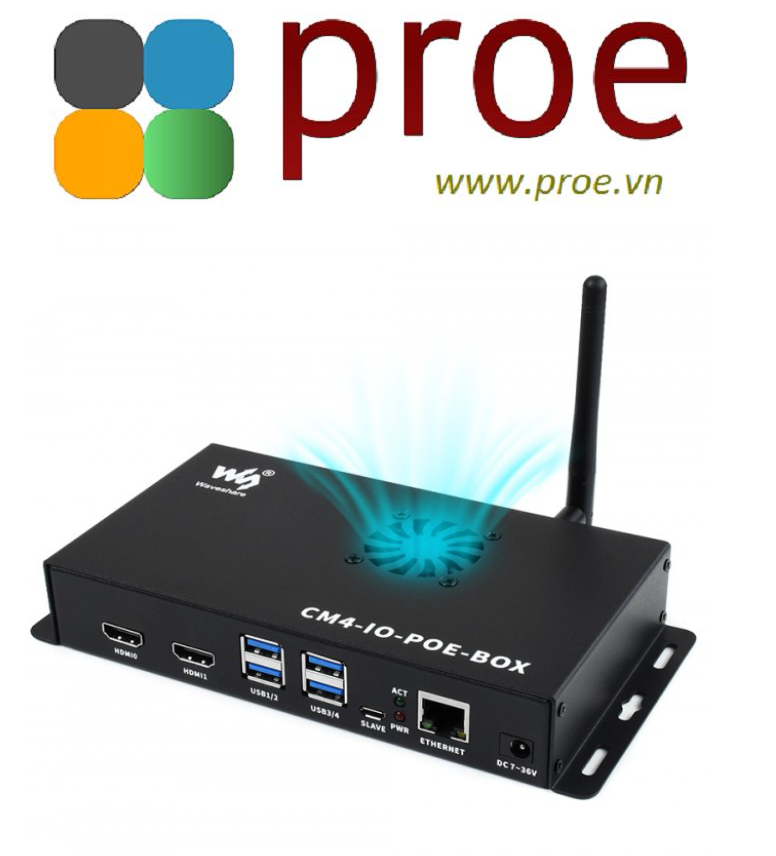

   Cooling Fan Included

   Comes With Cooling Fan, Combined With The Airflow Vent, Better Heat Dissipation



   Wall Mount Support

   Wall Mount Holes On Two Sides, Handy For Mounting



   Application Examples

   Binocular Vision, PoE Powered Raspberry Pi Projects, Or Other Industrial Context



   for reference only, display and cameras are NOT included.

   Outline Dimensions



2. Compute Module 4 PoE Board x1
3. Fan-4010-PWM-12V x1
4. Screwdriver x1
5. Screws pack x1
6. 12V 2A power adapter x1
