Raspberry Pi AI Kit

Overview

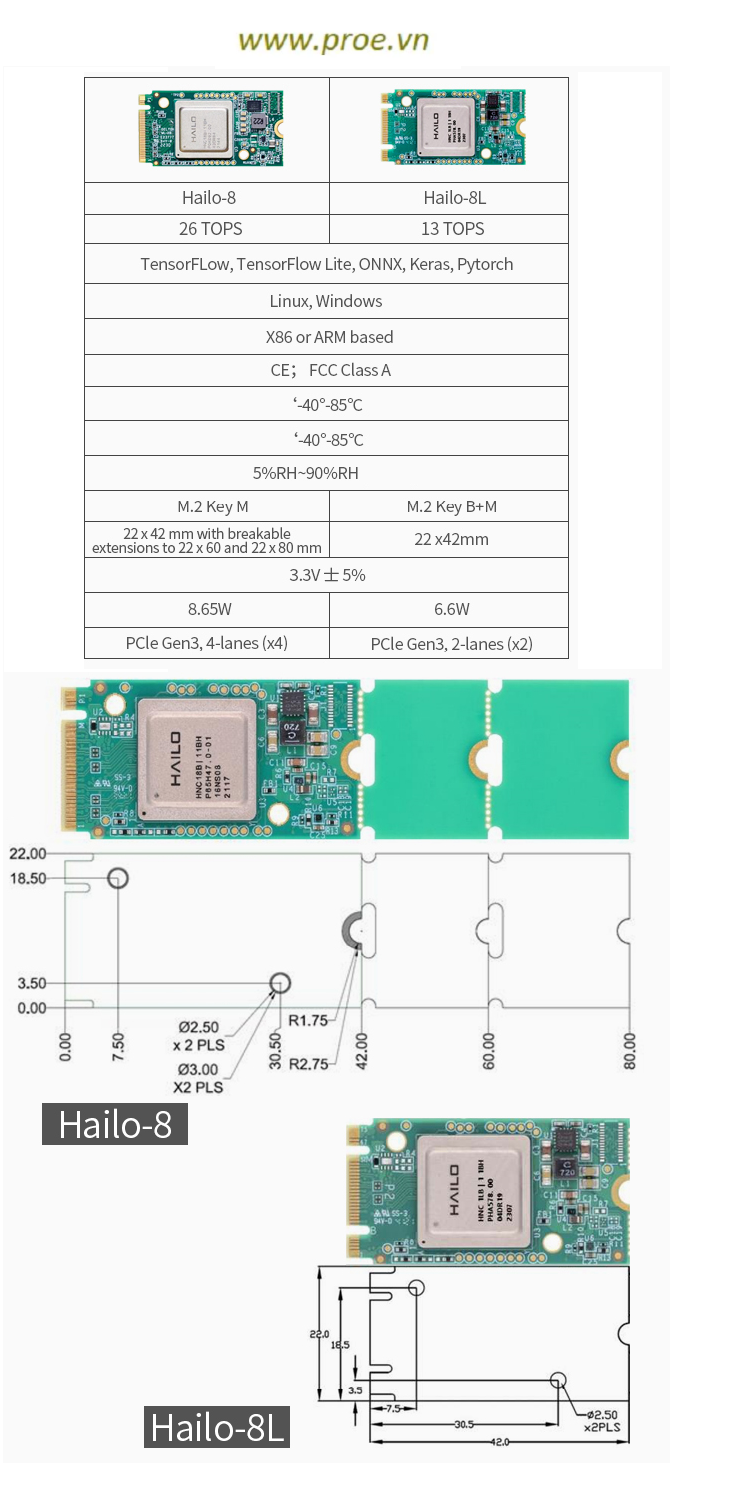

The AI module is a 13 tera-operations per second (TOPS) neural network inference accelerator built around the Hailo-8L chip. The module uses the M.2 2242 form factor, and comes pre-installed in the M.2 HAT+, to which it connects through an M key edge connector. The M.2 HAT+ communicates between the AI module’s M.2 interface and the Raspberry Pi 5’s PCIe 2.0 interface.

When the host Raspberry Pi 5 is running an up-to-date Raspberry Pi OS image, it automatically detects the Hailo module and makes the NPU available for AI computing tasks. The built-in rpicam-apps camera applications in Raspberry Pi OS natively support the AI module, automatically using the NPU to run compatible post-processing tasks.

Specification

Contains a neural network inference accelerator capable of 13 tera-operations per second (TOPS)

Fully integrated into Raspberry Pi’s camera software stack

Thermal pad pre-fitted between module and HAT+ spreads heat across components, improving performance

Conforms to Raspberry Pi HAT+ specification

Supplied with 16mm stacking header, spacers, and screws to enable fitting on Raspberry Pi 5 with Raspberry Pi Active Cooler in place

Documents

• Raspberry Pi AI Kit product brief
• Raspberry Pi AI Kit documentation
