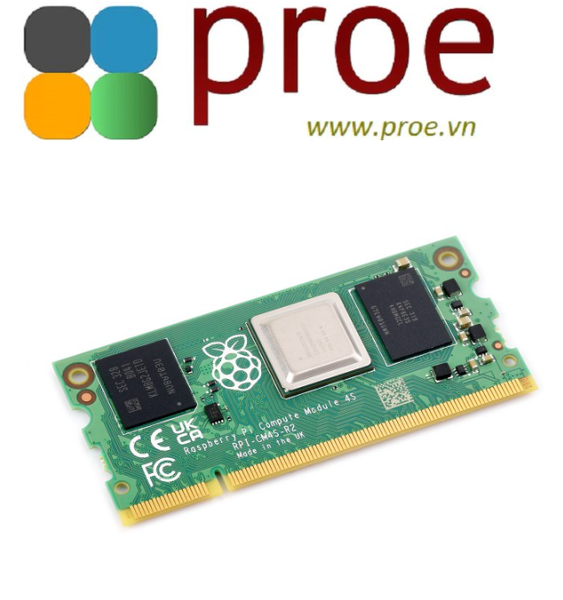

RASPBERRY-PI CM4S08032
Raspberry Pi Compute Module 4 SODIMM, Broadcom BCM2711, 64-bit ARM Cortex-A72 v8, 1.5GHz, 8GB

Compute Module 4S

Based on the Raspberry Pi 4 Model B architecture, Compute Module 4S is intended for industrial customers migrating from Compute Module 3 or 3+, who wish to continue to use the SODIMM form factor or to take advantage of the increased SDRAM capacity.

Specifications

Broadcom BCM2711 quad-core 64-bit Cortex-A72 (Arm v8) at 1.5GHz

1GB, 2GB, 4GB and 8GB LPDDR4-3200 SDRAM with ECC

Options for 8GB, 16GB, or 32GB eMMC flash

Option for 0GB eMMC Flash (CM4SLite only)

1 × USB 2.0 port (high speed)

46 × GPIO signals

1 × SDIO 2.0 (CM4SLite only)

1 × HDMI® 2.0 port (up to 4Kp60 supported)

1 × 2-lane MIPI DSI display interface

1 × 4-lane MIPI DSI display interface

1 × 2-lane MIPI CSI camera interface

1 × 4-lane MIPI CSI camera interface

1 × composite TV out (PAL or NTSC)

H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)

OpenGL ES 3.0 graphics
